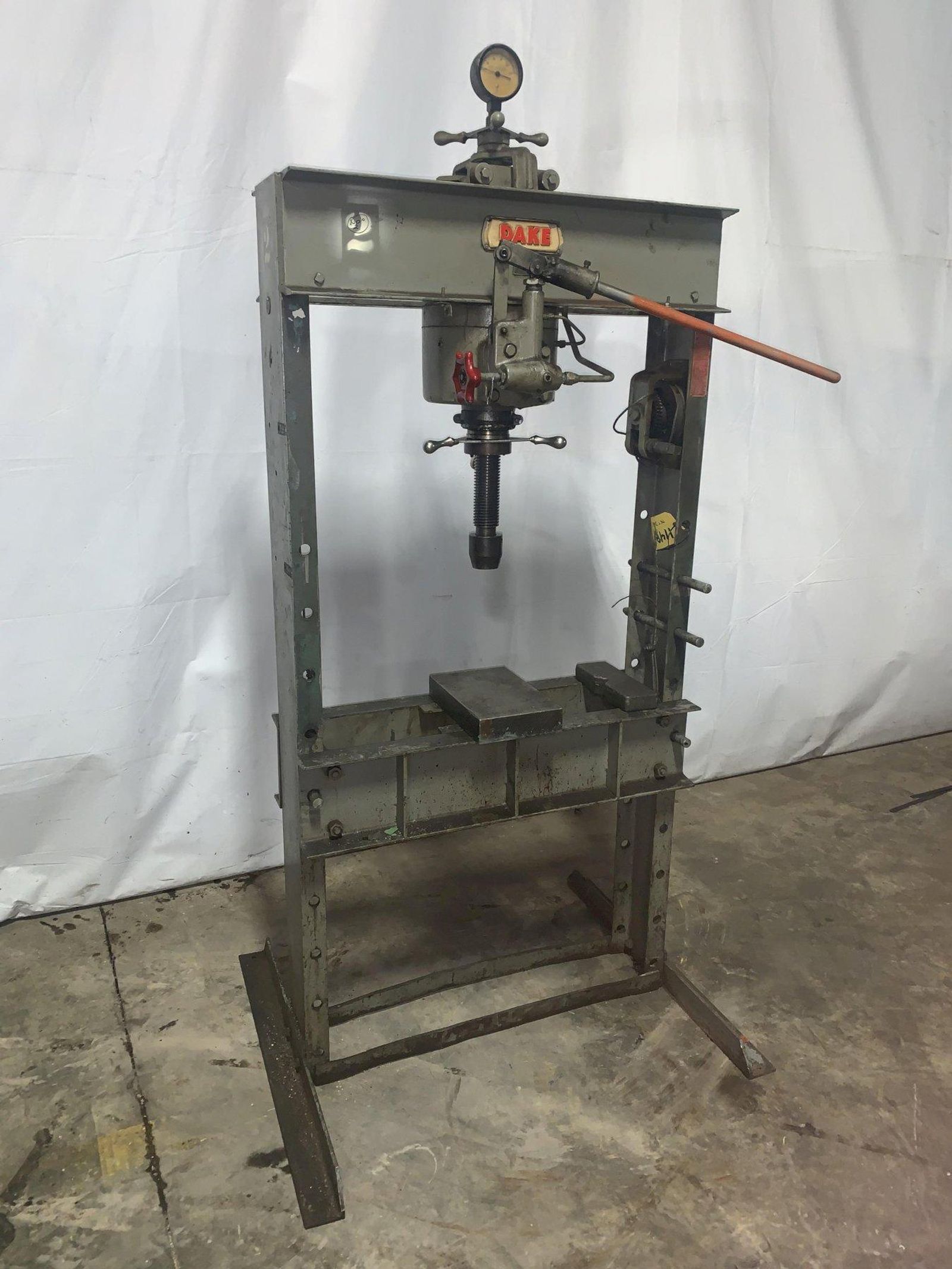

75 TON DAKE MODEL 75H H-FRAME PRESS: STOCK 11481

Stock #: 11481

Equipped With

SERIAL .......................... 155470
MODEL ........................... H75
CAPACITY ........................ 75 TON
DISTANCE BETWEEN THE POST ....... 44"
STROKE OF RAM ................... 4-1/2"
SCREW ADJUSTMENT ................ 7"
WIDTH OF BED CHANNELS ........... 44"
DISTANCE BETWEEN BED CHANNELS ... 8-1/4"
DISTANCE BED TO RAM ............. 0" TO 36"
BED ADJUSTMENT CENTERS .......... 5"
HORIZONTAL TRAVEL OF RAM ........ 28"
HAND PUMP ....................... YES
PRESSURE GAGE ................... YES


Buy Machines

75 TON DAKE MODEL 75H H-FRAME PRESS: STOCK 11481

Stock # 11481

Share Machine
Print Details

Machine Specifications

SERIAL .......................... 155470
MODEL ........................... H75
CAPACITY ........................ 75 TON

DISTANCE BETWEEN THE POST ....... 44"
STROKE OF RAM ................... 4-1/2"
SCREW ADJUSTMENT ................ 7"
WIDTH OF BED CHANNELS ........... 44"
DISTANCE BETWEEN BED CHANNELS ... 8-1/4"
DISTANCE BED TO RAM ............. 0" TO 36"
BED ADJUSTMENT CENTERS .......... 5"
HORIZONTAL TRAVEL OF RAM ........ 28"
HAND PUMP ....................... YES
PRESSURE GAGE ................... YES


Specifications
Dimensions 47”L X 36”W X 89”H
Weight 300 pounds
