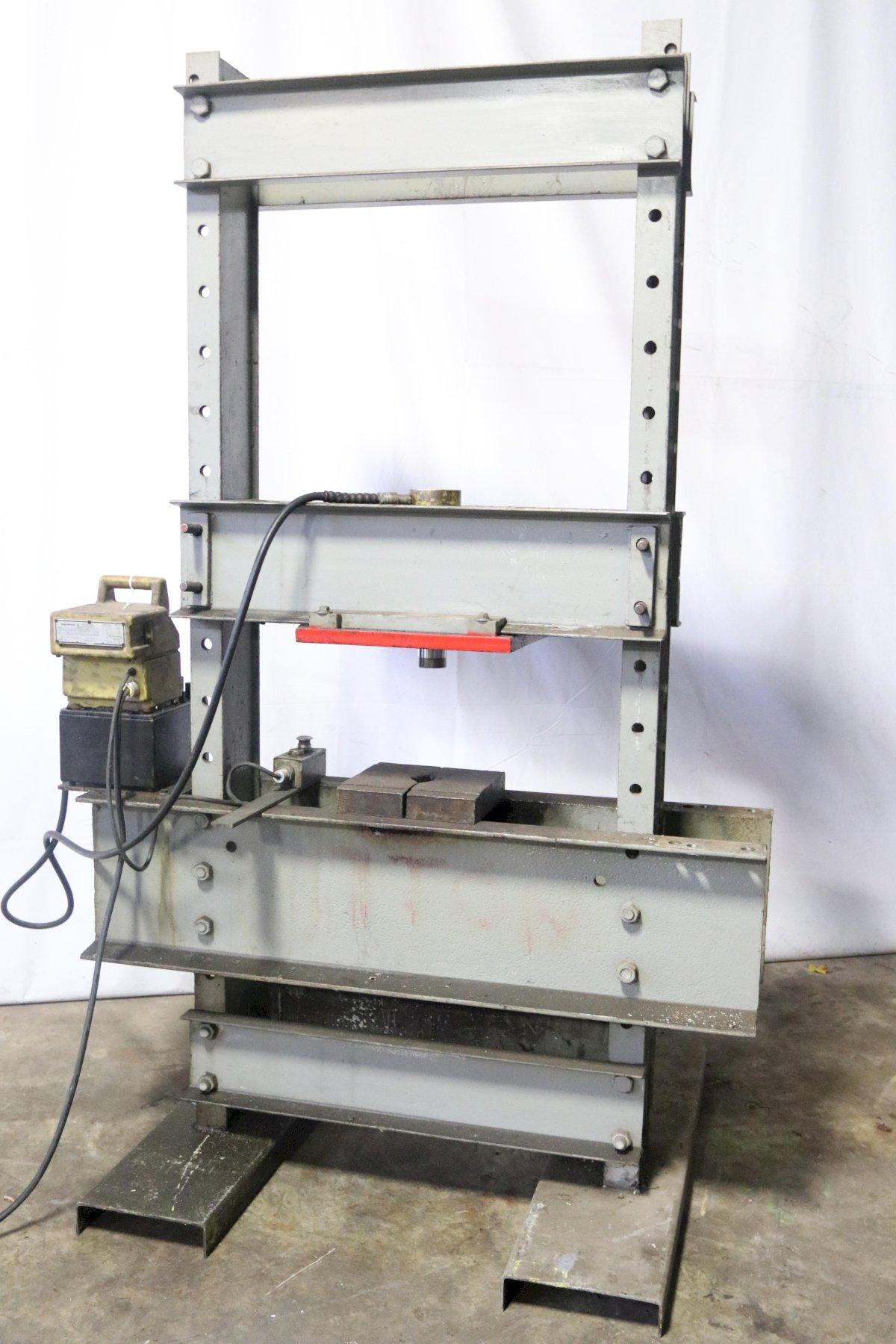

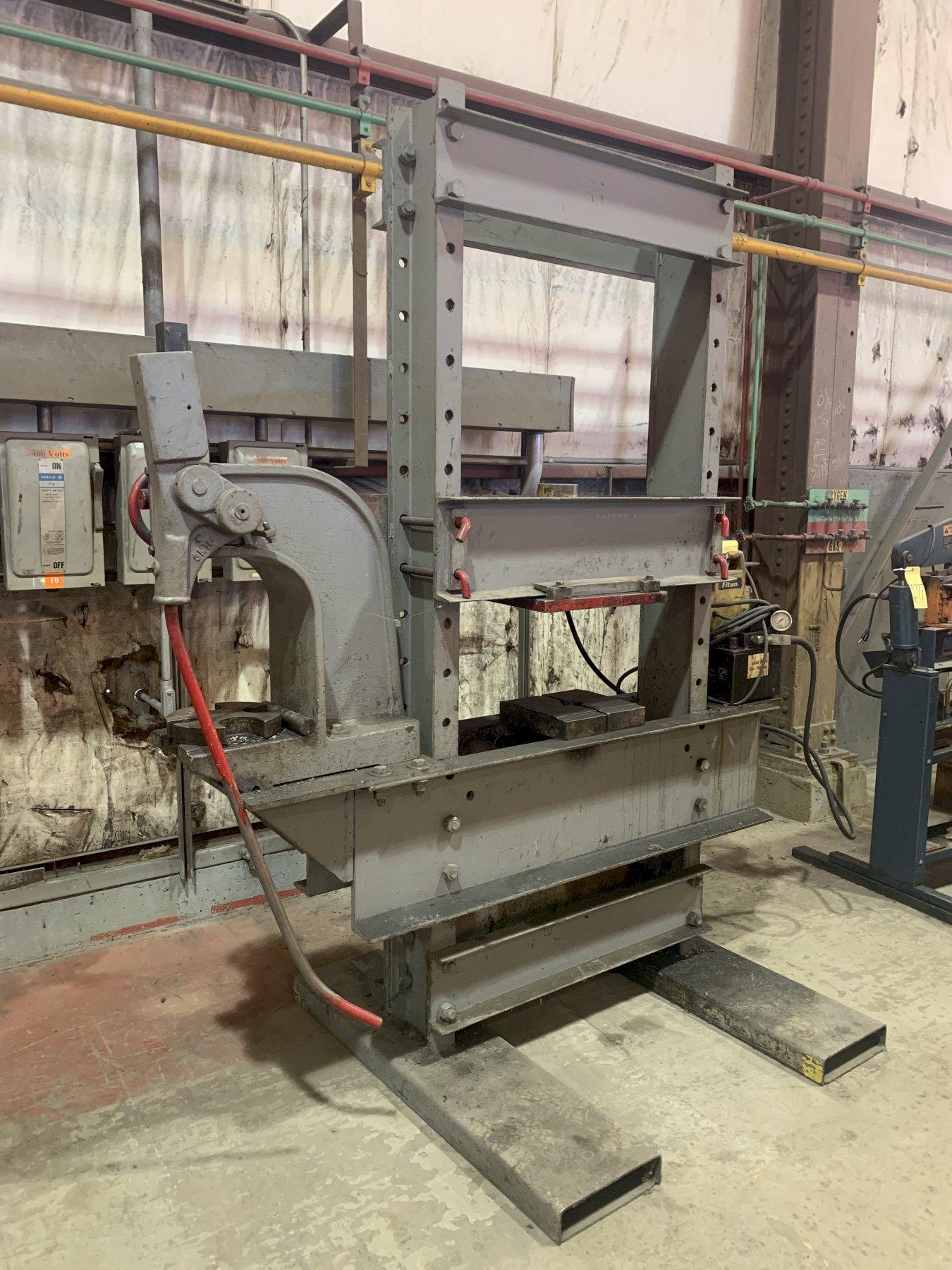

60 TON HEAVY DUTY ENERPAC H-FRAME HYDRAULIC PRESS, SINGLE PHASE 110V: STOCK #11331

Stock #: 11331

Equipped With

SERIAL .......................... 12354
CAPACITY ........................ 60 TONS
STROKE .......................... 7"
VERTICAL BETWEEN FRAME .......... 0" TO 42" ON 5" ADJUSTMENTS
BETWEEN THE HOUSINGS ............ 35"
RAM DIAMETER .................... 2.5"
CYLINDER DIAMETER ............... 7.5"
HORIZONTAL MOVEMENT OF RAM ...... 16"

ENERPAC SELF CONTAINED HYDRAULIC UNIT
SERIAL .......................... 02397C
MODEL ........................... PUD3309B TITAN GENESIS
RESERVOIR CAPACITY .............. 2 GALLON
PSI MAXIMUM ..................... 10,000
POWER ........................... SINGLE PHASE, 110 VOLT
PENDANT CONTROL ................. YES
MOTOR ........................... 1-1/8 HP

Buy Machines

60 TON HEAVY DUTY ENERPAC H-FRAME HYDRAULIC PRESS, SINGLE PHASE 110V: STOCK #11331

Stock # 11331

Share Machine
Print Details

Machine Specifications

SERIAL .......................... 12354
CAPACITY ........................ 60 TONS
STROKE .......................... 7"
VERTICAL BETWEEN FRAME .......... 0" TO 42" ON 5" ADJUSTMENTS
BETWEEN THE HOUSINGS ............ 35"
RAM DIAMETER .................... 2.5"
CYLINDER DIAMETER ............... 7.5"
HORIZONTAL MOVEMENT OF RAM ...... 16"

ENERPAC SELF CONTAINED HYDRAULIC UNIT
SERIAL .......................... 02397C
MODEL ........................... PUD3309B TITAN GENESIS
RESERVOIR CAPACITY .............. 2 GALLON
PSI MAXIMUM ..................... 10,000
POWER ........................... SINGLE PHASE, 110 VOLT
PENDANT CONTROL ................. YES
MOTOR ........................... 1-1/8 HP

Videos
Specifications
Dimensions 60"X 48" X 100" H
