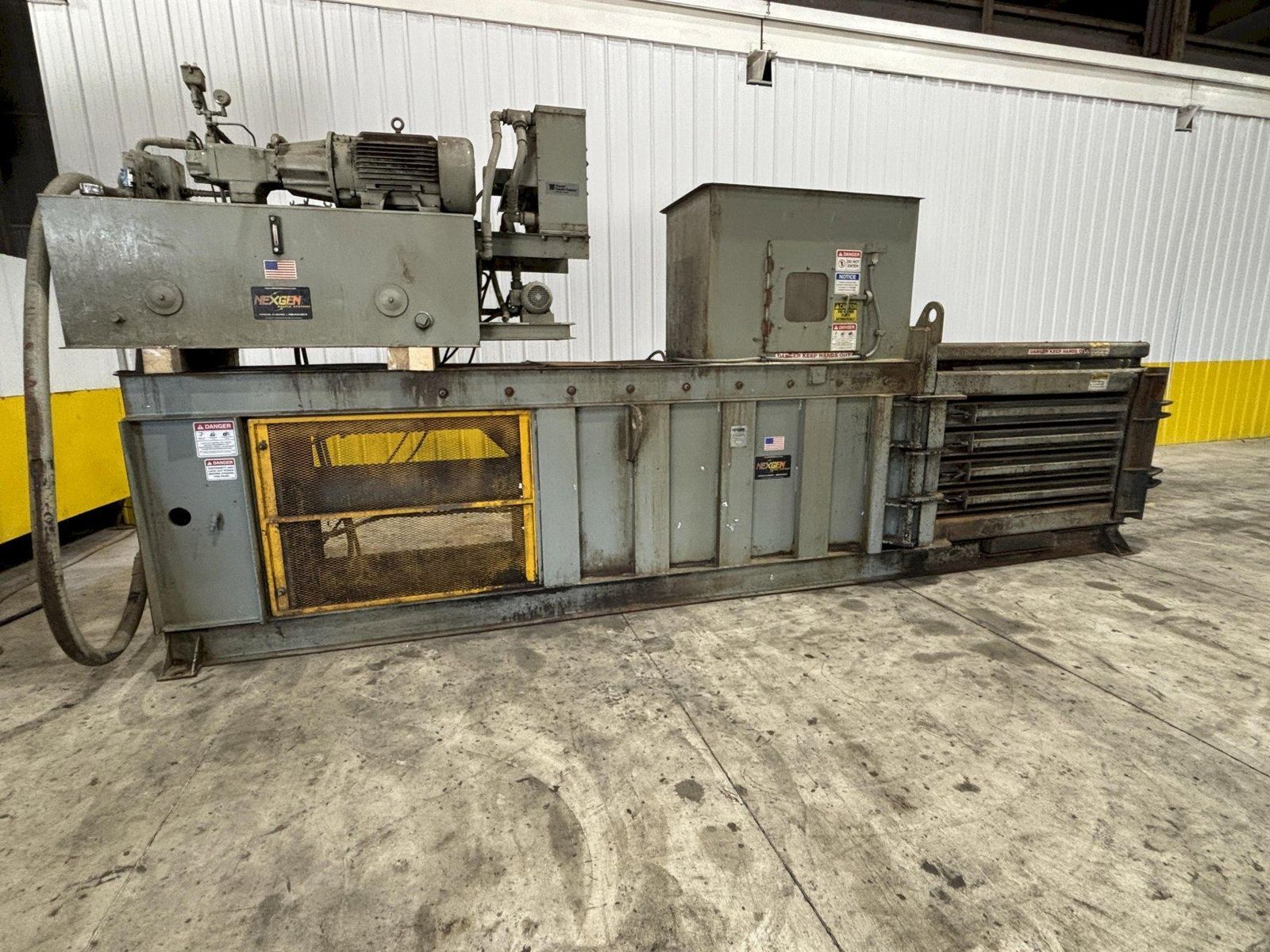

SERIAL .............. 157868
MODEL ............... SE-503042-950A
YEAR NEW ............ 2004
DESIGN .............. SIDE EJECT
BALE LENGTH ......... 60"
BALE WIDTH .......... 32"
BALE HEIGHT ......... 42"
CYCLE TIME .......... 21 SECONDS
PLATEN FORCE ........ 159,000 LBS
PLATEN PRESSURE ..... 133 PSI
RAM BORE ............ 9"
RAM ROD DIAMETER .... 6"
RAM STROKE .......... 78"
FEED OPENING ........ 50-1/2" X 39-3/4"
BALE TIE OFF ........ MANUAL
MOTOR ............... 50 HP
Brand
MARATHON
Type
Crushers
Stock No.
21681
 |
419-269-2000 |
Stock #: 21681
SERIAL .............. 157868
MODEL ............... SE-503042-950A
YEAR NEW ............ 2004
DESIGN .............. SIDE EJECT
BALE LENGTH ......... 60"
BALE WIDTH .......... 32"
BALE HEIGHT ......... 42"
CYCLE TIME .......... 21 SECONDS
PLATEN FORCE ........ 159,000 LBS
PLATEN PRESSURE ..... 133 PSI
RAM BORE ............ 9"
RAM ROD DIAMETER .... 6"
RAM STROKE .......... 78"
FEED OPENING ........ 50-1/2" X 39-3/4"
BALE TIE OFF ........ MANUAL
MOTOR ............... 50 HP
