Machine Information

72" x 10.00" x 60,000 LB CINCINNATI DRIVEN LOOP SLITTING LINE: STOCK #14052

Stock #: 14052

Equipped With

MATERIALS:
COIL WIDTH RANGE ................. 12" - 72"
THICKNESS RANGE .................. 0.024 - 0.375"
MAX SHEAR ........................ 45,000 PSI
MAX YIELD ........................ 45,000 PSI
MAX COIL WEIGHT .................. 60,000#
COIL I.D. (Entry) ................ 20" - 24"
COIL I.D. (Exit) ................. 20" & 24"
MAX COIL O.D. .................... 72"
LINE DIRECTION ................... L TO R
MODE OF OPERATION ................ PULL THRU/SLITTER ASSIST
APPROX LINE SPEEDS ............... 100/200/300 FPM @ 24"DIA BARE DRUM SPEED
REQUIRED FLOOR SPACE ............. 50' x 90' (approx.)

CONSISTING OF:
ENTRY TURNSTILE:
(3) ARMS X 60,000 LBS PER ARM
POWERED ROTATION
SLOTTED FOR C-HOOKS
ENTRY COIL CAR:
MAST TYPE
FLOOR MOUNTED
SELF CONTAINED HYD UNIT
POWERED LIFT & TRAVERSE
CABLE REEL

UNCOILER:
SINGLE MANDREL TYPE
POWERED EXPANSION
HOLD-DOWN WITH POWERED SNUBBER ROLL
WICHITA WATER COOLED BRAKE WITH COOLER
SLIDE BASE
FEED-UP DRIVE

ENTRY UNIT:
EXTENDING BLADE TYPE PEELER
ENTRY PASS-LINE ROLL
MANUAL SIDE GUIDES
POWERED ENTRY PINCH ROLLS
CROP SHEAR-DOWN-CUT TYPE
CARRY-OVER TABLE

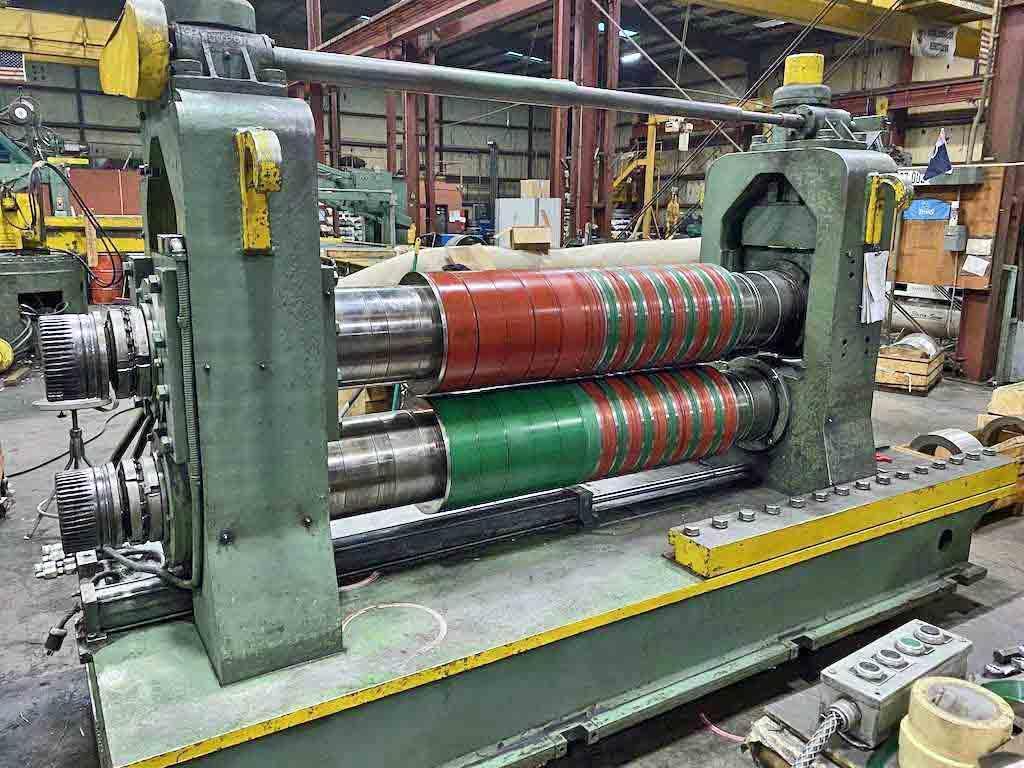

(2) SLITTER HEADS:
CRANE REMOVABLE TYPE
10" DIAMETER ARBORS
POWERED OUTBOARD RETRACTION
POWERED TOP ARBOR ADJUST
OVER THE ARBOR DESIGN TO SLIT 36"-72" WIDTHS

STATIONARY SLITTER DRIVE BASE:
DC MOTOR ...................... 75 HP/650/1950 RPM
H & S SPEED REDUCER ........... 27.43:1 RATIO

POWERED HEAD LOCK

PIT SECTION:
MOUNTED TO TENSION STAND
ENTRY PASS-LINE ROLL
CARRY-OVER TABLE


COIL PRO TENSION STAND:
YEAR .......................... 2000
DRAG TYPE
CLAM SHELL OPENING
SEPARATOR ARM ON SLIDE-OUT FRAME
INTERNAL DEFLECTOR ROLLS
EXIT CROP SHEAR ............... DOWN-CUT TYPE
RECOILER FEED TABLE

(2) SCRAP WINDERS:
AUTOMATIC SCRAP DUMP
LEVEL WIND

RECOILER:
CHICAGO RECOILER DRUM
YEAR ........................ 2008
DRUM DIAMETER ............... 20"
HYD EXPANSION & GRIPPER
HYD PUSHOFF
INTERNAL GEAR REDUCTION ..... 50"1 (APPROX)
DC MOTOR .................... 100HP/650/1950RPM
DRIVE-ALL REDUCER W/(3) SPEEDS
RATIO
BOLT-ON RISERS............... 24" ID

OVERARM SEPARATOR ASSEMBLY:
FLOOR MOUNTEd
BANDING ASSIST ARM

EXIT COIL CAR:
MAST TYPE
FLOOR MOUNTED
SELF-CONTAINED HYD UNIT
POWERED LIFT & TRAVERSE
NARROW COIL RETAINING TRACKS
CABLE REEL



ENTRY TURNSTILE:
(2) ARMS X 60,000 LBS PER ARM
POWERED ROTATION
POWERED PUSH-OFF
SLOTTED FOR C-HOOKS

ELECTRICAL CONTROLS:
YEAR ....................... 2006
MAIN OPERATORS CONTROL PANEL W/TOUCH SCREEN CONTROL
AC/DC CONTROL CABINETS
EURTHERM 590+ DC DRIVES

HYDRAULIC SYSTEM:

TOOLING:
SHIMLESS
MULTIPLE SETS OF TOOLING
KNIVES
1" KNIVES NEW IN 2019 (NEVER USED)
STEEL SPACERS
RUBBERS
SEPARATOR TOOLING

NEW AC/DC CONTROLS ADDED IN 2006 @ $125,000 (APPROX)
NEW CHICAGO RECOILER DRUM ADDED IN 2008 @ $150,000 (APPROX)
LINE INSTALLED
