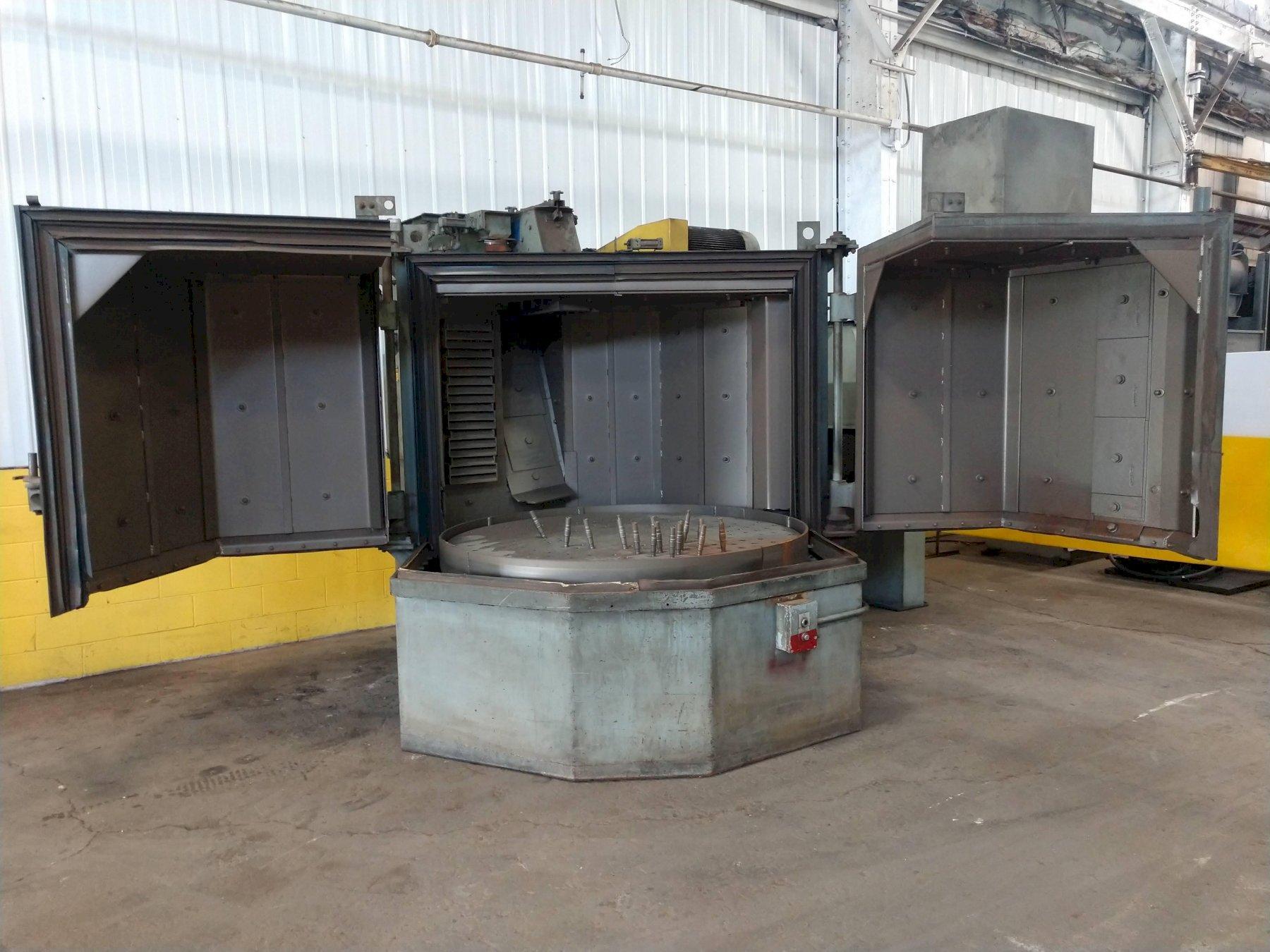

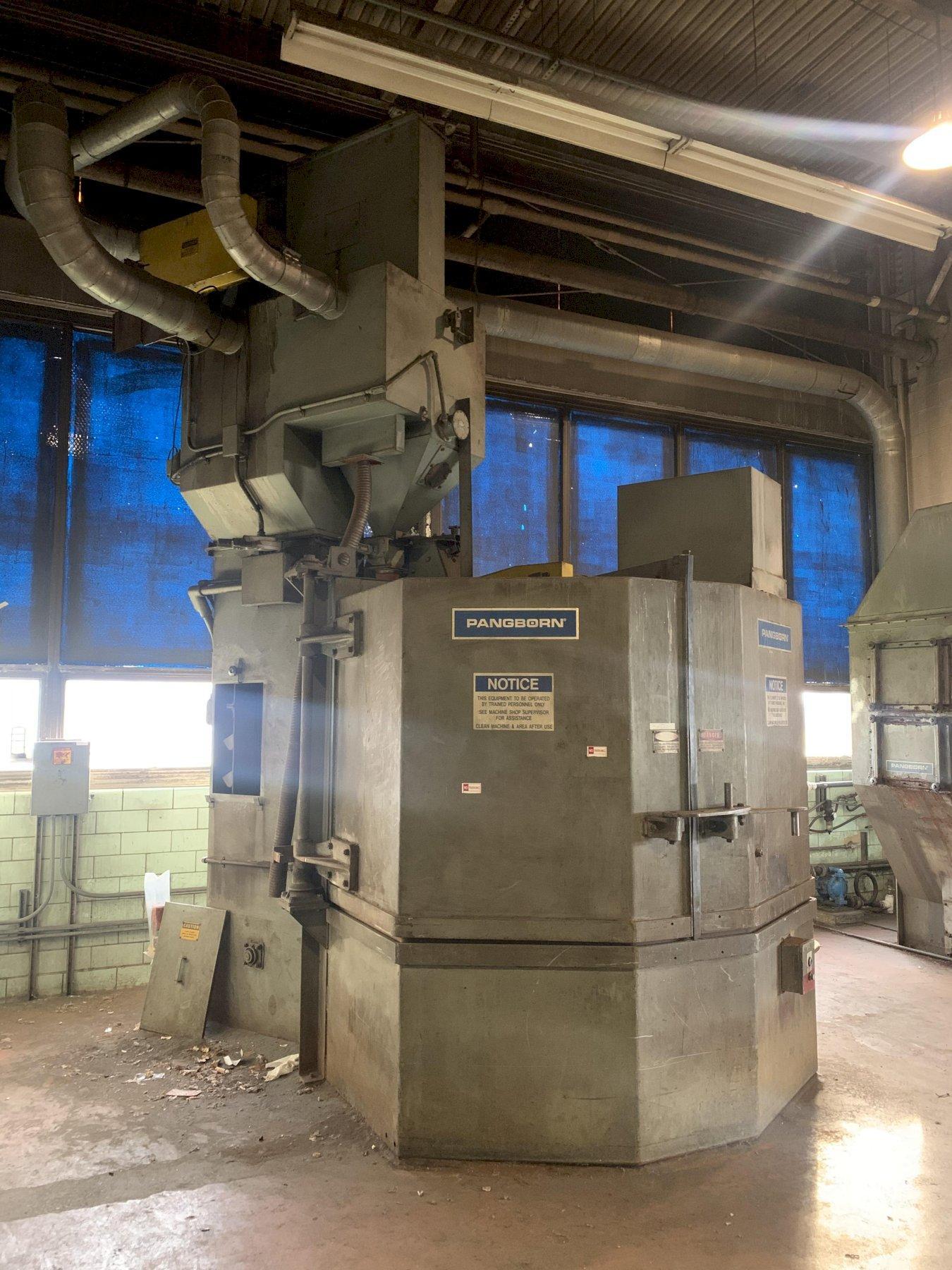

72" PANGBORN MODEL #6LK ROTARY TABLE TYPE BLAST MACHINE W/DUST COLLECTOR: STOCK #12610

Stock #: 12610

Equipped With

MODEL ....................... 6LK-9
YEAR NEW .................... 1985
NUMBER OF BLAST WHEELS ...... 1
BLAST WHEEL DIAMETER ........ 15"
BLAST WHEEL MOTOR ........... 25 HP
DIAMETER OF TABLE ........... 72"
PART WORKING HEIGHT ......... 40" MAXIMUM
LOAD HEIGHT OF TABLE  ....... 34"
TABLE CAPACITY .............. 5000 LBS
ABRASIVE FLOW ............... 28,750 LBS PER HOUR
ABRASIVE VELOCITY ........... 295 FT PER SECOND
FLOOR STANDING .............. YES
SHOT RECLAIM WITH ELEVATOR .. YES
PANGBORN DUST COLLECTOR ..... YES


Buy Machines

72" PANGBORN MODEL #6LK ROTARY TABLE TYPE BLAST MACHINE W/DUST COLLECTOR: STOCK #12610

Stock # 12610

Share Machine
Print Details

Machine Specifications

MODEL ....................... 6LK-9
YEAR NEW .................... 1985
NUMBER OF BLAST WHEELS ...... 1
BLAST WHEEL DIAMETER ........ 15"
BLAST WHEEL MOTOR ........... 25 HP
DIAMETER OF TABLE ........... 72"
PART WORKING HEIGHT ......... 40" MAXIMUM
LOAD HEIGHT OF TABLE  ....... 34"
TABLE CAPACITY .............. 5000 LBS
ABRASIVE FLOW ............... 28,750 LBS PER HOUR
ABRASIVE VELOCITY ........... 295 FT PER SECOND
FLOOR STANDING .............. YES
SHOT RECLAIM WITH ELEVATOR .. YES
PANGBORN DUST COLLECTOR ..... YES


Files
12609.pdf
Specifications
Dimensions 9'6" X 9'6" X 15' HIGH. CAN REMOVE ELEVATOR FOR SHIPPING @ 110" HIGH.
Weight 15000 pounds
