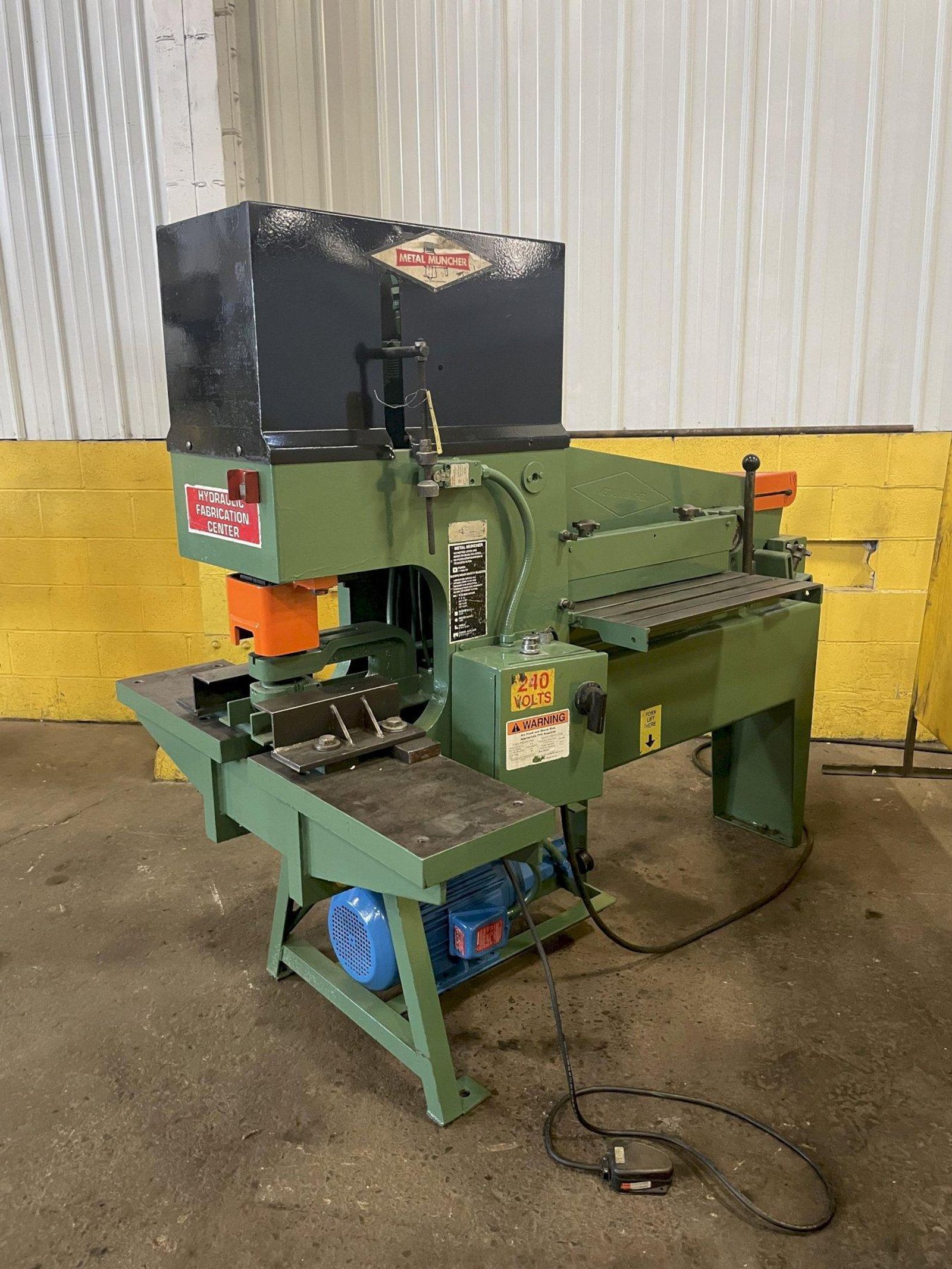

70 TON METAL MUNCHER MODEL #MM-70 HYDRAULIC IRONWORKER: STOCK #15403

Stock #: 15403

Equipped With

SERIAL ............................. 35320498
MODEL .............................. MM-70
MILD STEEL ......................... 60,000 PSI TENSILE
DEPTH OF THROAT .................... 9"
OPEN HEIGHT ........................ 14"
STROKE LENGTH ...................... 7"
RAM SHAFT DIAMETER ................. 13"
STROKES PER MIN .................... 40 @ 1/2
PLATEN TABLE SIZE .................. 11"D X 48"W
WORK STATION HEIGHT ................ 30" APPROX

PUNCH:
CAPACITY ........................... 70 TON
MAX MATERIAL ....................... 1" THRU 7/8"
MAX HOLE (WITH SPECIAL TOOLING) .... 4-1/2" THRU 3/16"

24" PLATE SHEAR:
HIGH PERFORMANCE BLADE INCREASES FLAT BAR SHEARING CAPACITY: 1"X7", 3/4"X12", 3/8"X20", 1/4"X24"

ANGLE SHEAR ........................ 4"X4"X3/8" STD 6"X6"X1/2"
COPPER NOTCHER ..................... 3"X3"X3/8"
HYDRAULICS ......................... 7.5PUMP GPM / 3700PSI
MOTOR STD .......................... 7.5HP/3PH/1800RPM


Buy Machines

70 TON METAL MUNCHER MODEL #MM-70 HYDRAULIC IRONWORKER: STOCK #15403

Stock # 15403

Share Machine
Print Details

Machine Specifications

SERIAL ............................. 35320498
MODEL .............................. MM-70
MILD STEEL ......................... 60,000 PSI TENSILE
DEPTH OF THROAT .................... 9"
OPEN HEIGHT ........................ 14"
STROKE LENGTH ...................... 7"
RAM SHAFT DIAMETER ................. 13"
STROKES PER MIN .................... 40 @ 1/2
PLATEN TABLE SIZE .................. 11"D X 48"W
WORK STATION HEIGHT ................ 30" APPROX

PUNCH:
CAPACITY ........................... 70 TON
MAX MATERIAL ....................... 1" THRU 7/8"
MAX HOLE (WITH SPECIAL TOOLING) .... 4-1/2" THRU 3/16"

24" PLATE SHEAR:
HIGH PERFORMANCE BLADE INCREASES FLAT BAR SHEARING CAPACITY: 1"X7", 3/4"X12", 3/8"X20", 1/4"X24"

ANGLE SHEAR ........................ 4"X4"X3/8" STD 6"X6"X1/2"
COPPER NOTCHER ..................... 3"X3"X3/8"
HYDRAULICS ......................... 7.5PUMP GPM / 3700PSI
MOTOR STD .......................... 7.5HP/3PH/1800RPM


Videos
Specifications
Dimensions 48"W X 74"L X 72"H
Weight 3450 pounds
