Machine Information

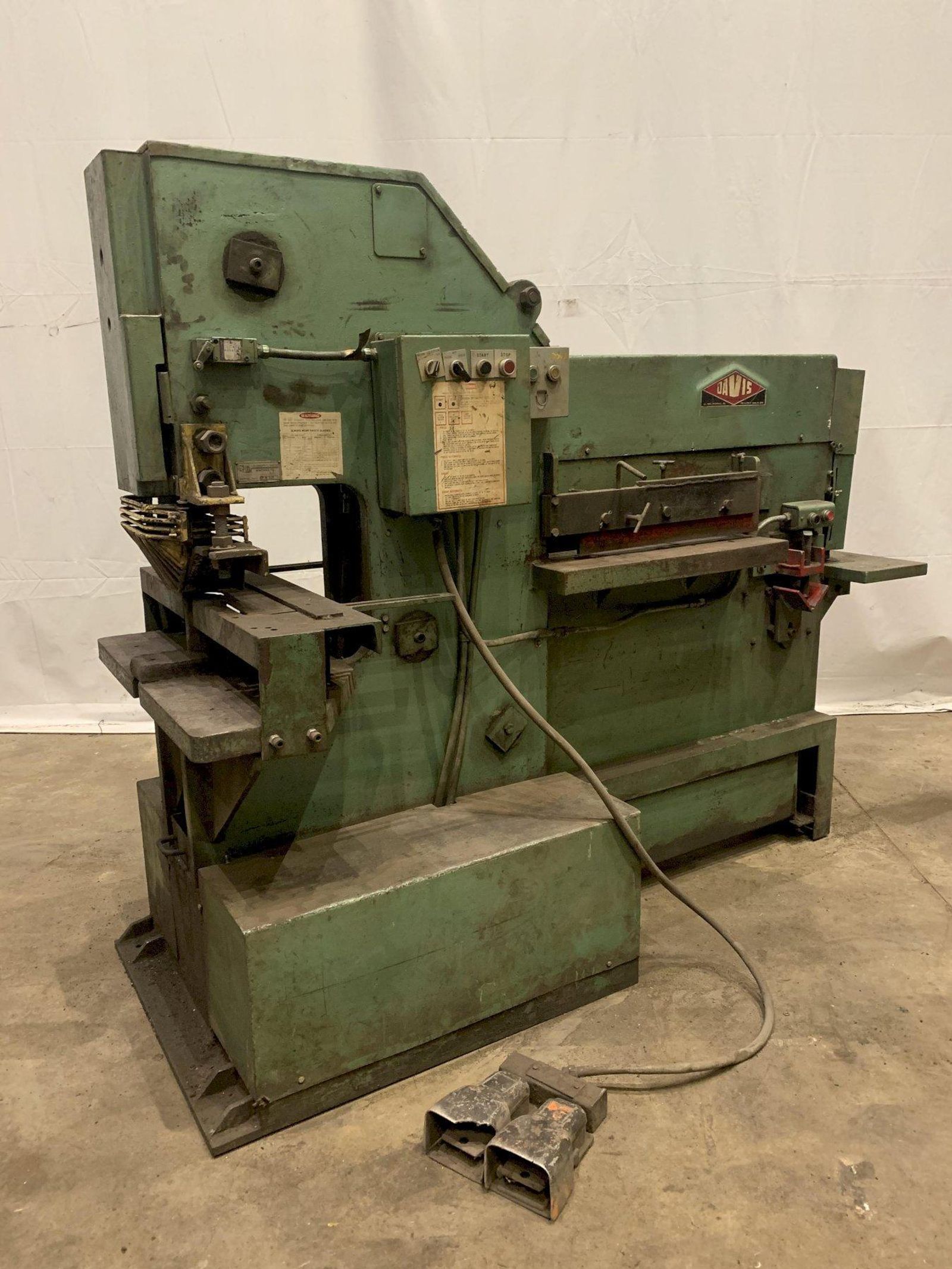

70 TON DAVIS MODEL #M150A HYDRAULIC IRONWORKER: STOCK #12190

Stock #: 12190

Equipped With

SERIAL ...................... 118963
MODEL........................ M150A
CAPACITY .................... 70 TON
PUNCHING CAPACITY ........... 1-3/16" IN 3/4"
AREA OF BED ................. 36" X 10"
DEPTH OF THROAT ............. 14-1/2"
SHEAR FLATS ................. 24" X 1/4" TO 6" X  1"
LENGTH OF BLADES ............ 24
STROKE ...................... 6"
ANGLE SHEAR CAPACITY  ....... 4" X 4" X 3/8"
ROUND BARS .................. 1-3/8"
SQUARE BARS ................. 1-1/4"
COPING ...................... 2-1/4" X 3" X 3/8"
STROKES PER MINUTE  ......... 30
TWO FOOT PEDALS ............. YES
DUAL RAMS ................... YES
MOTOR ....................... 7-1/2 HORSEPOWER
