Machine Information

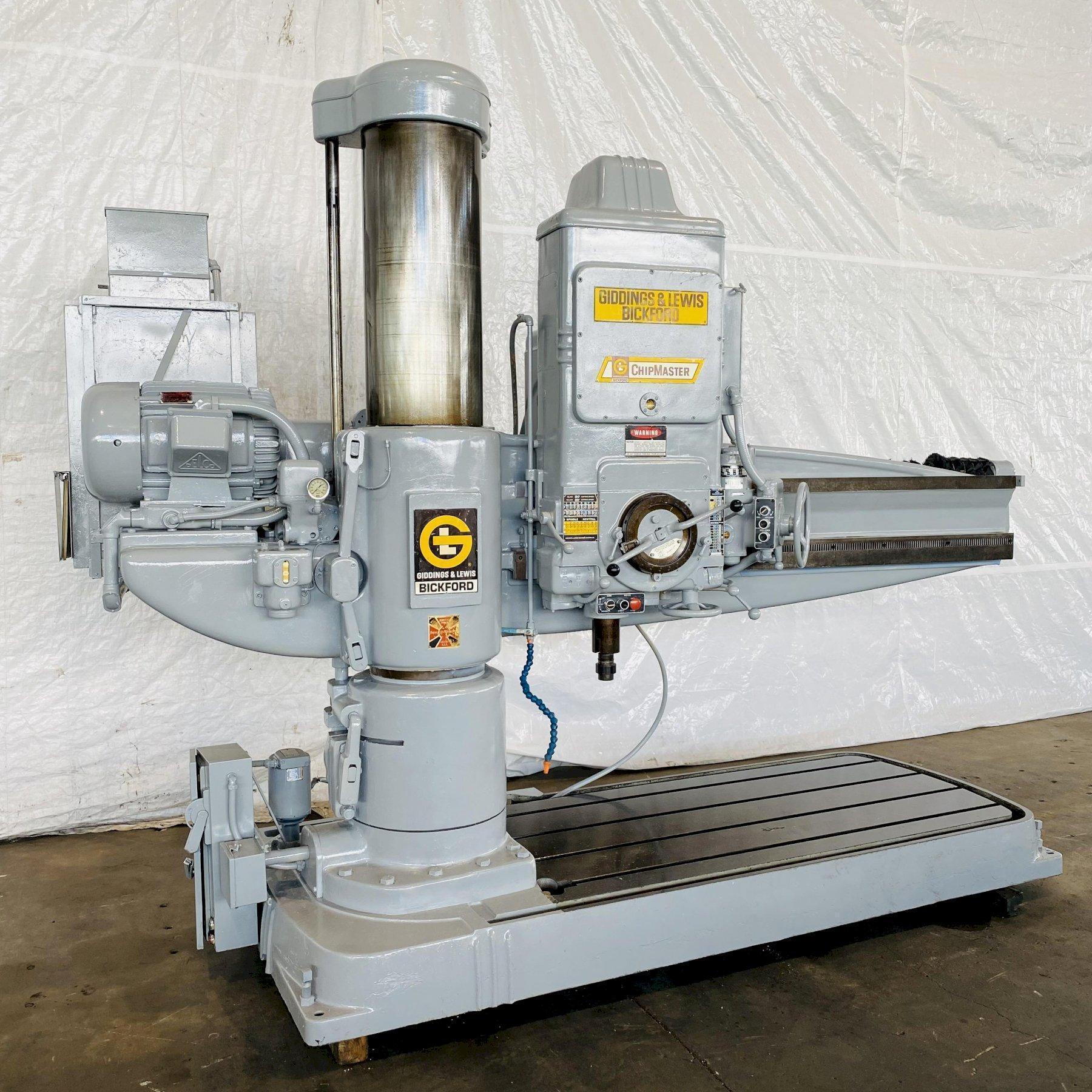

6’ x 15" GIDDINGS & LEWIS BICKFORD CHIPMASTER RADIAL ARM DRILL: STOCK 14812

Stock #: 14812

Equipped With

SERIAL...................................... 954-00259-80
LENGTH OF ARM............................... 7'
DIAMETER OF COLUMN.......................... 15"
VERTICAL TRAVEL OF ARM...................... 35.25"
MINIMUM DISTANCE, SPINDLE TO COLUMN FACE.... 14"
MAXIMUM DISTANCE SPINDLE TO COLUMN BASE..... 18" TO 67"
SPINDLE..................................... #5 Morse Taper
SPINDLE TRAVEL.............................. 18"
SPINDLE SPEEDS.............................. 8 TO 1000 RPM
SPINDLE FEEDS............................... (9) .006 TO .125 IPR
POWER CLAMPING.............................. YES
POWER RAPID TRAVERSE........................ YES
RAPID TRAVERSE ON HEAD...................... YES
MACHINE BASE ............................... 84" X 42”
L-BASE DIMENSIONS .......................... 64" X 42"
MAIN DRIVE MOTOR ........................... 20 HP

L-BASE BOX TABLE: 30"L X 24"W X 20"H
TILTING BOX TABLE: 28L” x 24W” x 20"H

Buy Machines

6’ x 15" GIDDINGS & LEWIS BICKFORD CHIPMASTER RADIAL ARM DRILL: STOCK 14812

Stock # 14812

Share Machine
Print Details

Machine Specifications

SERIAL...................................... 954-00259-80
LENGTH OF ARM............................... 7'
DIAMETER OF COLUMN.......................... 15"
VERTICAL TRAVEL OF ARM...................... 35.25"
MINIMUM DISTANCE, SPINDLE TO COLUMN FACE.... 14"
MAXIMUM DISTANCE SPINDLE TO COLUMN BASE..... 18" TO 67"
SPINDLE..................................... #5 Morse Taper
SPINDLE TRAVEL.............................. 18"
SPINDLE SPEEDS.............................. 8 TO 1000 RPM
SPINDLE FEEDS............................... (9) .006 TO .125 IPR
POWER CLAMPING.............................. YES
POWER RAPID TRAVERSE........................ YES
RAPID TRAVERSE ON HEAD...................... YES
MACHINE BASE ............................... 84" X 42”
L-BASE DIMENSIONS .......................... 64" X 42"
MAIN DRIVE MOTOR ........................... 20 HP

L-BASE BOX TABLE: 30"L X 24"W X 20"H
TILTING BOX TABLE: 28L” x 24W” x 20"H

Specifications
Dimensions 11'4"L X 5'W X 110"H
Weight 18000 pounds
