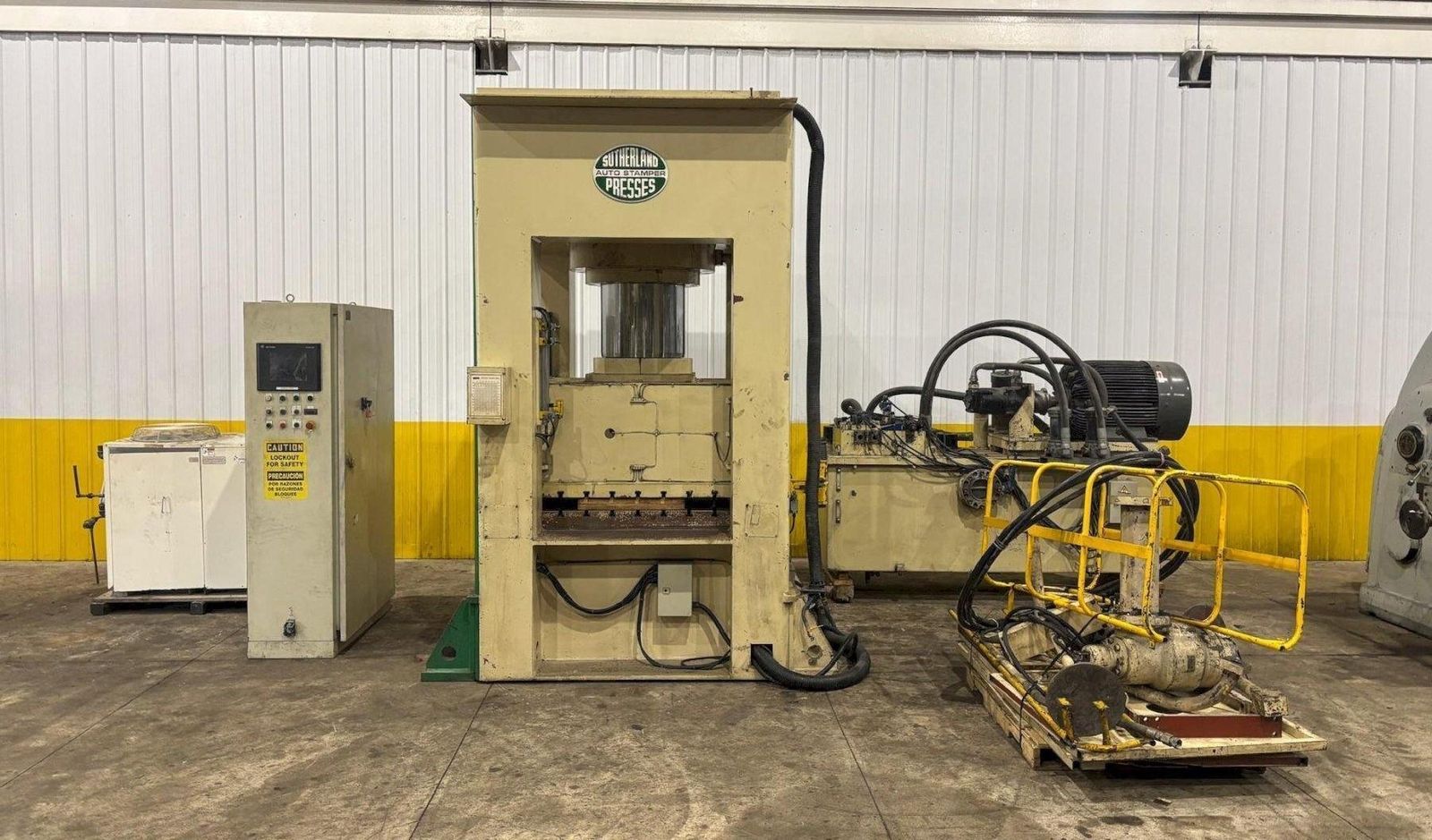

SERIAL ............................. 10012401001
MODEL .............................. HD1-600-43-67
YEAR ............................... 2000
TYPE ............................... DOWNSTROKE HOUSING
FLOORSTANDING ...................... YES
CAPACITY ........................... 600 TONS
LIFTING CAPACITY ................... 42 TONS
STROKE ............................. 0 to 15"
DAYLIGHT OPENING ................... 19"
8 PONT GIB GUIDED SLIDE ............ YES
AREA OF BED (NOMINAL) .............. 43" L-R x 67" F-B
AREA OF SLIDE (NOMINAL) ............ 43" L-R x 67" F-B
MAIN RAM DIAMETER .................. 22.3"/21.3" @ 3430 PSI - 660 TONS
FLOOR TO TOP OF BED ................ 41"
DENISON HYDRAULIC PUMP(TOP OF PRESS):
MOTOR .............................. 150HP / 1180RPM 230/460V / 3PH /60CY
SPEEDS (APPROX);
CLOSING ............................ 600"/MINUTE
PRESSING ........................... 45"/MINUTE TO 660 TONS
RETURN ............................. 600" MINUTE
CONTROLS:
PUSHBUTTON WITH STROKE & PRESSURE CONTROL
DUAL PALM BUTTONS
ALL PRESS FUNCTIONS CONTROLLED VIA PLC
Brand
SUTHERLAND
Type
Presses, Hydraulic
Stock No.
24088
 |
