Machine Information

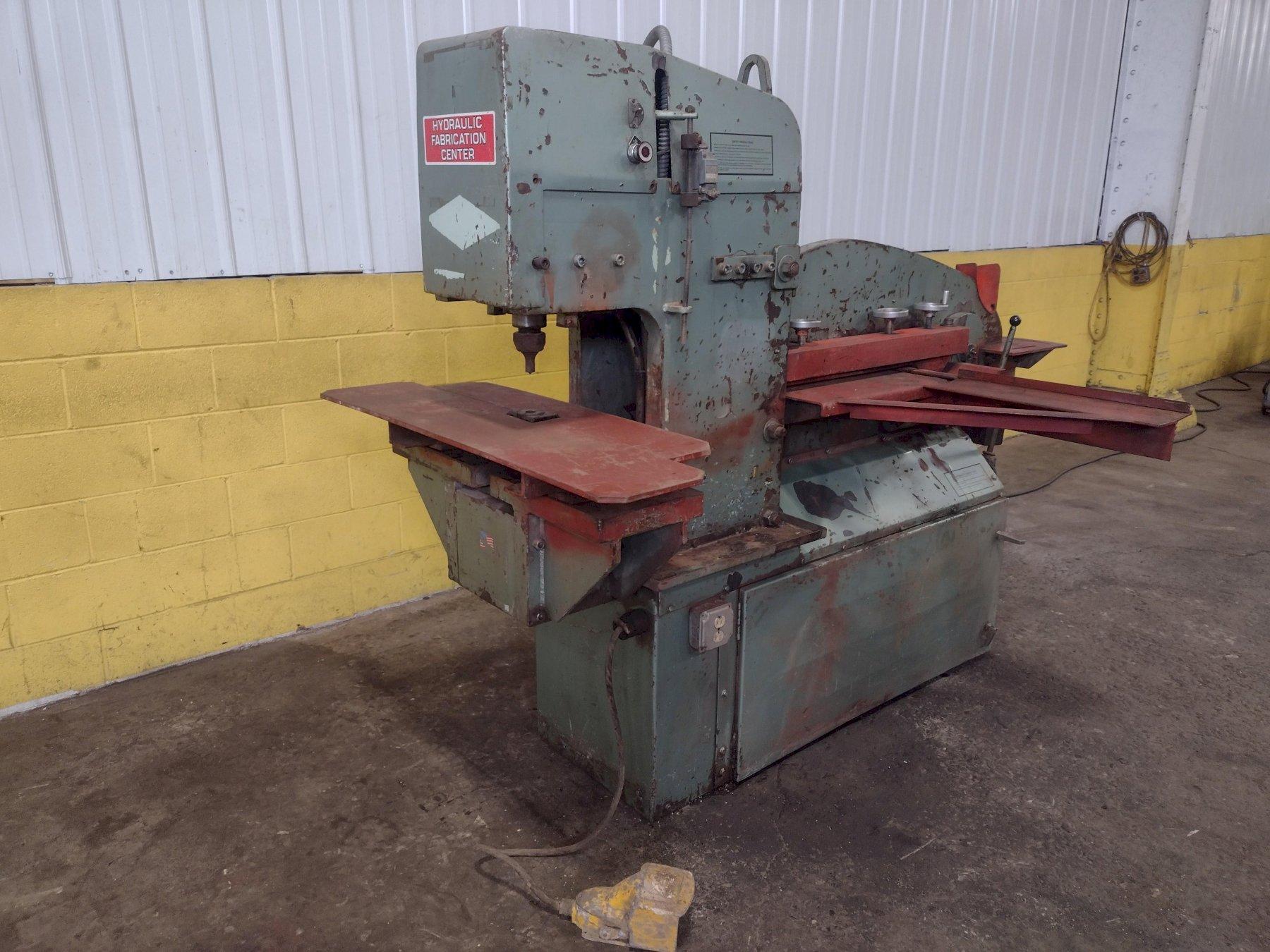

65 TON PIRANHA PII-65 HYDRAULIC IRONWORKER: STOCK 16345

Stock #: 16345

Equipped With

SERIAL ................... 0001-589
MODEL .................... PII-65
ANGLE SHEAR CAPACITY ..... 5" X 5" X 3/8"
PUNCH CAPACITY ........... 86 TON
THROAT DEPTH ............. 10"
ANGLE SHEAR .............. 5" X 5" X 3/8"
ROUND BAR SHEAR .......... 1-1/2"
SQUARE BAR SHEAR ......... 1" X 1"
SHEAR, BLADE LENGTH ...... 24"
PLATE SHEAR .............. 3/4" X 8" TO 1/4" X 24"
PUNCH .................... 1-1/16" THRU 1" PLATE
PUNCH TABLE SIZE ......... 34" X 16"
COPER/NOTCHER TONNAGE .... 95
COPER/NOTCHER SIZE ....... 2-3/4" X 4" X 1/4"
STROKE LENGTH ............ 7"
OPEN / CLOSED HEIGHT ..... 14"& 7-3/4" W/O DIE BLOCK
STROKE PER MINUTE ........ 24 @ 1"
ELECTRIC FOOT PEDAL ...... YES
MOTOR .................... 10 HORSEPOWER

65 TON PIRANHA PII-65 HYDRAULIC IRONWORKER: STOCK 16345

Stock # 16345

Request a Quote

Share Machine

Print Details

Make an Offer






















Download Images

View All Images

Machine Specifications

SERIAL ................... 0001-589

MODEL .................... PII-65

ANGLE SHEAR CAPACITY ..... 5" X 5" X 3/8"

PUNCH CAPACITY ........... 86 TON
THROAT DEPTH ............. 10"

ANGLE SHEAR .............. 5" X 5" X 3/8"

ROUND BAR SHEAR .......... 1-1/2"

SQUARE BAR SHEAR ......... 1" X 1"

SHEAR, BLADE LENGTH ...... 24"

PLATE SHEAR .............. 3/4" X 8" TO 1/4" X 24"

PUNCH .................... 1-1/16" THRU 1" PLATE

PUNCH TABLE SIZE ......... 34" X 16"

COPER/NOTCHER TONNAGE .... 95

COPER/NOTCHER SIZE ....... 2-3/4" X 4" X 1/4"

STROKE LENGTH ............ 7"

OPEN / CLOSED HEIGHT ..... 14"& 7-3/4" W/O DIE BLOCK

STROKE PER MINUTE ........ 24 @ 1"

ELECTRIC FOOT PEDAL ...... YES

MOTOR .................... 10 HORSEPOWER
