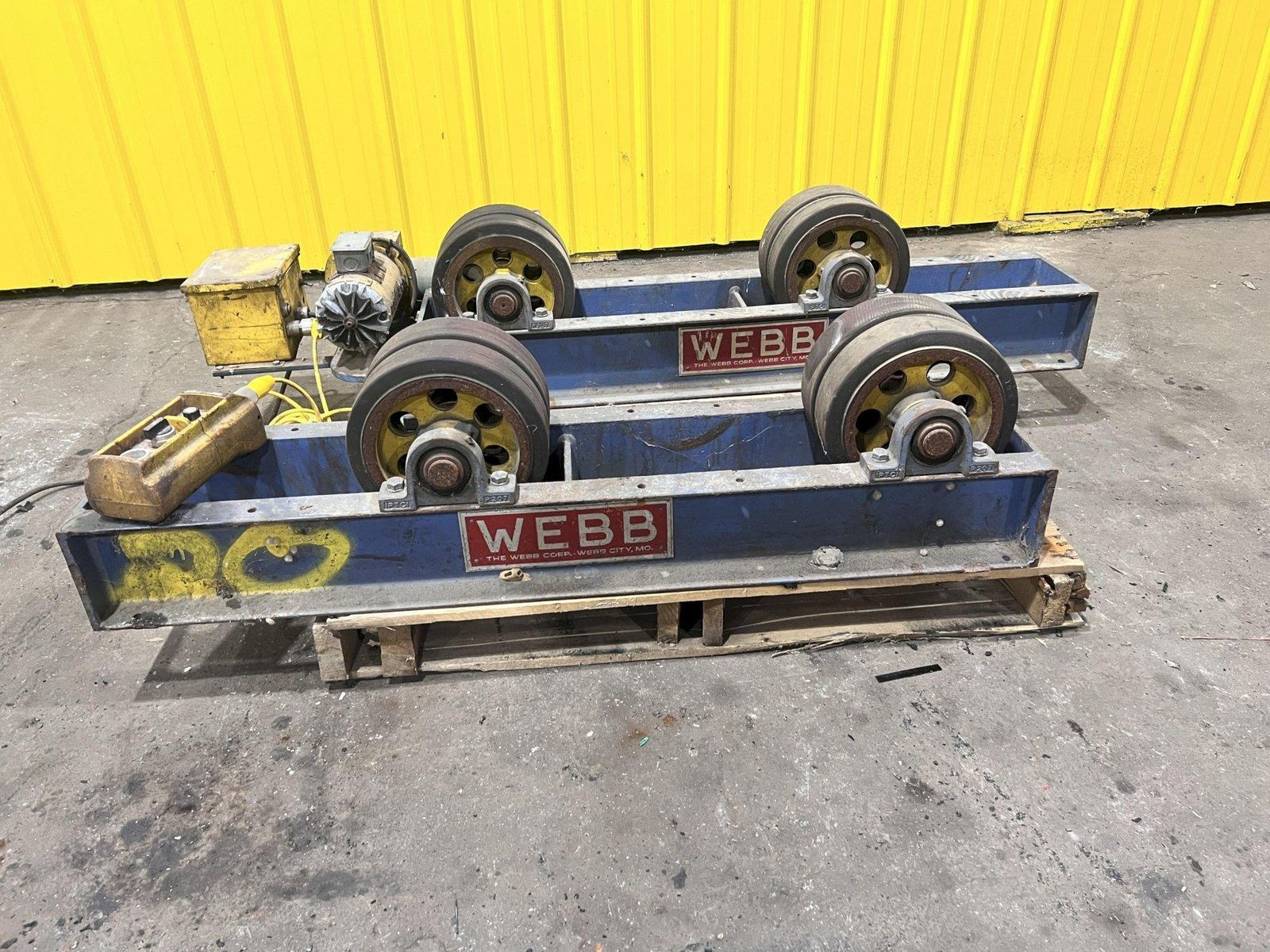

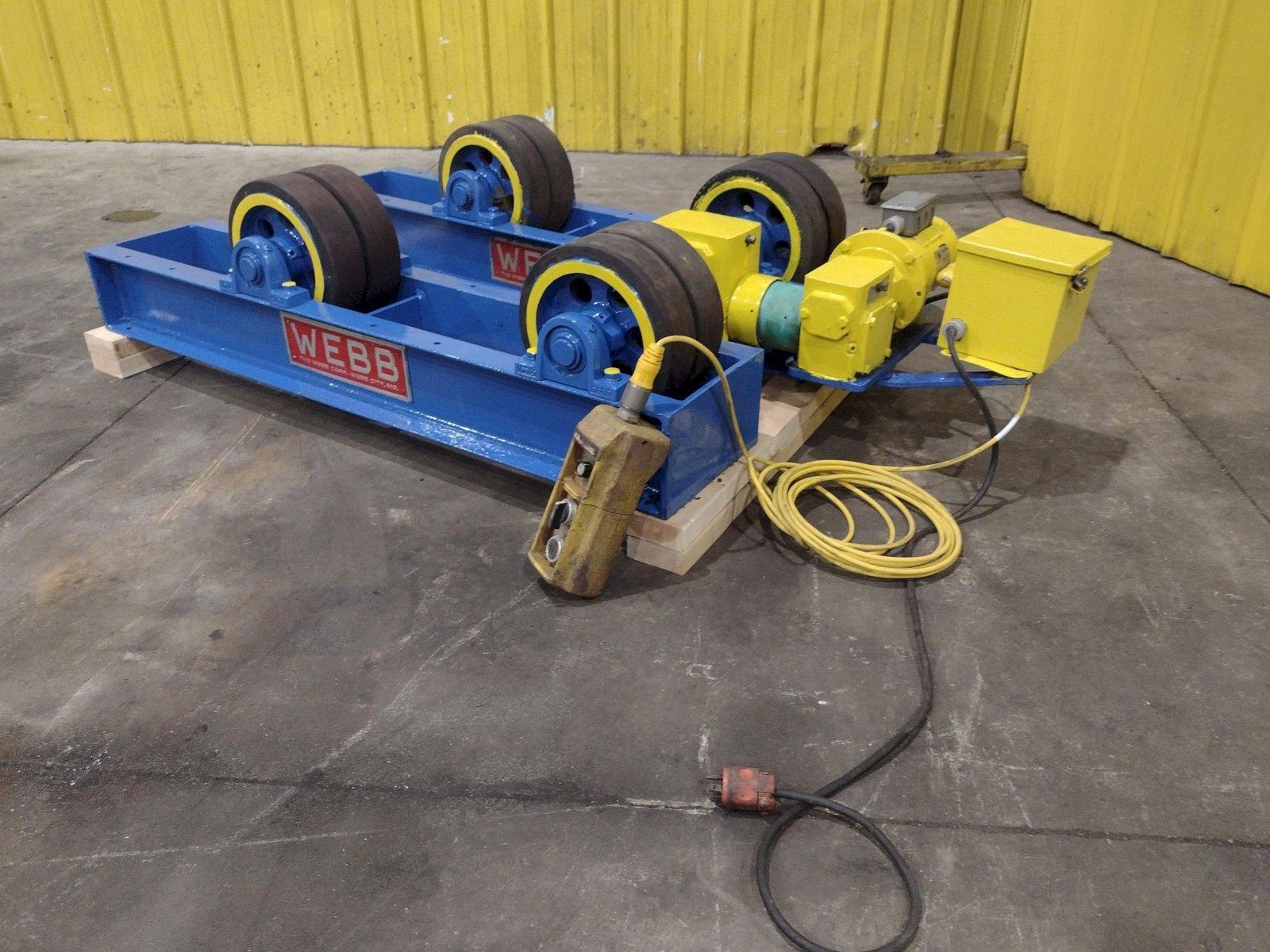

6,000 LBS WEBB MODEL #T6-PWR-IDL TANK TURNING ROLLS, POWER ROLL & IDLER: STOCK #21644

Overview

SERIAL # DRIVE ROLL ............... 2013-184
SERIAL # IDLER ROLL ............... 2013-123
MODEL DRIVE ROLL .................. T6D-PWR
MODEL IDLER ROLL .................. T6-1DL
YEAR NEW .......................... 2013
CAPACITY .......................... 3,000 LBS EACH
CAPACITY : 1 DRIVE 1 IDLER ........ 6,000 LBS 3 TONS
WORK DIAMETER ..................... 3" TO 72"
SPEED RANGE ....................... 0 TO 40 IPM
WHEEL FACE WIDTH .................. 6"
TIRE DIAMETER ..................... 10"
HEIGHT TO TOP OF TIRE ............. 12-7/8"
TIRES PER AXLE .................... 2
PENDANT CONTROL ................... YES
VOLTAGE ........................... 110
MOTOR ............................. 1/2 HORSEPOWER

6,000 LBS WEBB MODEL #T6-PWR-IDL TANK TURNING ROLLS, POWER ROLL & IDLER: STOCK #21644

Brand
WEBB

Type
Rolls, Power Tank Turning

Stock No.
21644

Price: $6950.00
Print Details

Related Listings

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

6,000 LBS WEBB MODEL #T6-PWR-IDL TANK TURNING ROLLS, POWER ROLL & IDLER: STOCK #21644

Stock #: 21644

Equipped With

SERIAL # DRIVE ROLL ............... 2013-184
SERIAL # IDLER ROLL ............... 2013-123
MODEL DRIVE ROLL .................. T6D-PWR
MODEL IDLER ROLL .................. T6-1DL
YEAR NEW .......................... 2013
CAPACITY .......................... 3,000 LBS EACH
CAPACITY : 1 DRIVE 1 IDLER ........ 6,000 LBS 3 TONS
WORK DIAMETER ..................... 3" TO 72"
SPEED RANGE ....................... 0 TO 40 IPM
WHEEL FACE WIDTH .................. 6"
TIRE DIAMETER ..................... 10"
HEIGHT TO TOP OF TIRE ............. 12-7/8"
TIRES PER AXLE .................... 2
PENDANT CONTROL ................... YES
VOLTAGE ........................... 110
MOTOR ............................. 1/2 HORSEPOWER
