Machine Information

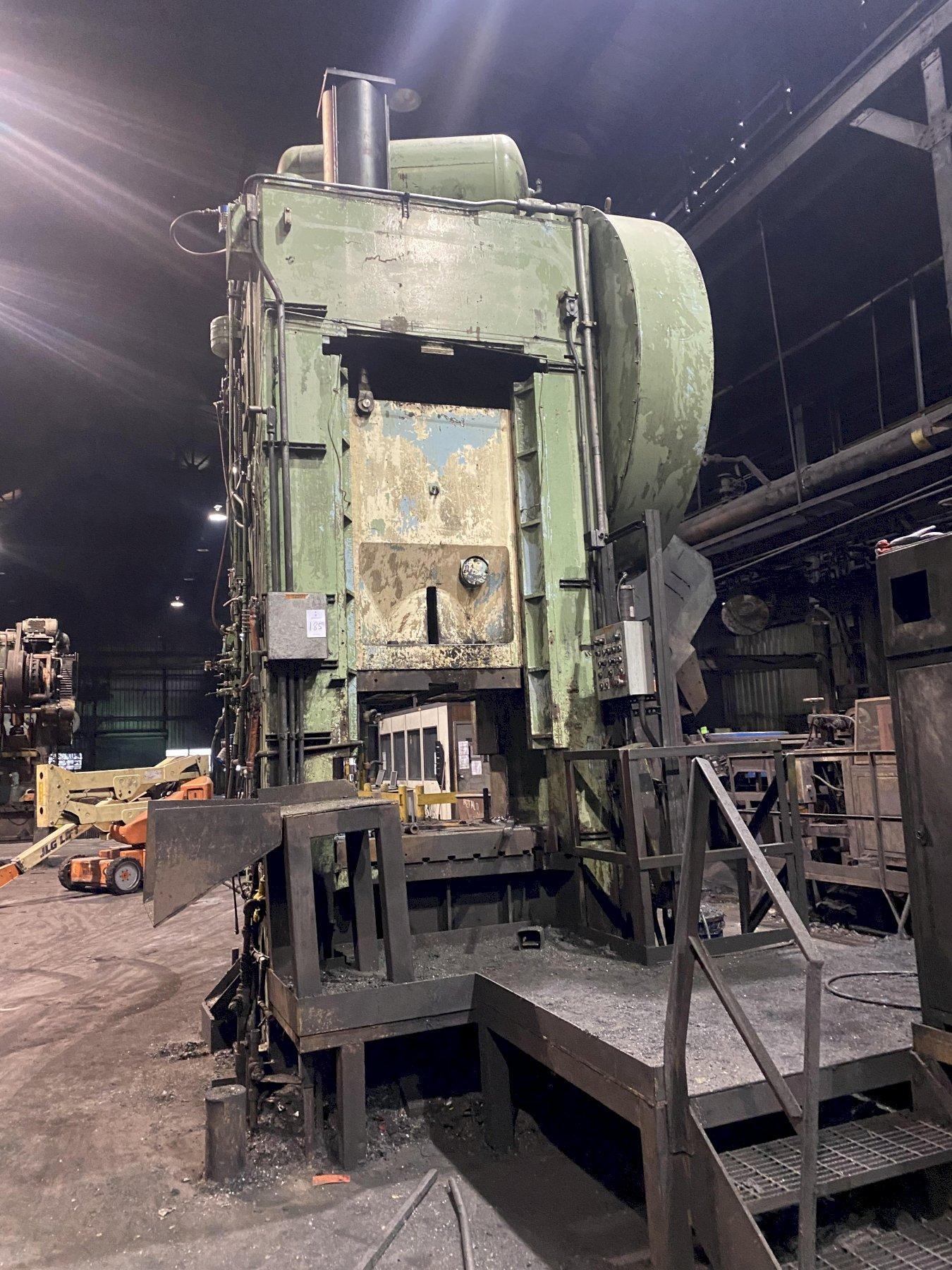

600 TON ERIE S1-600-42-48 STRAIGHT SIDE SSSC TRIM PRESS WITH 14" STROKE: STOCK 14809

Stock #: 14809

Equipped With







SERIAL ......... 1434
MODEL .......... S1-600-42-48
CAPACITY ....... 600 TONS
STROKE ......... 14"
SHUT HEIGHT .... 36"
ADJUSTMENT ..... 12"
SPEED .......... 15 TO 30 SPM
RAM SIZE ....... 48" LR X 42" FB
BED SIZE ....... 52" LR X 48" FB
BOLSTER ........ 7.5" THICK, T SLOTTED
BED OPENING .... 28" X 28" FOR CUSHION
WINDOWS ........ 30"
CONTROLS ....... PALM BUTTONS
AIR CLUTCH
AIR COUNTERBALANCE
SINGLE KNOCK OUT
BRAKE MONITOR
RAM ADJUSTMENT .. 5 HP
MAIN MOTOR ...... 60 HP

Buy Machines

600 TON ERIE S1-600-42-48 STRAIGHT SIDE SSSC TRIM PRESS WITH 14" STROKE: STOCK 14809

Stock # 14809

Request a Quote
Share Machine
Print Details
Make an Offer
Download Images
View All Images

Machine Specifications

SERIAL ......... 1434
MODEL .......... S1-600-42-48
CAPACITY ....... 600 TONS
STROKE ......... 14"
SHUT HEIGHT .... 36"
ADJUSTMENT ..... 12"
SPEED .......... 15 TO 30 SPM
RAM SIZE ....... 48" LR X 42" FB
BED SIZE ....... 52" LR X 48" FB
BOLSTER ........ 7.5" THICK, T SLOTTED
BED OPENING .... 28" X 28" FOR CUSHION
WINDOWS ........ 30"
CONTROLS ....... PALM BUTTONS
AIR CLUTCH
AIR COUNTERBALANCE
SINGLE KNOCK OUT
BRAKE MONITOR
RAM ADJUSTMENT .. 5 HP
MAIN MOTOR ...... 60 HP
