Original Purchase Specs: unit is disassembled

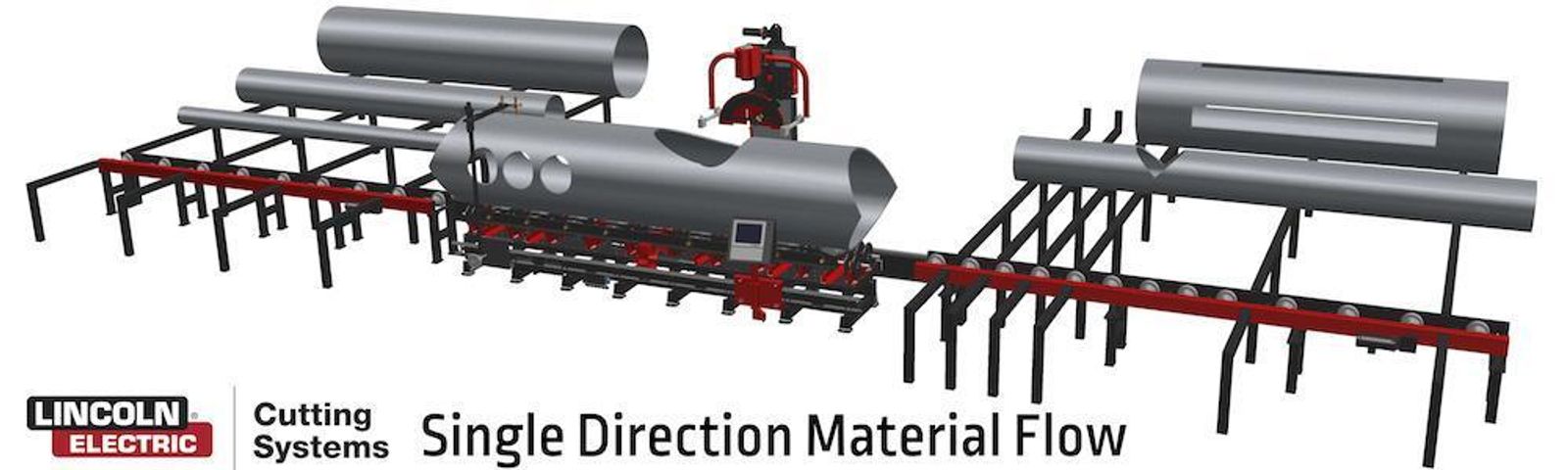

2013 Vernon Pipe Cutting Machine
Model 0460-MPM-5
4" - 60" pipe capacity
48' pipe length capacity
43' maximum end to end cut length
1,500 lbs per foot to a maximum load of 50,000 lbs
(2) 18 ft turning roll and conveying tables with dual main drive input assemblies; (includes machine bed support structure)
lifter conveyor assembly, variable speed, reversible power feed and hydraulic power unit with aft and forward bed extensions
5 axis profiling carriage on precision machined and hardened track with rack and pinion drive
vertical capacitive ovality sensor system
profiler capable of cutting up both ends of 40 ft pipe in single set-up
oxy/fuel torch compatible with plasma cutting system
preheat torch to include regulator console for preheat and cut torch
stainless steel hydraulic lines and operator console;
(1) 40 ft entrance conveyor
(1) 40 ft discharge conveyor
conveyor supports
Hypertherm HPR260XD plasma cutting unit 230/460V AC, 3 phase, 60Hz
machine torch and remote control for integration with cutting machine
65' torch leads and complete set of rotating grounds
plasma interface V5775
Brand
VERNON TOOL
Type
Profilers
Stock No.
19295
 |
