Machine Information

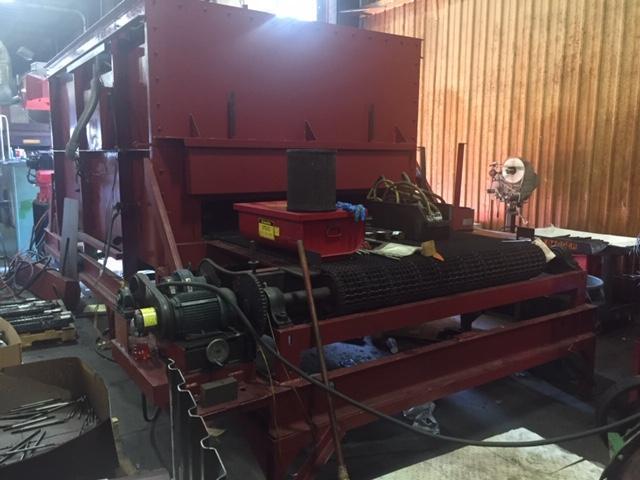

60" X 144" X 6" DIAMOND ENGINEERING BELT OVEN FURNACE: STOCK #13656

Stock #: 13656

Equipped With

MODEL ........................... CONVEYOR
WORKING DIMENSIONS .............. 60"W X 144"L X 6"H
TEMPERATURE ..................... 800°
ELECTRICS ....................... 480V/3CY/60HZ/75KW

DESCRIPTION:
CERAMIC FIBER LINED RECIRCULATING BELT OVEN W/FLATWIRE BELT
TOP MOUNTED RECIRCULATING FAN ... 7.5 HP

INSTRUMENTATION:
SIDE MOUNTED CONTROL PANEL
3000 SERIES HONEYWELL DIGITAL TEMPERATURE CONTROLLER
2000 SERIES HONEYWELL HIGH LIMIT
145 AMPS CONTROL CONCEPTS SCR PROPORTIONAL POWER CONTROLLER



Buy Machines

60" X 144" X 6" DIAMOND ENGINEERING BELT OVEN FURNACE: STOCK #13656

Stock # 13656

Request a Quote
Share Machine
Print Details
Make an Offer
Download Images
View All Images

Machine Specifications

MODEL ........................... CONVEYOR
WORKING DIMENSIONS .............. 60"W X 144"L X 6"H
TEMPERATURE ..................... 800°
ELECTRICS ....................... 480V/3CY/60HZ/75KW

DESCRIPTION:
CERAMIC FIBER LINED RECIRCULATING BELT OVEN W/FLATWIRE BELT
TOP MOUNTED RECIRCULATING FAN ... 7.5 HP

INSTRUMENTATION:
SIDE MOUNTED CONTROL PANEL
3000 SERIES HONEYWELL DIGITAL TEMPERATURE CONTROLLER
2000 SERIES HONEYWELL HIGH LIMIT
145 AMPS CONTROL CONCEPTS SCR PROPORTIONAL POWER CONTROLLER



Specifications
Dimensions 8'6"W X 20'L X 8'8"H WITHOUT FAN / 10'6" H W/TOP-MOUNTED FAN
Weight 10000 pounds
