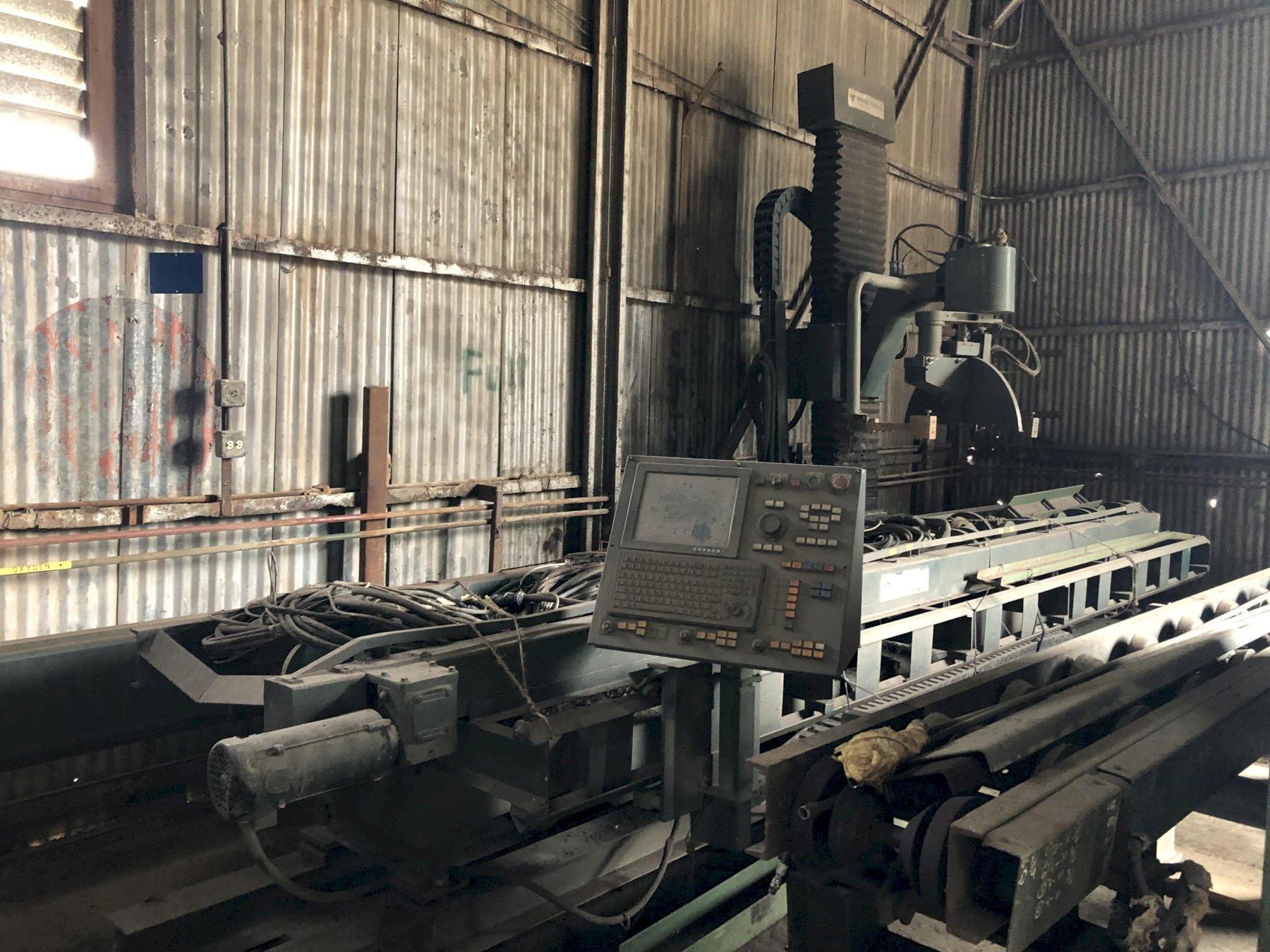

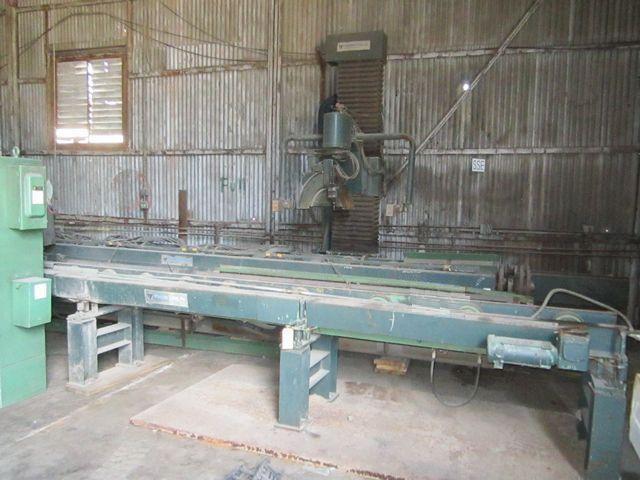

48" VERNON MODEL MPM5-0348 CNC PIPE PROFILER SYSTEM: STOCK #11471

Stock #: 11471

Equipped With

Serial: 6159
Year New: 2007
Model: MPM4-0348
Pipe Capacity Diameter: 3" to 48"
5 Axis:
A, C, X, Y, Z-Axis and Vertical Carriage
Advantach Control
Cutting speed: 200 IPM Max
Rotation speed: 0 to 200 IPM
Conveyor rotation speed: Up to 50 RPM
Torch angle: +/-
Torch travel: 41' Max
Table Load Capacity: 1000 lbs per ft, 22,500 lbs Max
Plasma Unit: Hypertherm "Max 200"


Buy Machines

48" VERNON MODEL MPM5-0348 CNC PIPE PROFILER SYSTEM: STOCK #11471

Stock # 11471

Sold
Share Machine
Print Details

Machine Specifications

Serial: 6159
Year New: 2007
Model: MPM4-0348
Pipe Capacity Diameter: 3" to 48"
5 Axis:
A, C, X, Y, Z-Axis and Vertical Carriage
Advantach Control
Cutting speed: 200 IPM Max
Rotation speed: 0 to 200 IPM
Conveyor rotation speed: Up to 50 RPM
Torch angle: +/-
Torch travel: 41' Max
Table Load Capacity: 1000 lbs per ft, 22,500 lbs Max
Plasma Unit: Hypertherm "Max 200"
