Machine Information

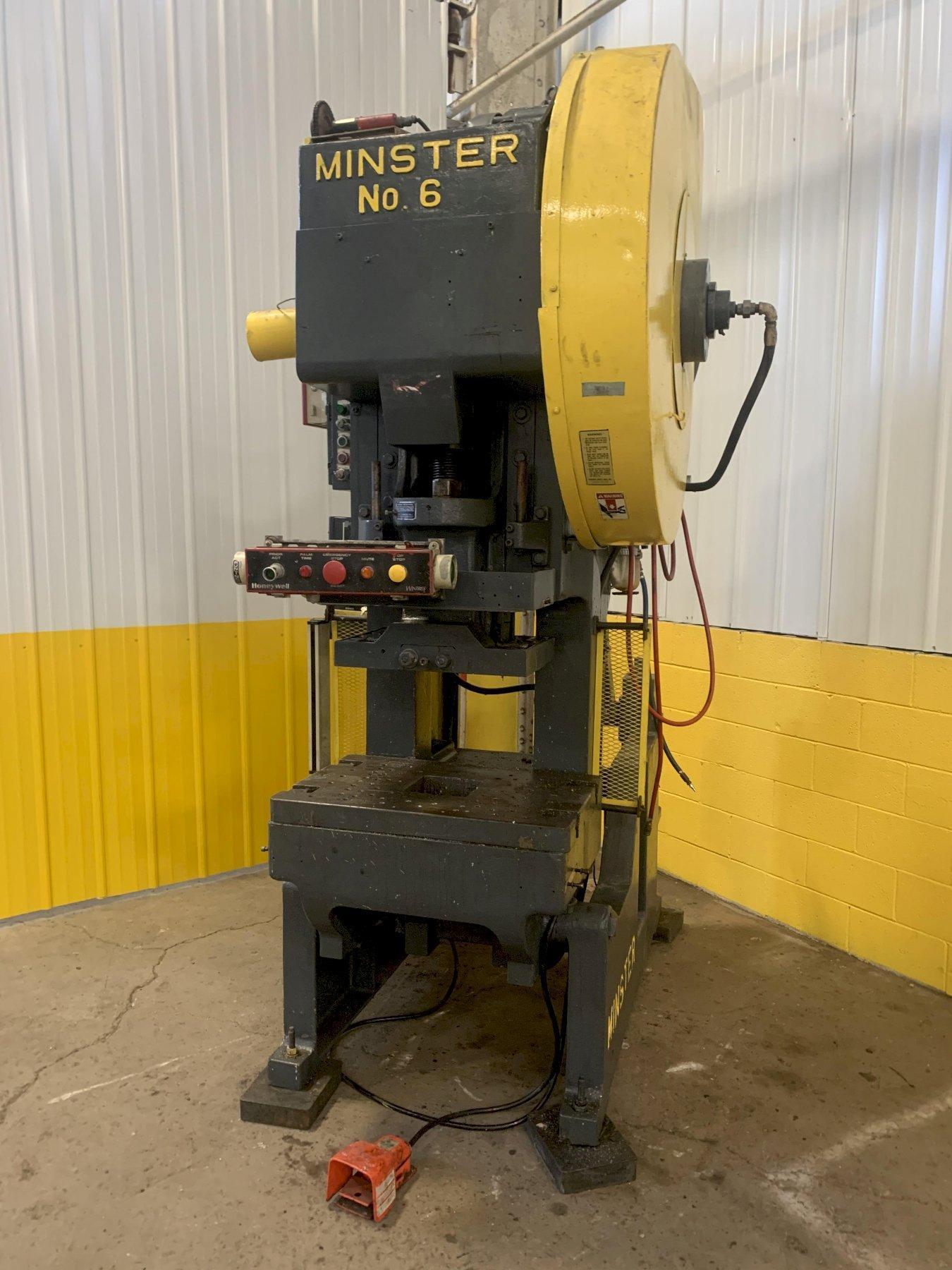

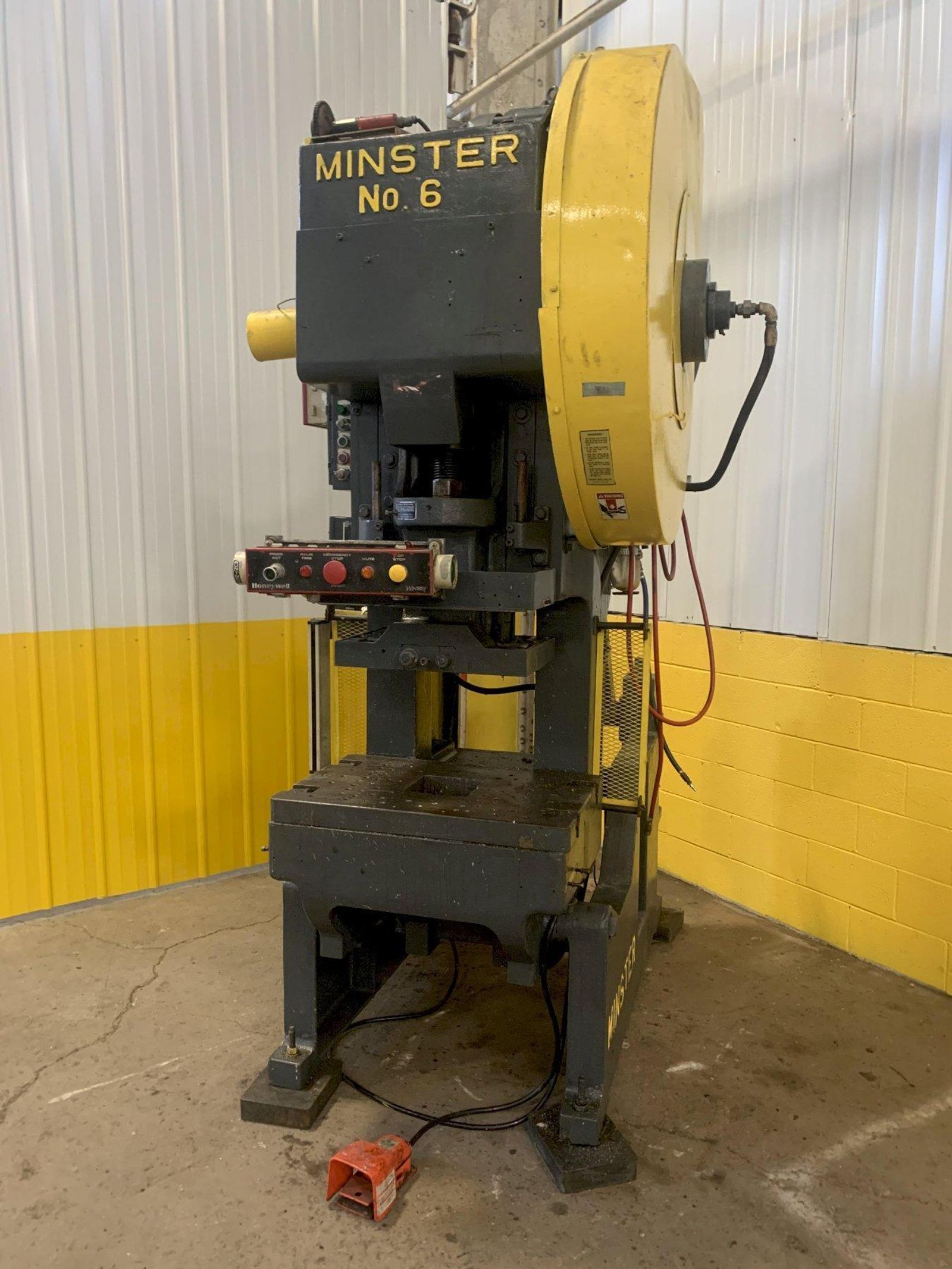

60 TON MINSTER #6 OBI PRESS: STOCK #12536

Stock #: 12536

Equipped With

MODEL ........................... #6
CAPACITY ........................ 60 TON
STROKE .......................... 6"
AREA OF BED ..................... 32" X 21"
BED BOLSTER ..................... 32" X 21" X 2-3/8" HIGH
SLUG HOLE IN BOLSTER ............ 7" X 7"
RAM ............................. 21" X 14"
SHUT HEIGHT ..................... 17"
HEIGHT BOLSTER TO FLOOR ......... 37"
WIDTH BETWEEN BACK HOUSINGS ..... 15"
AIR CLUTCH ...................... YES
WINTRISS CLUTCH/BRAKE CONTROL ... YES
RUNNING MODES ................... INCH / SINGLE / CONTINUOUS
SAFETY LIGHT CURTAINS ........... YES
DUAL PALM BUTTONS CONTROLS ...... YES
FOOT PEDAL CONTROLS ............. YES
TOP STOP ........................ YES
E-STOP .......................... YES
AUTO LUBE ....................... YES
