Overview

MODEL ...................... BSTA60VL
CAPACITY ................... 60 TON
STROKE ..................... .75" TO 3.00"
RAM ADJUSTMENT ............. 3.156"
SHUT HEIGHT @ 3/4" STROKE .. 8.5" TO 11.5"
SHUT HEIGHT @ 3" SROKE ..... 7.25" TO 10.5"
BED BOLSTER AREA ........... 28.5" LR X 31" FB
BED BOLSTER THICKNESS ...... 3"
SLIDE FACE AREA ............ 27.5" LR X 18" FB
DISTANCE BETWEEN POSTS ..... 31.5" LR X 13.4" FB
SPEED (VARIABLE) ........... 150 TO 580 SPM
MAX. MATERIAL WIDTH ........ 11.75"
MAX. MATERIAL FEED INDEX ... 7.65"
PLC CONTROLS ............... ALLEN BRADLEY 1336
AIR CLUTCH ................. YES
BRAKE SELECTOR CONTROLS .... YES
UNDER DRIVEN DESIGN ........ YES
AC MAIN DRIVE MOTOR ........ YES

Specifications
Dimensions 100" X 83" X 87" HIGH
Weight 19200 pounds

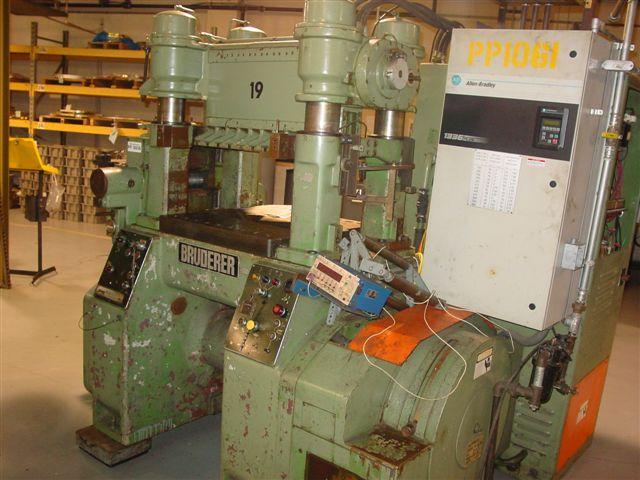

60 TON BRUDERER PRECISION HIGH SPEED (4) PILLAR TYPE PUNCH PRESS: STOCK #11074

Brand
Not Specified

Type
Presses, O.B.I.

Stock No.
11074

Related Listings

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

60 TON BRUDERER PRECISION HIGH SPEED (4) PILLAR TYPE PUNCH PRESS: STOCK #11074

Stock #: 11074

Equipped With

MODEL ...................... BSTA60VL
CAPACITY ................... 60 TON
STROKE ..................... .75" TO 3.00"
RAM ADJUSTMENT ............. 3.156"
SHUT HEIGHT @ 3/4" STROKE .. 8.5" TO 11.5"
SHUT HEIGHT @ 3" SROKE ..... 7.25" TO 10.5"
BED BOLSTER AREA ........... 28.5" LR X 31" FB
BED BOLSTER THICKNESS ...... 3"
SLIDE FACE AREA ............ 27.5" LR X 18" FB
DISTANCE BETWEEN POSTS ..... 31.5" LR X 13.4" FB
SPEED (VARIABLE) ........... 150 TO 580 SPM
MAX. MATERIAL WIDTH ........ 11.75"
MAX. MATERIAL FEED INDEX ... 7.65"
PLC CONTROLS ............... ALLEN BRADLEY 1336
AIR CLUTCH ................. YES
BRAKE SELECTOR CONTROLS .... YES
UNDER DRIVEN DESIGN ........ YES
AC MAIN DRIVE MOTOR ........ YES
