SERIAL ........................... HP67983-HP51405

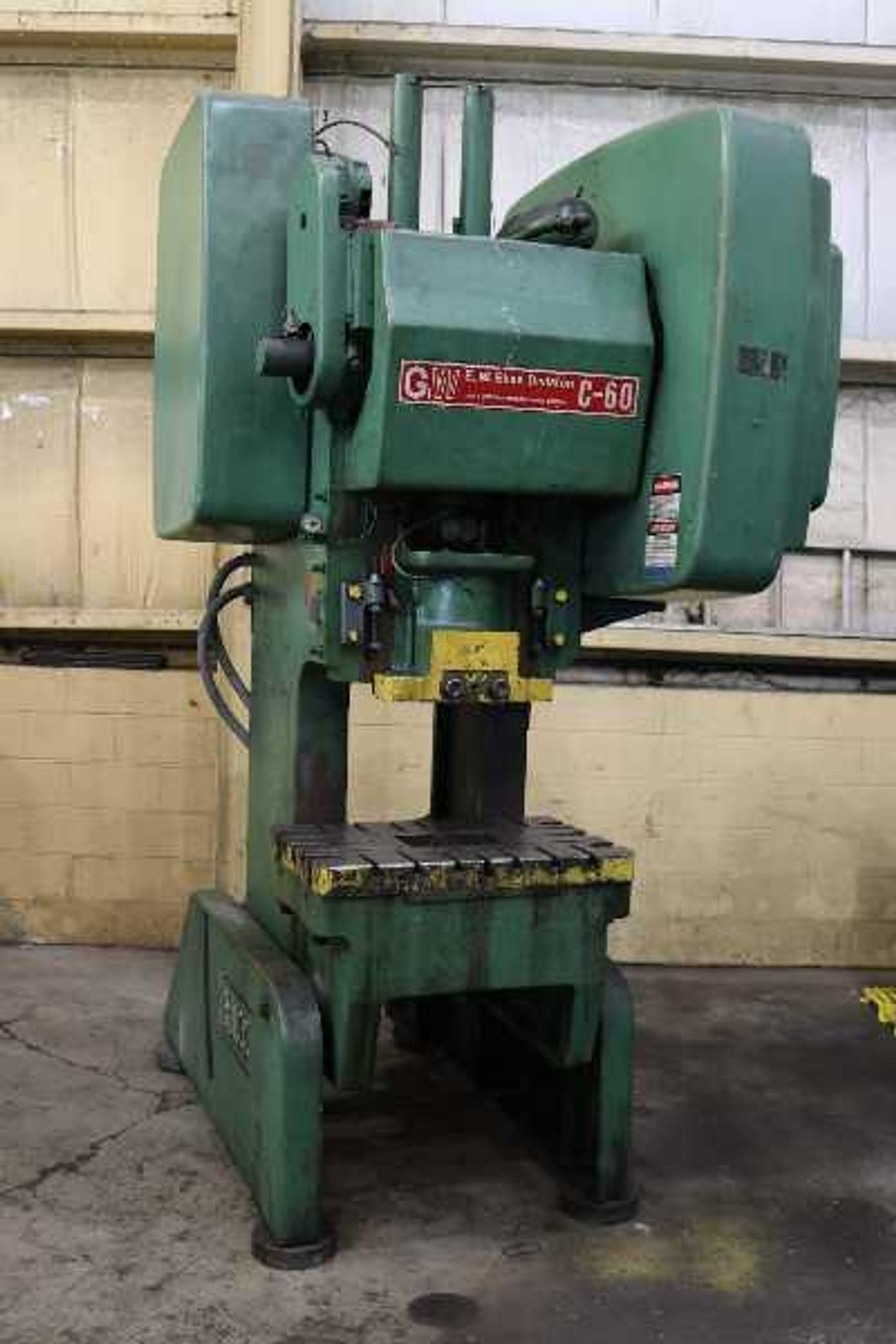

MODEL ............................ C-60
CAPACITY ......................... 60 TON
STROKE OF SLIDE .................. 4"
ADJUSTMENT ....................... 3"
SHUT HEIGHT, SDAU OVER BED ....... 14-1/4"
AREA OF RAM ...................... 17" X 12"
AREA OF BED ...................... 32" X 21"
BOLSTER .......................... 32" X 21" X 2-3/4"
DEPTH OF THROAT .................. 11"
OPENING THROUGH BACK ............. 15"
SPEED ............................ 45 SPM
AIT CLUTCH AIR BRAKE ............. YES
DUAL AIR COUNTER BALANCE ......... YES
MOTOR ............................ 5 HP
| Specifications | ||
|---|---|---|
| Tonnage | 60 tons | |
| Stroke | 4 inches | |
| Shut Height | 41.25 inches | |
| Bed W | 32 inches | |
| Bed L | 21 inches | |
| Air Clutch (Yes/No) | yes | |
| Type (BG, Double Action, FW) | flywheel | |
| Crank (Single/Double) | single | |
Brand
BLISS
Type
Presses, O.B.I.
Stock No.
10206
 |
419-269-2000 |
Stock #: 10206
SERIAL ........................... HP67983-HP51405
MODEL ............................ C-60
CAPACITY ......................... 60 TON
STROKE OF SLIDE .................. 4"
ADJUSTMENT ....................... 3"
SHUT HEIGHT, SDAU OVER BED ....... 14-1/4"
AREA OF RAM ...................... 17" X 12"
AREA OF BED ...................... 32" X 21"
BOLSTER .......................... 32" X 21" X 2-3/4"
DEPTH OF THROAT .................. 11"
OPENING THROUGH BACK ............. 15"
SPEED ............................ 45 SPM
AIT CLUTCH AIR BRAKE ............. YES
DUAL AIR COUNTER BALANCE ......... YES
MOTOR ............................ 5 HP
