Machine Information

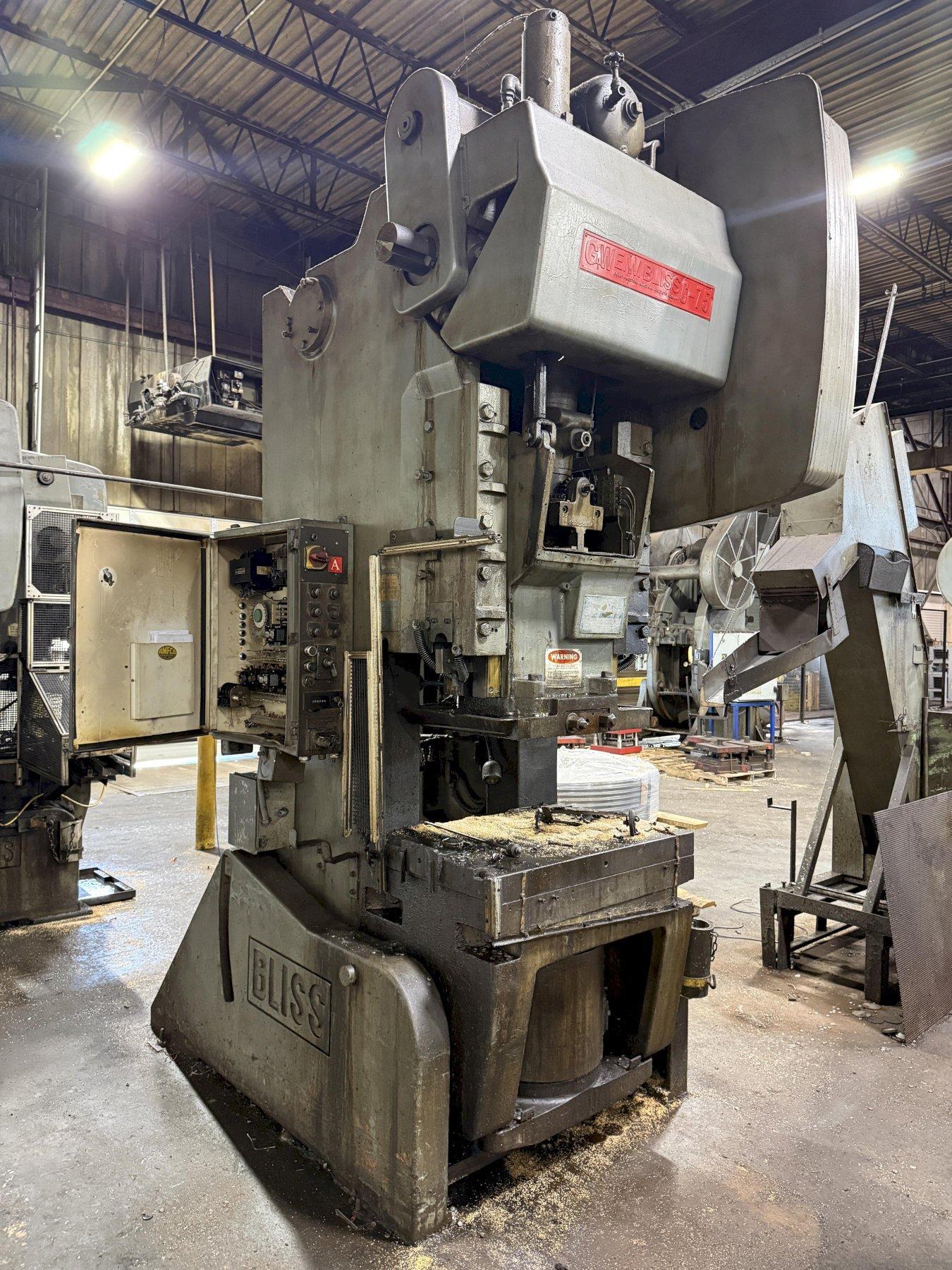

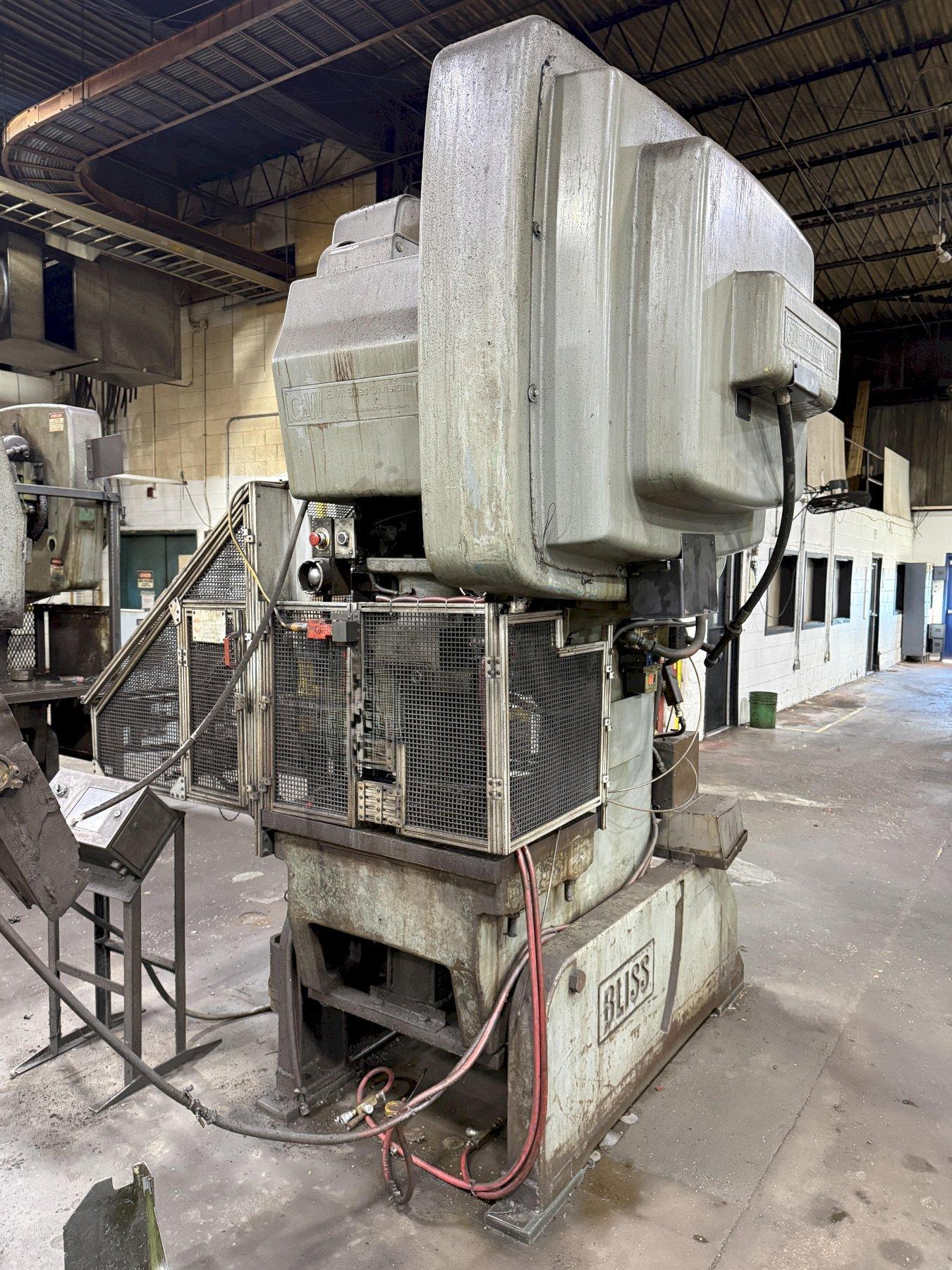

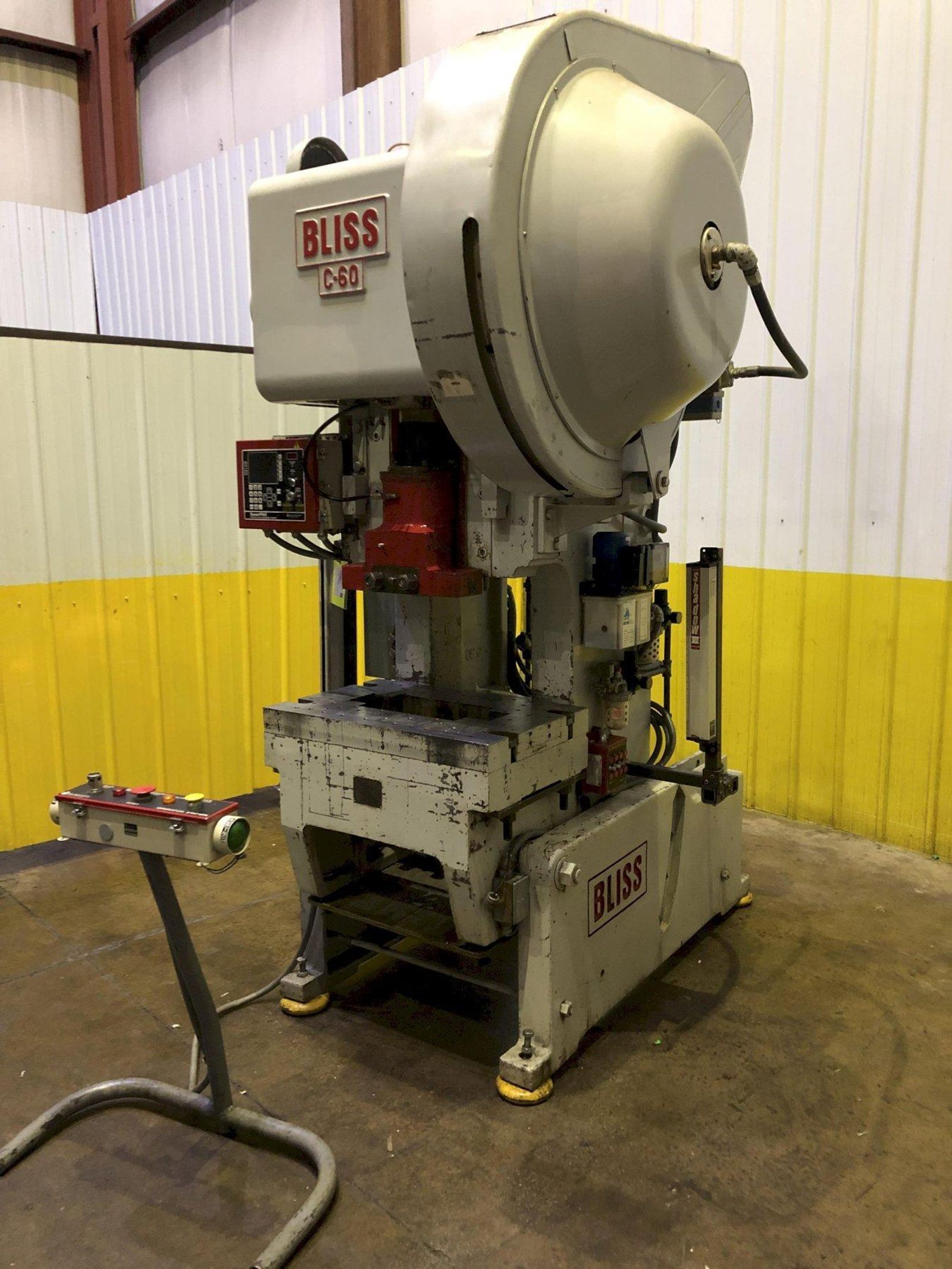

60 TON BLISS C-60 OBI PRESS, 3" STROKE: STOCK #18268

Stock #: 18268

Equipped With

SERIAL ..................... H59527
MODEL ...................... C-60
CAPACITY ................... 60 TON
STROKE ..................... 3"
SLIDE ADJUSTMENT ........... 3"
SHUT HEIGHT ................ 14-3/4"
SPEED ......................  SPM
BED AREA ................... 21" F-B x 32" L-R
BOLSTER PLATE .............. 21" X 32" X 3" THICK
T-SLOTTED BOLSTER .......... YES
HOLE IN BOLSTER ............ 8" F-B X 14" L-R
RAM AREA ................... 11" F-B X 16" L-R
DISTANCE BETWEEN HOUSINGS .. 15"
AIR CLUTCH ................. YES
WINTRESS PRESS CONTROLLER .. SMART-PAC
AUTOMATIC LUBE SYSTEM ...... TRABON
OPERATOR'S PEDISTAL ........ YES
PALM BUTTON CONTROLS ....... YES
LIGHT CURTAINS ............. YES
E-STOP BUTTON .............. YES
MOTOR ...................... 10 HP
