Machine Information

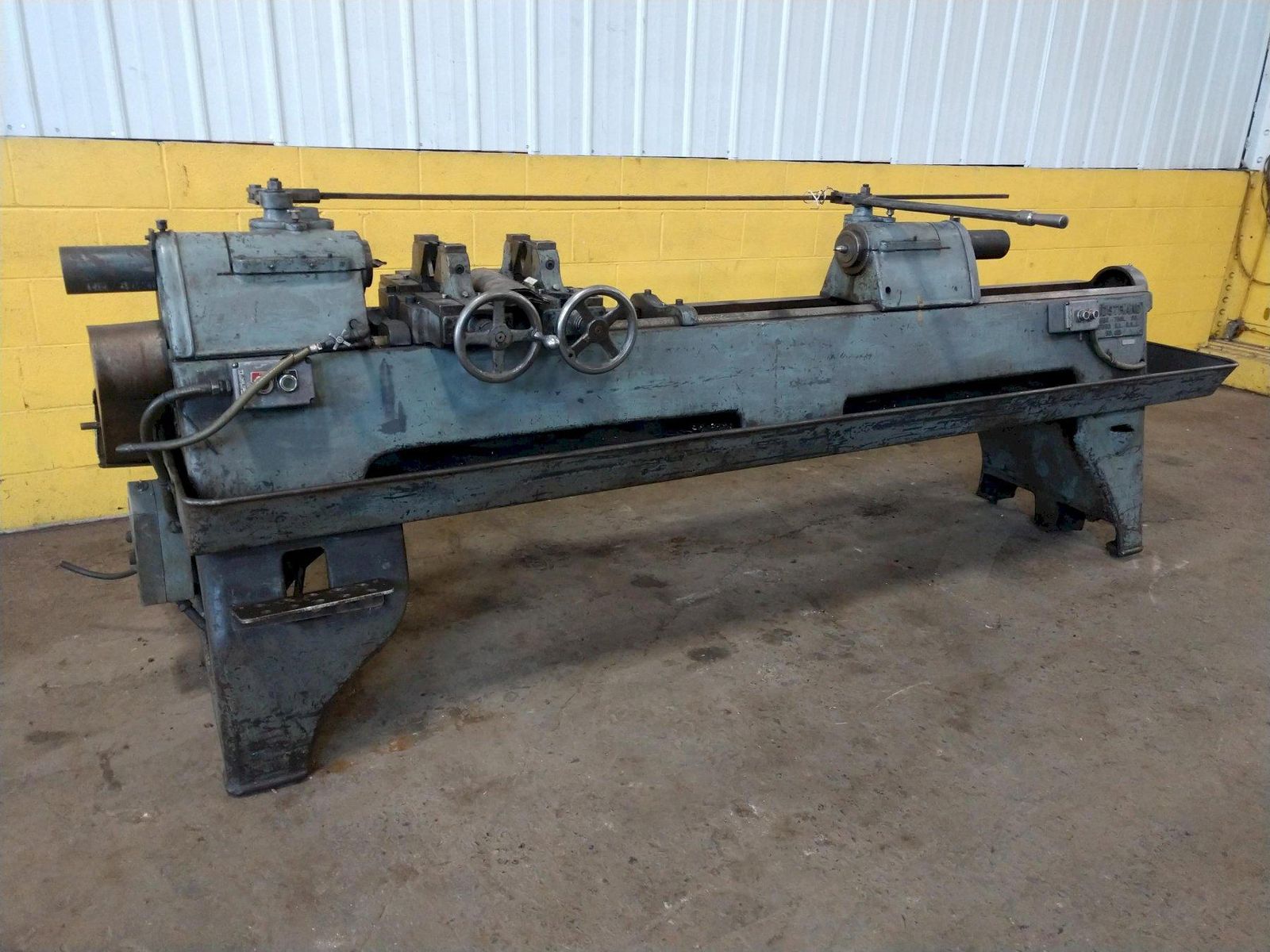

6" x 72" SUNDSTRAND POWERED DRILLING & CENTERING MACHINE: STOCK #14546

Stock #: 14546

Equipped With

Sundstrand Drilling & Centering Machine
Model: 56
Serial Number: 56-165
Specifications:
Max Shaft Dia.: 6”
Min. Shaft Dia.: ½”
Max. Shaft Length: 72”
RPM Ranges: 1000, 1200,1500 or 1800

Capacity:

2) 1” Drills Simultaneously in Mild Steel
Simultaneously Hand Feed: 1.75”
Simultaneously Power Feed: 3.5”
Taper In Spindle Nose: No. 3 Morse Taper
Dia. Of Spindle Quill: 4”
Width of Bed: 11”
Top of Bed Ways to Spindle Center: 6”
Motor: 3 HP, 3 Phase
Machine Dims: 134”Lx4’Wx4’H
Weight: 2500 Pounds

Buy Machines

6" x 72" SUNDSTRAND POWERED DRILLING & CENTERING MACHINE: STOCK #14546

Stock # 14546

Share Machine
Print Details

Machine Specifications

Sundstrand Drilling & Centering Machine
Model: 56
Serial Number: 56-165
Specifications:
Max Shaft Dia.: 6”
Min. Shaft Dia.: ½”
Max. Shaft Length: 72”
RPM Ranges: 1000, 1200,1500 or 1800

Capacity:

2) 1” Drills Simultaneously in Mild Steel
Simultaneously Hand Feed: 1.75”
Simultaneously Power Feed: 3.5”
Taper In Spindle Nose: No. 3 Morse Taper
Dia. Of Spindle Quill: 4”
Width of Bed: 11”
Top of Bed Ways to Spindle Center: 6”
Motor: 3 HP, 3 Phase
Machine Dims: 134”Lx4’Wx4’H
Weight: 2500 Pounds

Specifications
Dimensions Machine Dims: 134”Lx4’Wx4’H
Weight 2500 pounds
