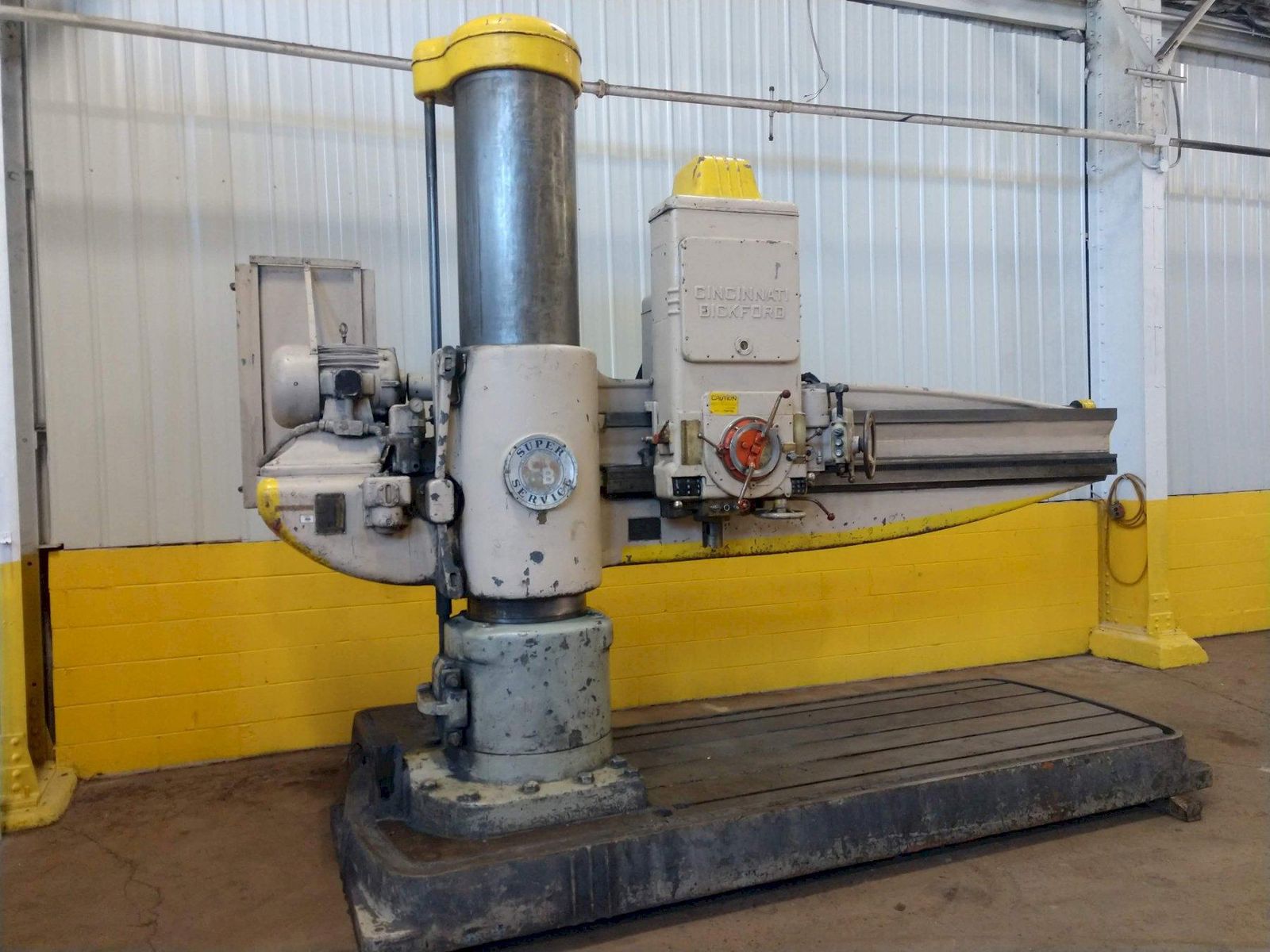

6' X 19" CINCINNATI BICKFORD MODEL #6E HEAVY DUTY RADIAL DRILL: STOCK #12244

Stock #: 12244

Equipped With

SERIAL .............................. 6NE53
MODEL ............................... 6E
SPINDLE SPEEDS (36).................. 10 TO 1250 RPM
FEEDS (18)........................... .004 TO .125 IPR
TAPPING LEADS (6) ................... 8 TO 27 TPI
VERTICAL ARM TRAVEL ON COLUMN ....... 3'6"
VERTICAL SPINDLE TRAVEL.............. 20"
TAPER IN SPINDLE..................... #6 MT
HORIZONTAL HEAD TRAVEL ON ARM ....... 72"
DIAMETER OF SPINDLE NOSE............. 4.19"
DISTANCE SPINDLE TO BASE............. 16" MINIMUM, 6'6" MAXIMUM
DISTANCE SPINDLE TO COLUMN .......... 11.625"
POWER ARM ELEVATION ................. YES
POWER CLAMPING TO ARM ............... YES
POWER HEAD & COLUMN, CLAMPING ....... YES
TAPPING ............................. YES
COOLANT ............................. YES
MOTOR ............................... 25 HORSEPOWER

6' X 19" CINCINNATI BICKFORD MODEL #6E HEAVY DUTY RADIAL DRILL: STOCK #12244

Stock # 12244

Request a Quote

Share Machine

Print Details

Make an Offer


















Download Images

View All Images

Machine Specifications

SERIAL .............................. 6NE53

MODEL ............................... 6E

SPINDLE SPEEDS (36).................. 10 TO 1250 RPM

FEEDS (18)........................... .004 TO .125 IPR

TAPPING LEADS (6) ................... 8 TO 27 TPI

VERTICAL ARM TRAVEL ON COLUMN ....... 3'6"

VERTICAL SPINDLE TRAVEL.............. 20"

TAPER IN SPINDLE..................... #6 MT

HORIZONTAL HEAD TRAVEL ON ARM ....... 72"

DIAMETER OF SPINDLE NOSE............. 4.19"

DISTANCE SPINDLE TO BASE............. 16" MINIMUM, 6'6" MAXIMUM

DISTANCE SPINDLE TO COLUMN .......... 11.625"

POWER ARM ELEVATION ................. YES

POWER CLAMPING TO ARM ............... YES

POWER HEAD & COLUMN, CLAMPING ....... YES

TAPPING ............................. YES

COOLANT ............................. YES

MOTOR ............................... 25 HORSEPOWER
