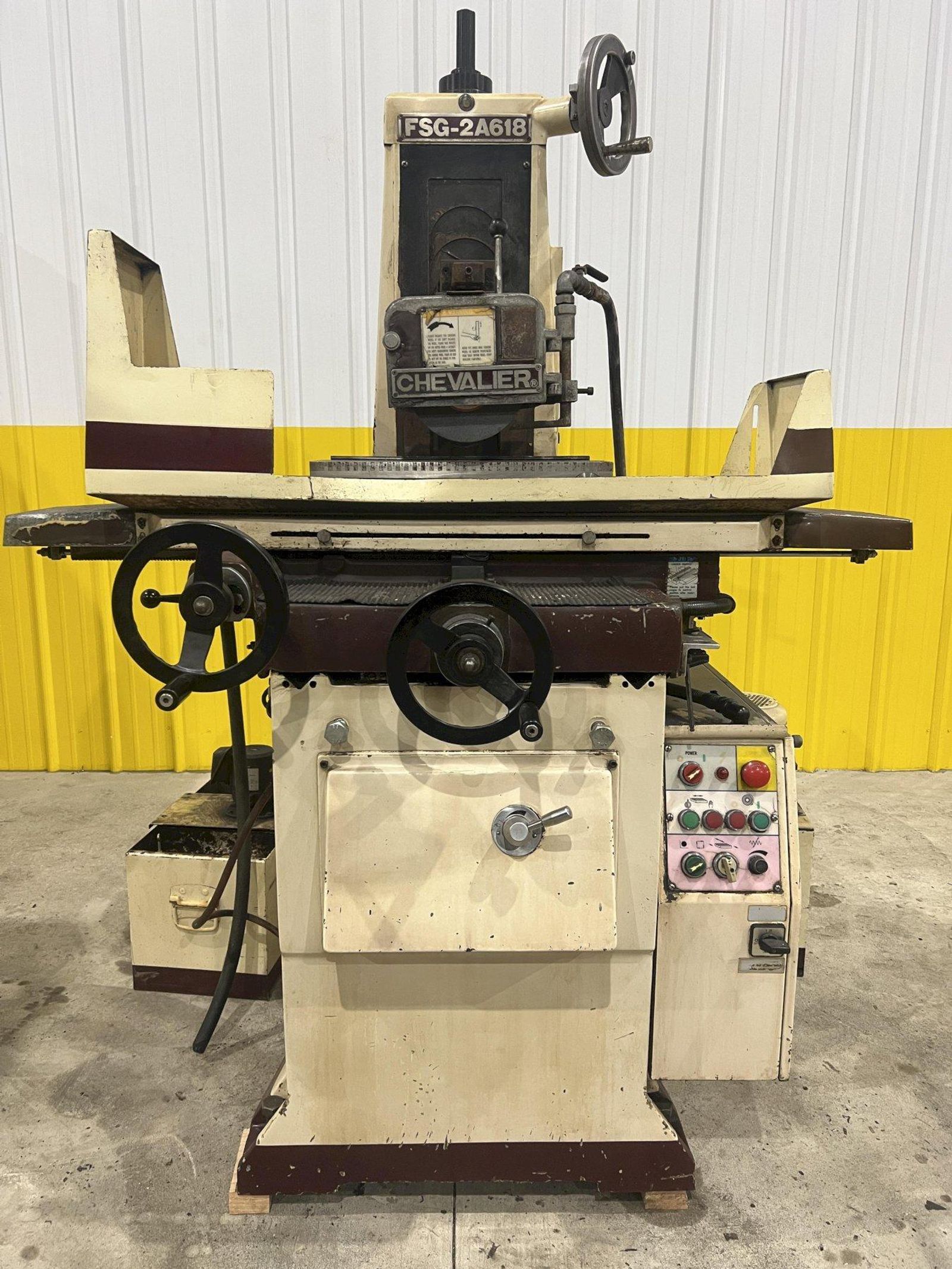

MODEL ................................... FSG-2A618
CAPACITY
GRINDING LENGTH ......................... 18.0"
GRINDING WIDTH .......................... 6.0"
DISTANCE TABLE TO CENTERLINE OF WHEEL ... 17.7"
MAX. TABLE LOAD ......................... 462 LBS
TABLE
TABLE SIZE .............................. 5.9" X 18.1"
MAX. TABLE TRAVEL - MANUAL .............. 20.1
TABLE SPEED (VARIABLE) .................. 16 ~ 82 FPM
TRAVERSE MOVEMENT (Z)
FEED SPEED .............................. 37 IPM
AUTO TRAVERSE MOVEMENT .................. 0.02" ~ 0.24"
MAX. MANUAL TRAVEL ..................... 7.1"
SPINDLE
SPINDLE SPEED ........................... 60 HZ, 3450 RPM / 50 HZ 2850 RPM
SPINDLE MOTOR ........................... 2 HP
WHEEL DIMENSION ......................... 8" O.D. X 0.5" WIDTH X 1.3" BORE
Brand
Not Specified
Type
Grinders
Stock No.
20715
 |
419-269-2000 |
Stock #: 20715
MODEL ................................... FSG-2A618
CAPACITY
GRINDING LENGTH ......................... 18.0"
GRINDING WIDTH .......................... 6.0"
DISTANCE TABLE TO CENTERLINE OF WHEEL ... 17.7"
MAX. TABLE LOAD ......................... 462 LBS
TABLE
TABLE SIZE .............................. 5.9" X 18.1"
MAX. TABLE TRAVEL - MANUAL .............. 20.1
TABLE SPEED (VARIABLE) .................. 16 ~ 82 FPM
TRAVERSE MOVEMENT (Z)
FEED SPEED .............................. 37 IPM
AUTO TRAVERSE MOVEMENT .................. 0.02" ~ 0.24"
MAX. MANUAL TRAVEL ..................... 7.1"
SPINDLE
SPINDLE SPEED ........................... 60 HZ, 3450 RPM / 50 HZ 2850 RPM
SPINDLE MOTOR ........................... 2 HP
WHEEL DIMENSION ......................... 8" O.D. X 0.5" WIDTH X 1.3" BORE
