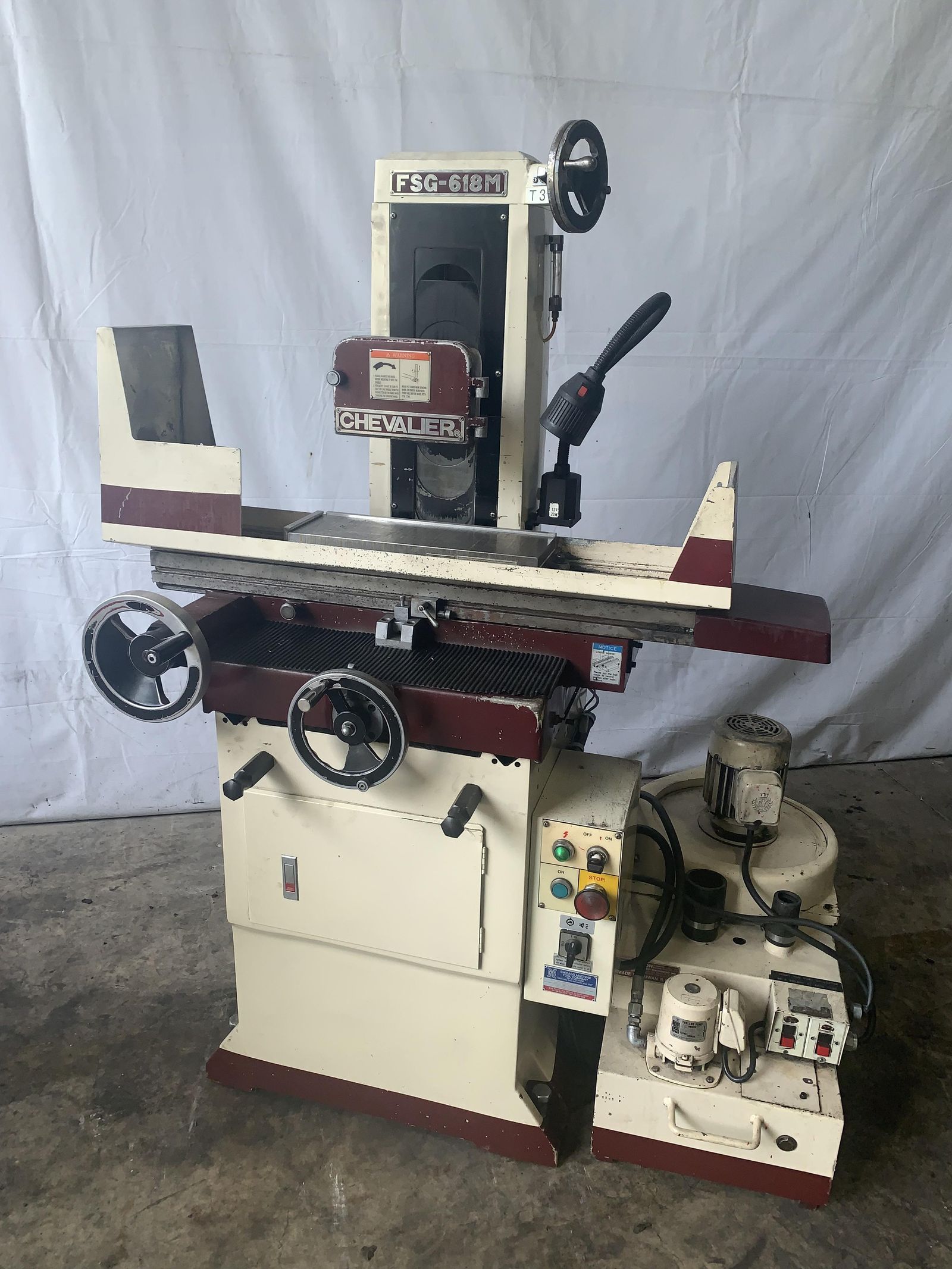

6" X 18" CHEVALIER #FSG-618M HAND FEED SURFACE GRINDER: STOCK #11061

Stock #: 11061

Equipped With

SERIAL ............................ A3816020
MODEL ............................. FSG-618M
YEAR NEW .......................... 1994
SIZE OF PERMANENT MAGNETIC CHUCK .. 6" X 18" (NEW)
MAXIMUM LONGITUDINAL TRAVEL ....... 19"

MAXIMUM CROSS FEED TRAVEL ......... 7"

STANDARD WHEEL SIZE ............... 8" X 1/2" X 1-1/4"

BALL BEARING TABLE ................ YES

WORK LIGHT ........................ YES

COOLANT UNIT ...................... YES

TABLE END GUARDS .................. YES
MAIN DRIVE MOTOR .................. 2 HP 230/460/3/60







Buy Machines

6" X 18" CHEVALIER #FSG-618M HAND FEED SURFACE GRINDER: STOCK #11061

Stock # 11061

Share Machine
Print Details

Machine Specifications

SERIAL ............................ A3816020
MODEL ............................. FSG-618M
YEAR NEW .......................... 1994
SIZE OF PERMANENT MAGNETIC CHUCK .. 6" X 18" (NEW)
MAXIMUM LONGITUDINAL TRAVEL ....... 19"

MAXIMUM CROSS FEED TRAVEL ......... 7"

STANDARD WHEEL SIZE ............... 8" X 1/2" X 1-1/4"

BALL BEARING TABLE ................ YES

WORK LIGHT ........................ YES

COOLANT UNIT ...................... YES

TABLE END GUARDS .................. YES
MAIN DRIVE MOTOR .................. 2 HP 230/460/3/60







Specifications
Dimensions 53 X 35 X 67
Weight 1500 pounds
