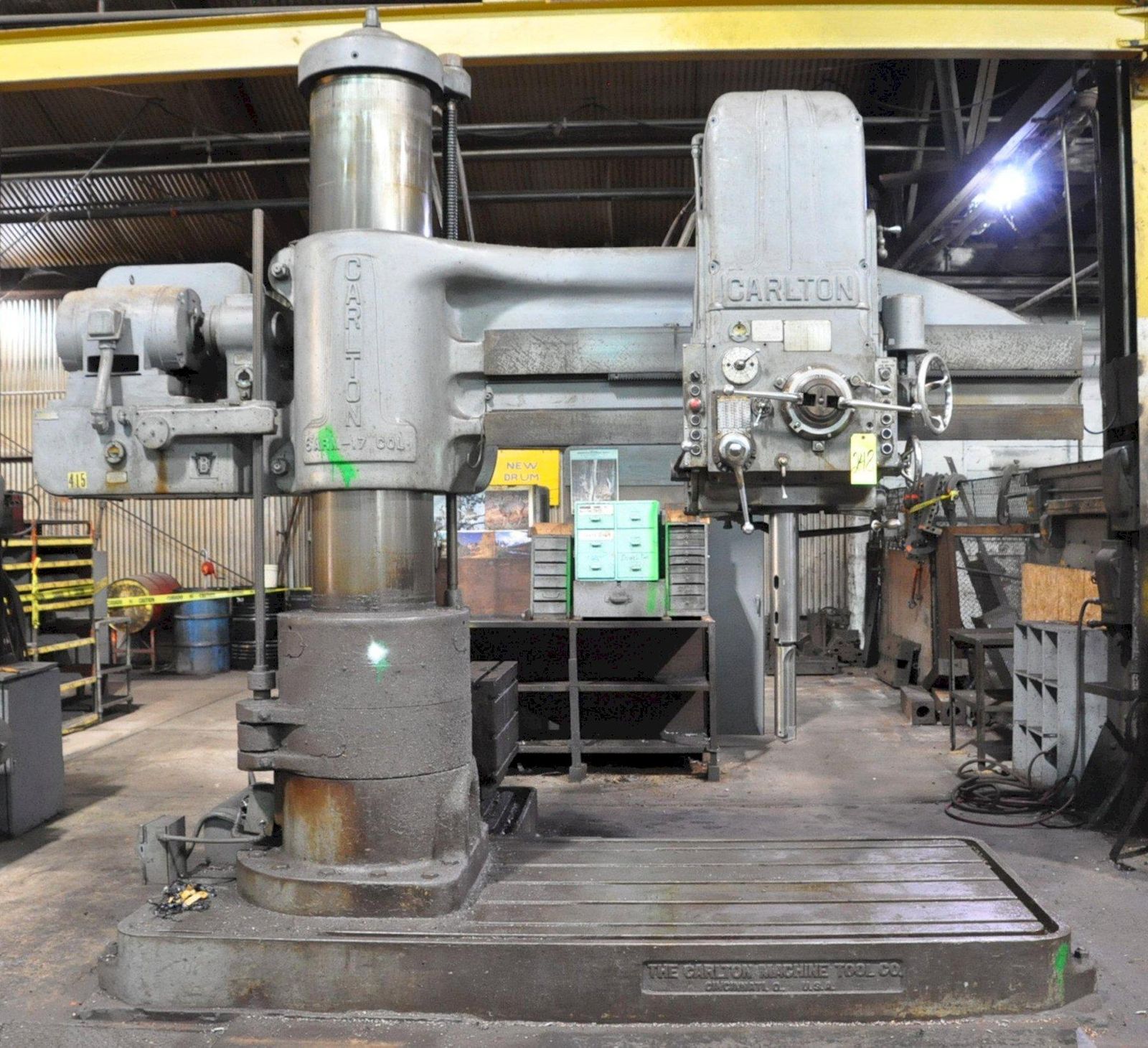

6' X 17" CARLTON MODEL 3A RADIAL ARM DRILL: STOCK 17339

Stock #: 17339

Equipped With

SERIAL ...................... 3A4723


MODEL ....................... 3A


LENGTH OF ARM ............... 72" (6')


DIAMETER OF COLUMN .......... 17"


AREA OF BASE ................ 77" X 42"


SPINDLE SPEEDS .............. (36) 15 TO 1500 RPM


FEEDS ....................... (18) .004 TO .125 IPR


TAP LEADS ................... 8, 11-1/2, 14, 18 TPI


DIAMETER OF SPINDLE ......... 3-3/16"


TAPER IN SPINDLE ............ #5 MT


SPINDLE TRAVEL .............. 18"


DISTANCE SPINDLE TO COLUMN .. 15" MIN, 72" MAX


DISTANCE SPINDLE TO BASE .... 10-1/2" MIN, 66" MAX


TRAVEL OF HEAD ON ARM ....... 57"


TRAVEL OF ARM ON COLUMN ..... 37-1/2"


POWER CLAMPING .............. YES


POWER HEAD TRAVERSE ......... YES


POWER ARM ELEVATION ......... YES


COOLANT ..................... YES


MOTOR - SPINDLE ............. 20 HORSEPOWER
