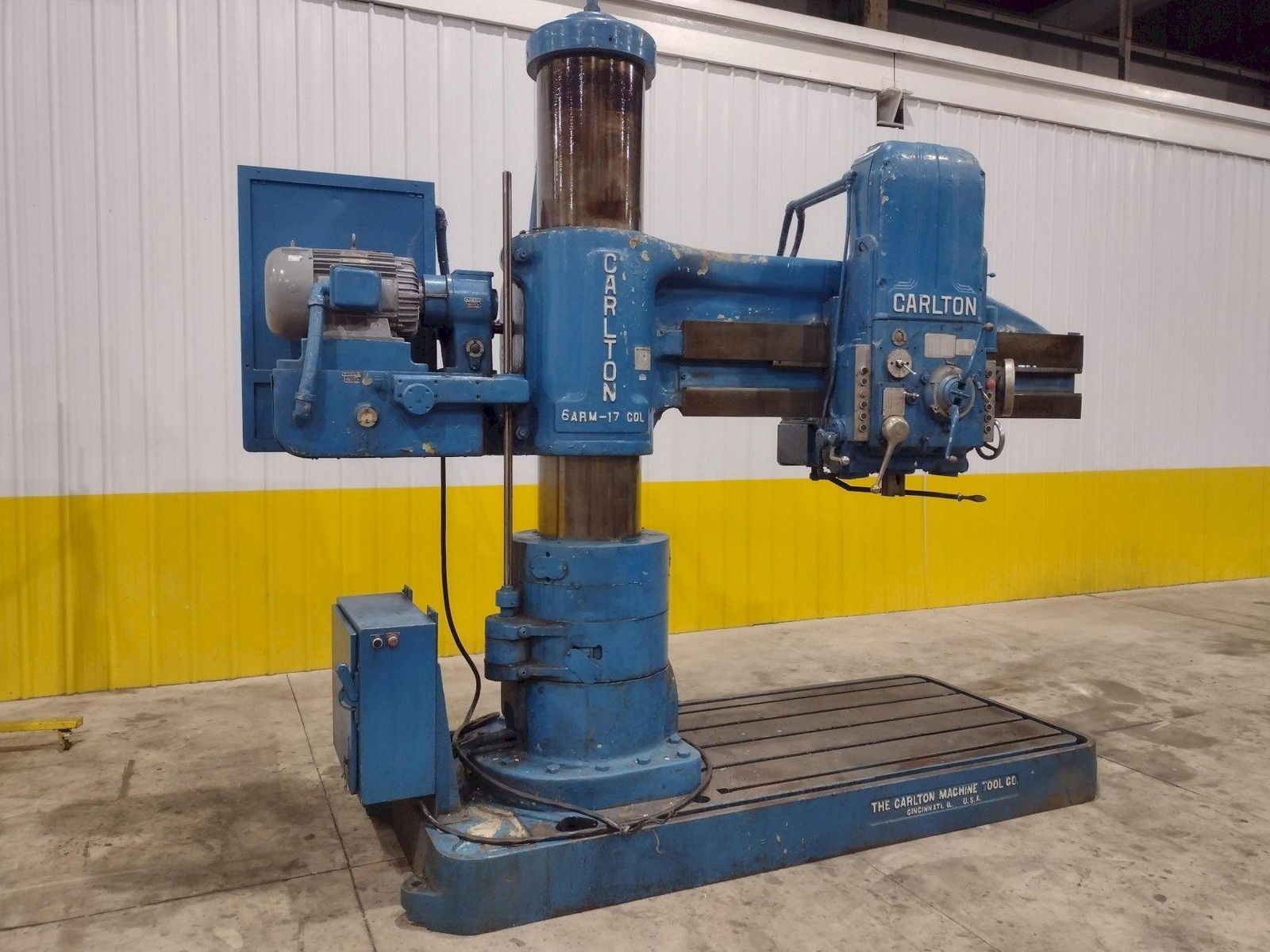

6' X 17" CARLTON MODEL #4A RADIAL ARM DRILL PRESS: STOCK #22087

Overview

SERIAL ........................... 4A 5720
MODEL ............................ 4A
YEAR NEW ......................... 1976
AREA OF BASE ..................... 77" X 48"
SPINDLE SPEEDS ................... (36) 12 TO 1200 RPM
SPINDLE FEEDS .................... (18) .004 TO .125 IPR
TAPS.............................. 8, 11-1/2, 14, 18 TPI
DIAMETER OF SPINDLE .............. 3-3/16"
TAPER IN SPINDLE ................. #5 MT
SPINDLE TRAVEL ................... 18"
DISTANCE SPINDLE TO COLUMN ....... 13-1/2" TO 72" MAXIMUM
DISTANCE SPINDLE TO BASE ......... 14-1/2" TO 72" MAXIMUM
TRAVEL OF HEAD ON ARM ............ 58-3/4"
TRAVEL OF ARM ON COLUMN .......... 37-1/2"
POWER HEAD CLAMPING .............. YES
POWER HEAD TRAVERSE .............. YES
POWER ARM ELEVATION .............. YES
POWER ARM CLAMPING ............... YES
COOLANT .......................... YES
MAIN MOTOR ....................... 15 HORSEPOWER

6' X 17" CARLTON MODEL #4A RADIAL ARM DRILL PRESS: STOCK #22087

Brand
CARLTON

Type
Drills, Radial

Stock No.
22087

Print Details

Related Listings

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

6' X 17" CARLTON MODEL #4A RADIAL ARM DRILL PRESS: STOCK #22087

Stock #: 22087

Equipped With

SERIAL ........................... 4A 5720
MODEL ............................ 4A
YEAR NEW ......................... 1976
AREA OF BASE ..................... 77" X 48"
SPINDLE SPEEDS ................... (36) 12 TO 1200 RPM
SPINDLE FEEDS .................... (18) .004 TO .125 IPR
TAPS.............................. 8, 11-1/2, 14, 18 TPI
DIAMETER OF SPINDLE .............. 3-3/16"
TAPER IN SPINDLE ................. #5 MT
SPINDLE TRAVEL ................... 18"
DISTANCE SPINDLE TO COLUMN ....... 13-1/2" TO 72" MAXIMUM
DISTANCE SPINDLE TO BASE ......... 14-1/2" TO 72" MAXIMUM
TRAVEL OF HEAD ON ARM ............ 58-3/4"
TRAVEL OF ARM ON COLUMN .......... 37-1/2"
POWER HEAD CLAMPING .............. YES
POWER HEAD TRAVERSE .............. YES
POWER ARM ELEVATION .............. YES
POWER ARM CLAMPING ............... YES
COOLANT .......................... YES
MAIN MOTOR ....................... 15 HORSEPOWER
