Machine Information

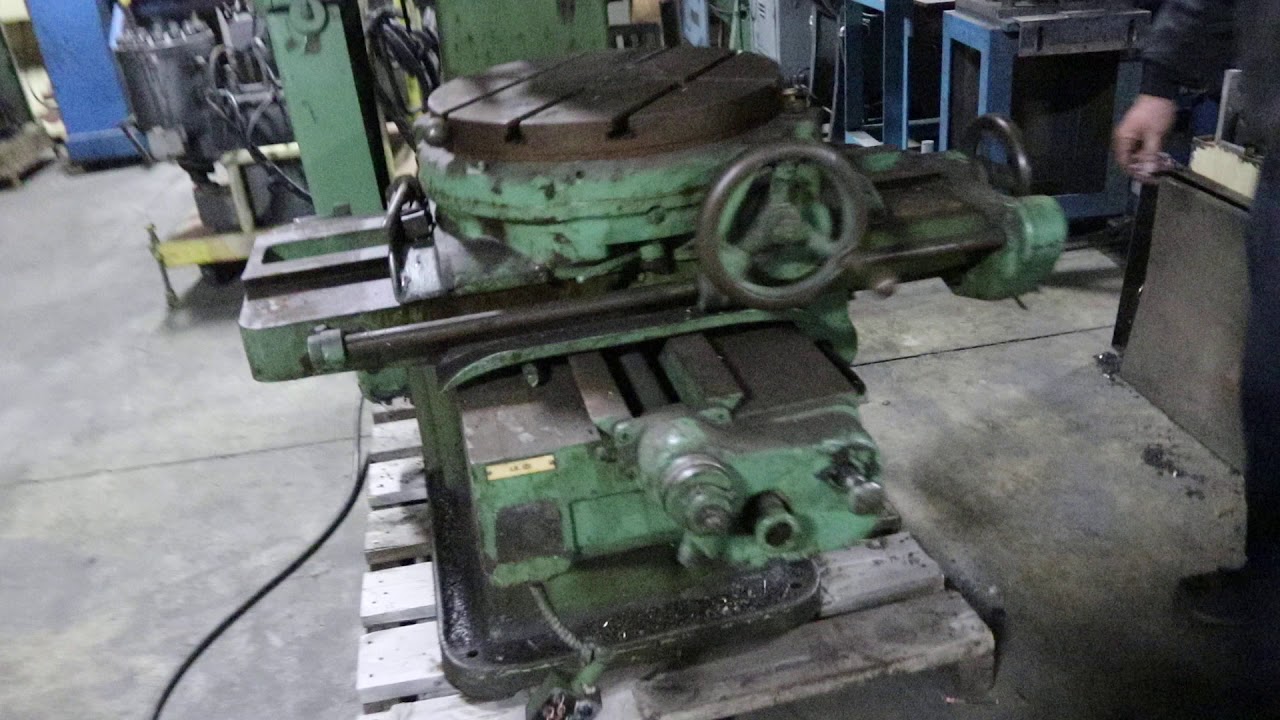

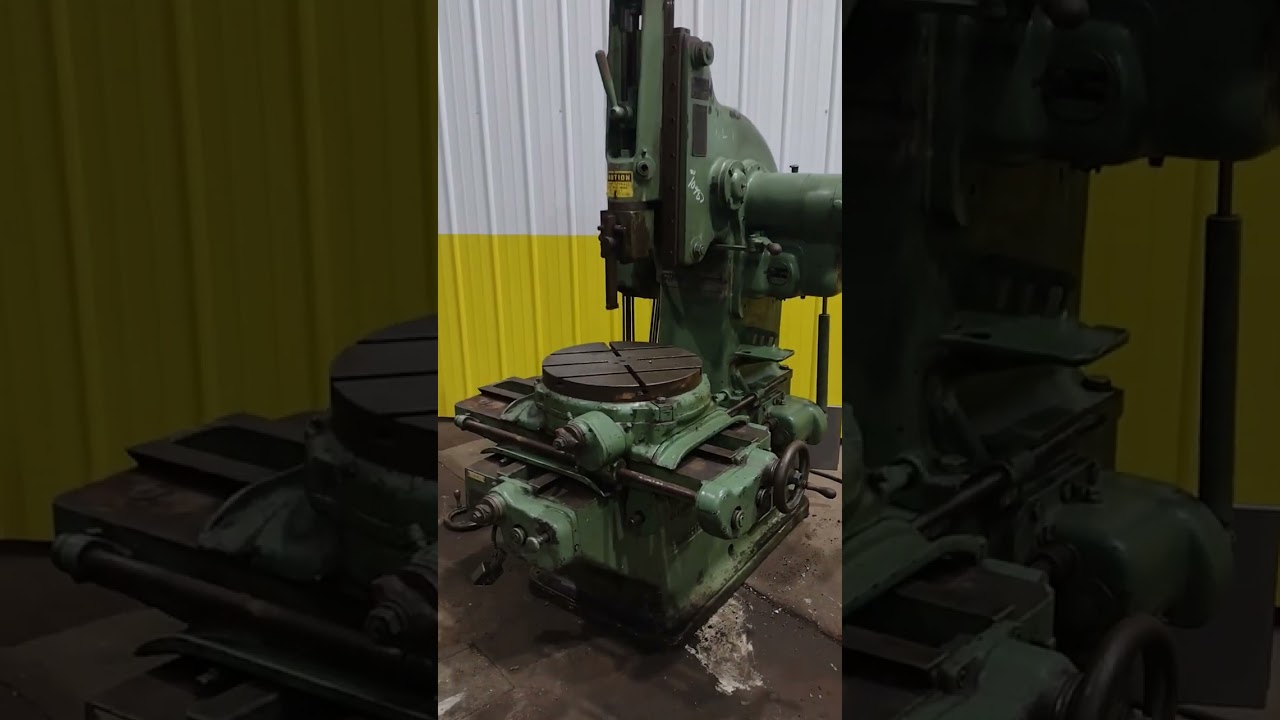

6" PRATT & WHITNEY VERTICAL SHAPER/SLOTTER: STOCK #10987

Stock #: 10987

Equipped With

SERIAL ................................... 683
MODEL .................................... B
LENGTH OF STROKE ......................... 6"
VERTICAL ADJUSTMENT OF RAM ............... 10"
DIAMETER OF ROTARY TABLE ................. 19-1/2"
STROKES PER MINUTE ....................... 33, 49, 76, 116
LONGITUDINAL TABLE TRAVEL ................ 25"
CROSS TABLE TRAVEL ....................... 20"
LONGITUDINAL & CROSS TABLE FEEDS ......... .0027" TO .0234"
ROTARY TABLE FEEDS ....................... .009" TO .085"
COLUMN TO CENTERLINE OF RAM .............. 18-3/4"
ANGULAR RAM ADJUSTMENT ................... 0 TO 5 DEGREE
FLOOR TO TABLE ........................... 37"
MOTOR, HORSEPOWER ........................ 3
