Machine Information

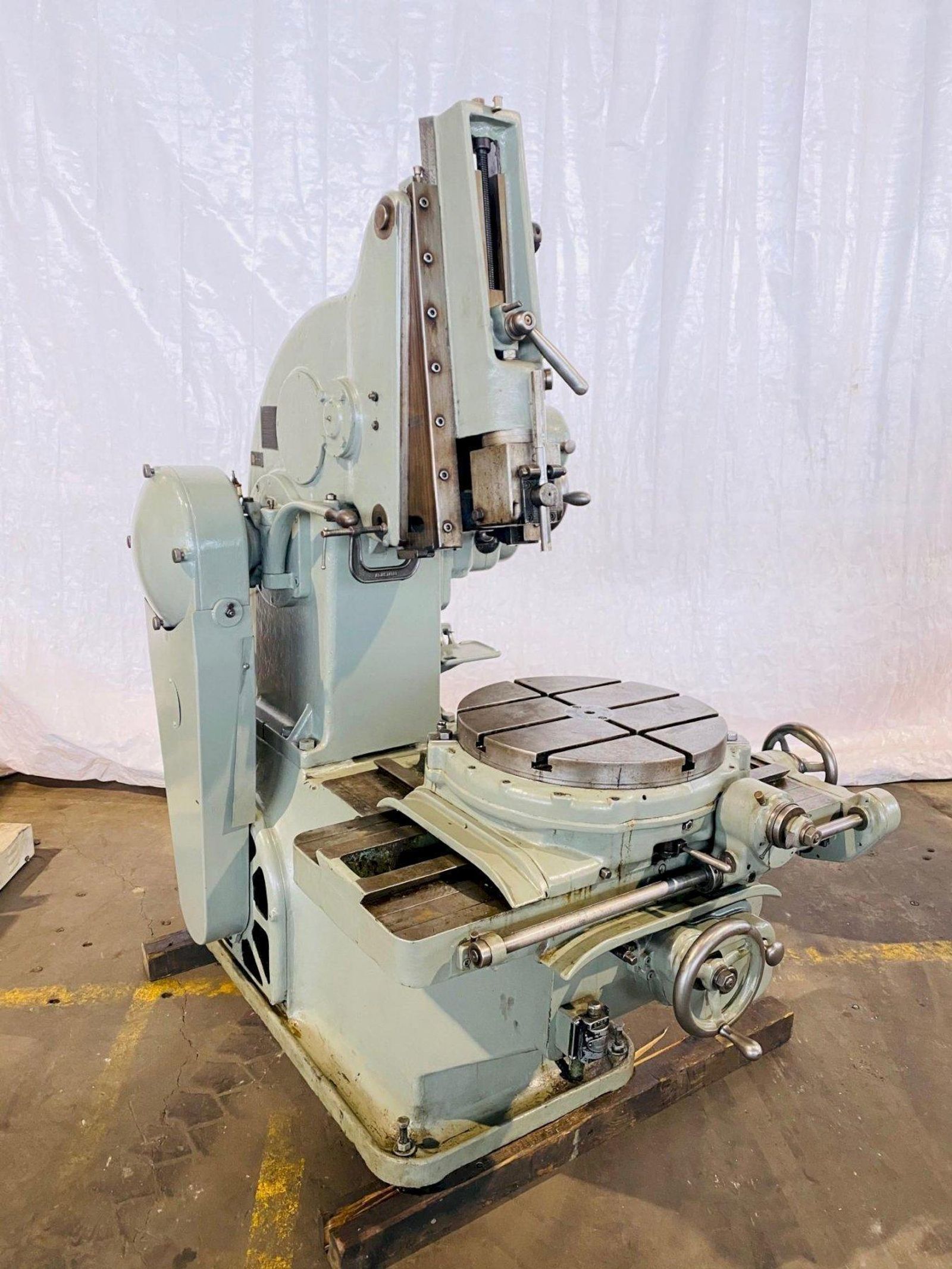

6" PRATT & WHITNEY MODEL "B" VERTICAL SHAPER: STOCK #18071

Stock #: 18071

Equipped With

SERIAL ............................... 473
MODEL ................................ B-6
LENGTH OF STROKE ..................... 0 TO 6"
TABLE TO RAM (MAXIMUM) ............... 15"
VERTICAL ADJUSTMENT OF RAM ........... 10"
ROTARY TABLE DIAMETER (T-SLOTTED) .... 19-1/2"
STROKES PER MINUTE ................... 33 - 49 - 76 - 116

LONGITUDINAL TABLE TRAVEL ............ 25"

CROSS TABLE TRAVEL ................... 20"

LONGITUDINAL & CROSS TABLE FEEDS ..... .0027" TO .0243" PER STROKE

ROTARY TABLE FEED .................... .009" TO .085" PER STROKE

COLUMN TO RAM CENTERLINE ............. 18-3/4"

ANGULAR RAM ADJUSTMENT ............... 0 TO 5 DEGREES

FLOOR TO TABLE ....................... 37"
MOTOR ................................ 3 HORSEPOWER

Buy Machines

6" PRATT & WHITNEY MODEL "B" VERTICAL SHAPER: STOCK #18071

Stock # 18071

Share Machine
Print Details

Machine Specifications

SERIAL ............................... 473
MODEL ................................ B-6
LENGTH OF STROKE ..................... 0 TO 6"
TABLE TO RAM (MAXIMUM) ............... 15"
VERTICAL ADJUSTMENT OF RAM ........... 10"
ROTARY TABLE DIAMETER (T-SLOTTED) .... 19-1/2"
STROKES PER MINUTE ................... 33 - 49 - 76 - 116

LONGITUDINAL TABLE TRAVEL ............ 25"

CROSS TABLE TRAVEL ................... 20"

LONGITUDINAL & CROSS TABLE FEEDS ..... .0027" TO .0243" PER STROKE

ROTARY TABLE FEED .................... .009" TO .085" PER STROKE

COLUMN TO RAM CENTERLINE ............. 18-3/4"

ANGULAR RAM ADJUSTMENT ............... 0 TO 5 DEGREES

FLOOR TO TABLE ....................... 37"
MOTOR ................................ 3 HORSEPOWER
