Machine Information

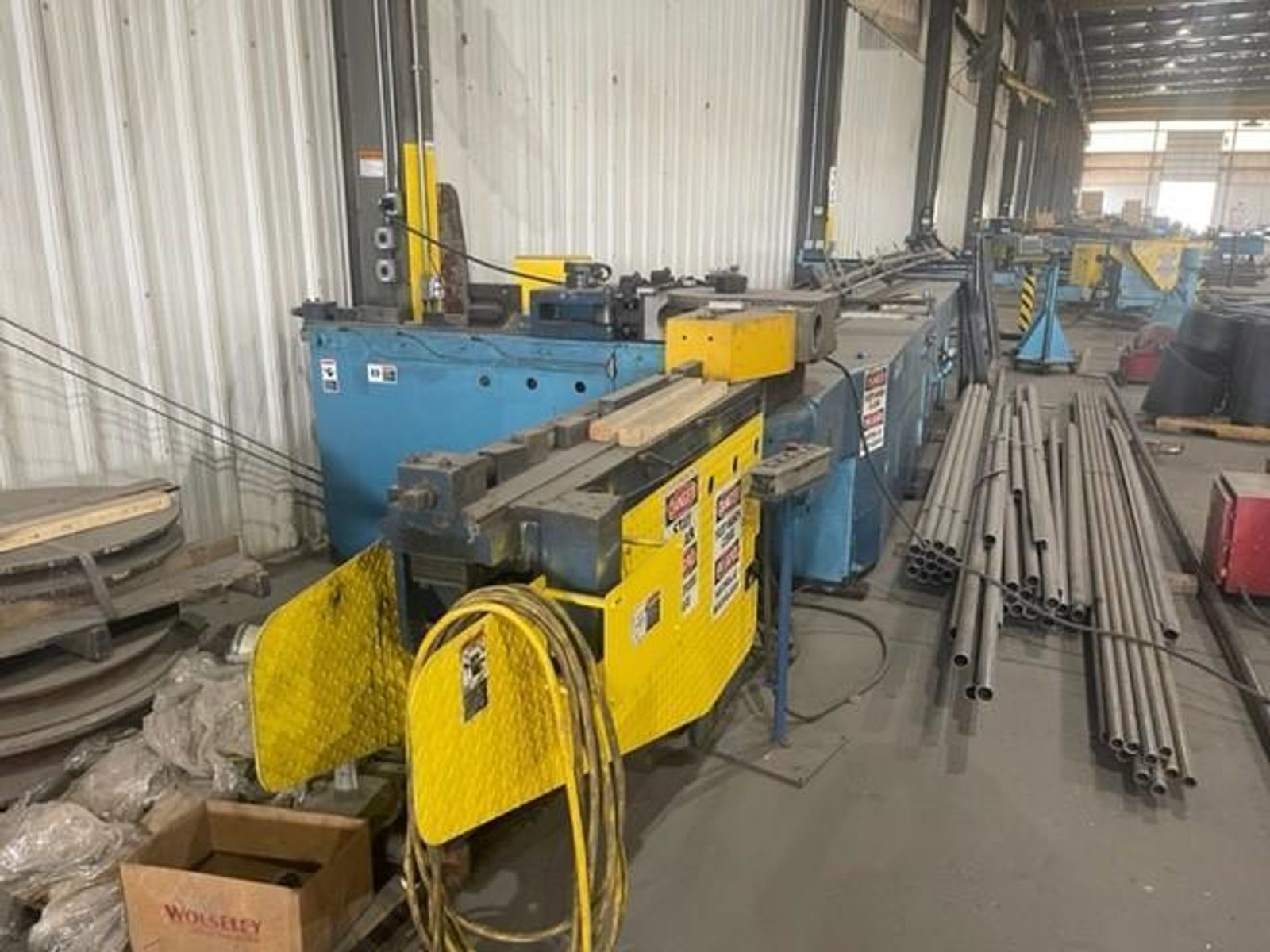

6" PINES MODEL #4 CNC PIPE & TUBE BENDER: STOCK 17513

Stock #: 17513

Equipped With

SERIAL 11405-79209
MODEL #4
NON-FERROUS TUBE .......... 6" O.D. X .250" WALL
STEEL TUBE  ............... 6" O.D. X .165" WALL
STEEL PIPE SCHEDULE 80 .... 4"
STAINLESS TUBE  ........... 4-1/2" O.D. X .250" WALL
STEEL BAR (ROUND)  ........ 3-1/2" DIA.
STEEL BAR (SQUARE)  ....... 3-1/8"
MAXIMUM RADIUS STANDARD ... 24"
MAXIMUM BEND ANGLE ........ 180 DEGREES + OVERBEND
BENDING ARM SPEED ......... 3 RPM
OPERATING PRESSURE ........ 2,000 PSI
WIPER DIE HOLDER .......... YES
PRESSURE DIE ASSIST ....... YES
MANDREL EXTRACTOR ......... YES
HYDRAULIC MOTOR ........... 20 HORSEPOWER


Buy Machines

6" PINES MODEL #4 CNC PIPE & TUBE BENDER: STOCK 17513

Stock # 17513

Share Machine
Print Details

Machine Specifications

SERIAL 11405-79209
MODEL #4

NON-FERROUS TUBE .......... 6" O.D. X .250" WALL
STEEL TUBE  ............... 6" O.D. X .165" WALL
STEEL PIPE SCHEDULE 80 .... 4"
STAINLESS TUBE  ........... 4-1/2" O.D. X .250" WALL
STEEL BAR (ROUND)  ........ 3-1/2" DIA.
STEEL BAR (SQUARE)  ....... 3-1/8"
MAXIMUM RADIUS STANDARD ... 24"
MAXIMUM BEND ANGLE ........ 180 DEGREES + OVERBEND
BENDING ARM SPEED ......... 3 RPM
OPERATING PRESSURE ........ 2,000 PSI
WIPER DIE HOLDER .......... YES
PRESSURE DIE ASSIST ....... YES
MANDREL EXTRACTOR ......... YES
HYDRAULIC MOTOR ........... 20 HORSEPOWER
