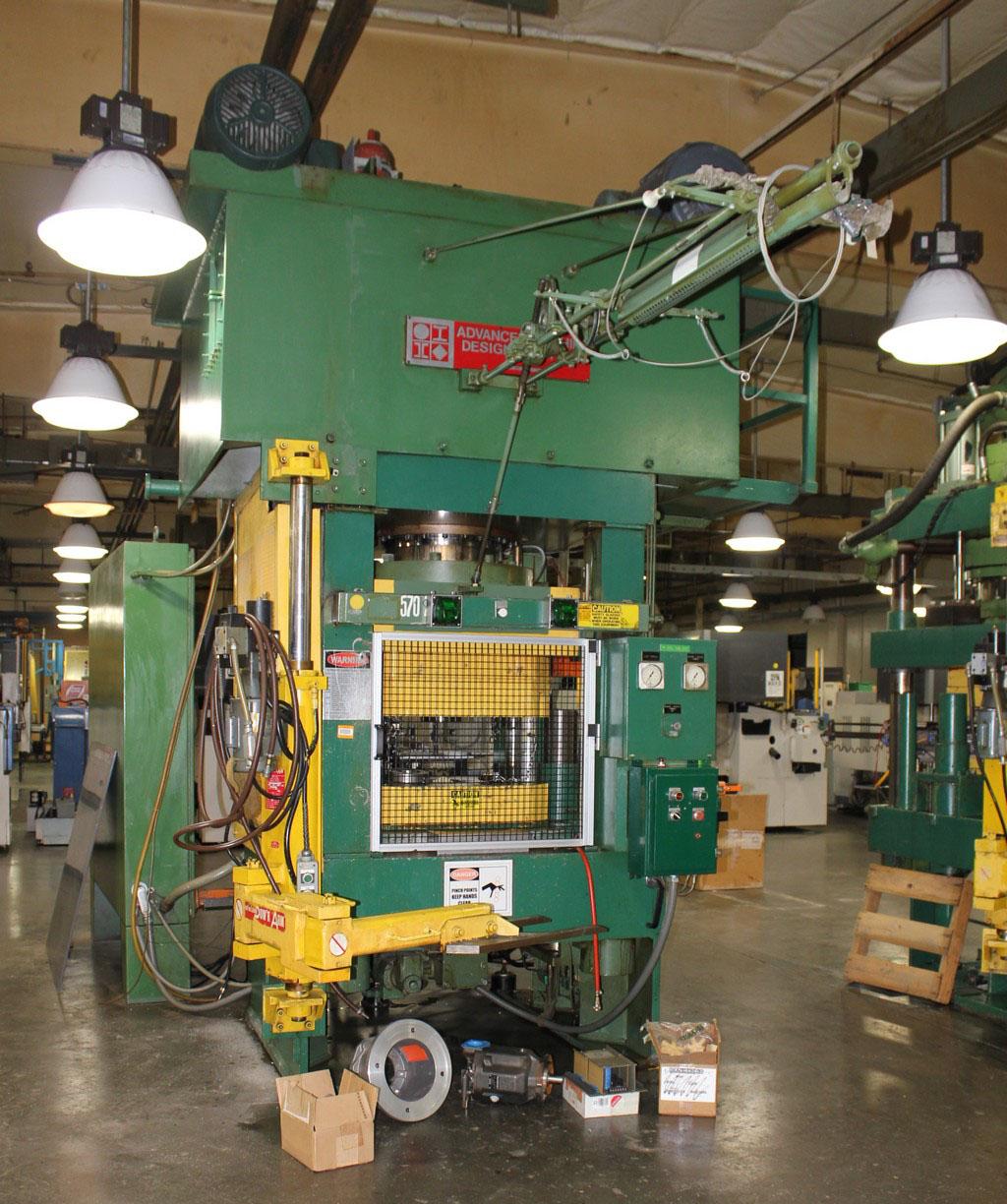

570 TON ADVANCED HYDRAULIC STRAIGHT SIDE PRESS: STOCK #10930

Stock #: 10930

Equipped With

SERIAL .............................. 8302
MODEL ............................... 570-2230
YEAR ................................ 1983
CAPACITY ............................ 570 TONS
RAM STROKE .......................... 8"
DAYLIGHT ............................ 32"
CLOSED HEIGHT ....................... 24"
BED SIZE (L-R, F-B) ................. 36" X 53"
RAM SIZE (L-R, F-B) ................. 36" X 34"
BOLSTER SIZE ........................ 34-1/2" X 34-1/2" X 2-1/2"

RAM SPEEDS:
APPROACH ............................ 300 IPM
FORMING ............................. 0.05-50 IPM
RETURN .............................. 300 IPM
RAM PISTON DIAMETER ................. 20"
DIMENSIONS .......................... 112" X 90" X 157"
WEIGHT .............................. 55,000 LBS (APPROX)

MILWAUKEE POWER ARM
MODEL ............................... MPA-50-24-24-24-SHV
WORK LOAD ........................... 500 LBS
WORKING RADIUS ...................... 48"

EQUIPPED WITH:
BED CUSHION (20 TON)
STI LIGHT CURTAINS
TONNAGE VALVE CONTROL WITH GAUGE
TOOL EJECTOR
AUTOMATIC LOADER
POSSONS SAFETY HAND STRAP CONTROLS
BARRIER SAFETY GUARDS
DUAL INFRARED HAND CONTROL
DIE SET ............................. 32" X 26
MOTOR ............................... 150/75
