Machine Information

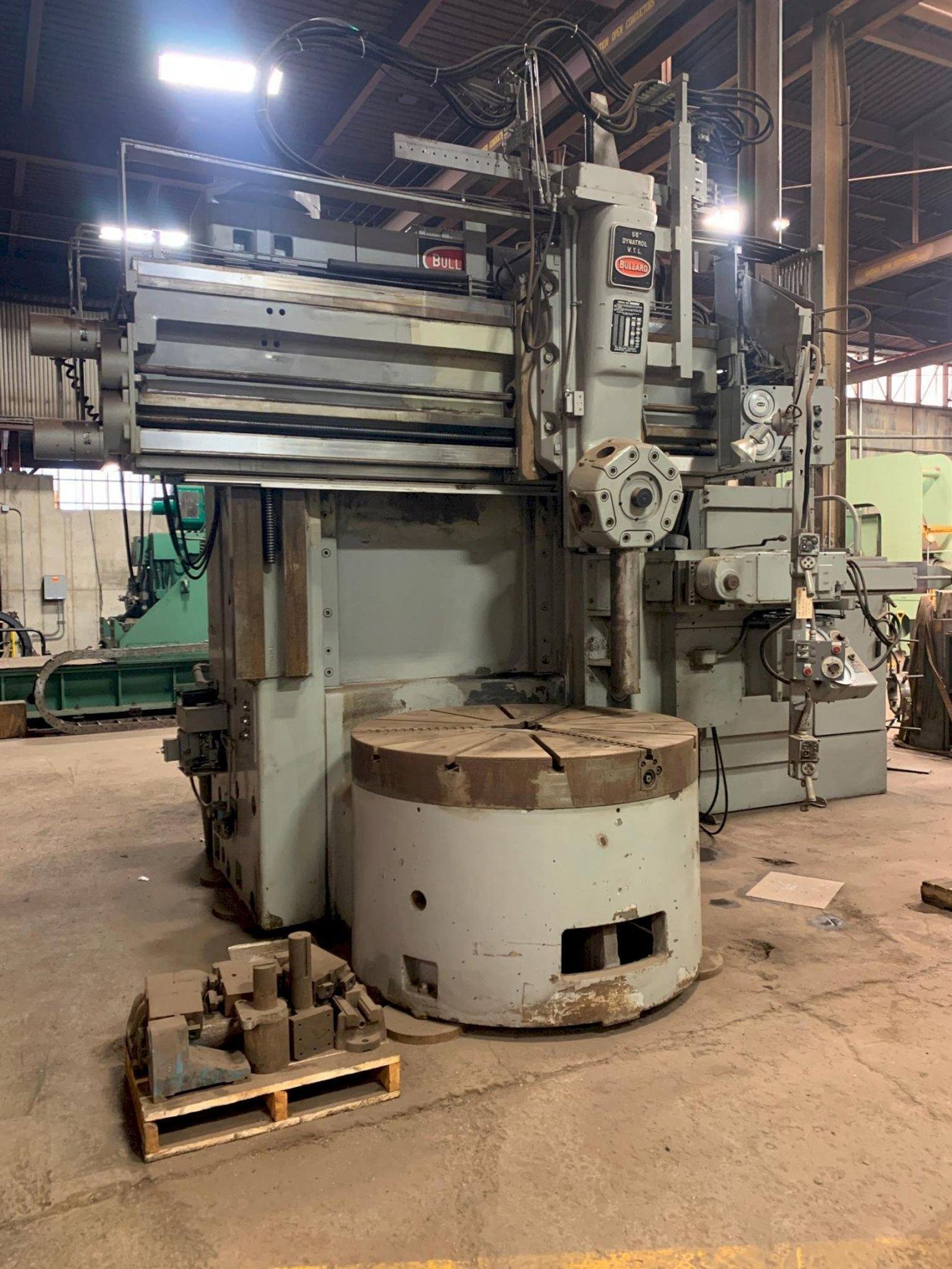

56" BULLARD DYNATROL VERTICAL TURRET LATHE: STOCK #16406

Stock #: 16406

Equipped With

TABLE/CHUCK DIAMETER ................ 56"
MAX SWING ........................... 59" W/SIDE HEAD IN WORKING POSITION
MAX SWING ........................... 68" W/SIDE HEAD BELOW TABLE TOP
HEIGHT UNDER RAIL ................... 40"
RAIL ADJUSTMENT ..................... 30"
TABLE SPEEDS ........................ (20) 5 TO 200 RPM
FEEDS ............................... .001" TO .250" PER/REV
CREEP FEED .......................... YES
FEED INDICATORS ..................... YES
VERTICAL TRAVEL OF TURRET ........... 26" VERTICAL
TURRET TOOL POSITIONS ............... YES
TURRET TRAVEL ON RAIL ............... RIGHT 31" & LEFT 34-1/2"
TURRET SWIVEL ....................... 30 DEGREES, RIGT OR LEFT
VERTICAL SIDE HEAD TRAVELS .......... 38-3/4" VERTICAL
HORIZONTAL SIDE HEAD TRAVELS ........ 23-3/4"
PENDANT CONTROL ..................... YES
AUTOMATIC LUBRICATION ............... YES
MOTOR ............................... 50 HP

Buy Machines

56" BULLARD DYNATROL VERTICAL TURRET LATHE: STOCK #16406

Stock # 16406

Share Machine
Print Details

Machine Specifications

TABLE/CHUCK DIAMETER ................ 56"
MAX SWING ........................... 59" W/SIDE HEAD IN WORKING POSITION
MAX SWING ........................... 68" W/SIDE HEAD BELOW TABLE TOP
HEIGHT UNDER RAIL ................... 40"
RAIL ADJUSTMENT ..................... 30"
TABLE SPEEDS ........................ (20) 5 TO 200 RPM
FEEDS ............................... .001" TO .250" PER/REV
CREEP FEED .......................... YES
FEED INDICATORS ..................... YES
VERTICAL TRAVEL OF TURRET ........... 26" VERTICAL
TURRET TOOL POSITIONS ............... YES
TURRET TRAVEL ON RAIL ............... RIGHT 31" & LEFT 34-1/2"
TURRET SWIVEL ....................... 30 DEGREES, RIGT OR LEFT
VERTICAL SIDE HEAD TRAVELS .......... 38-3/4" VERTICAL
HORIZONTAL SIDE HEAD TRAVELS ........ 23-3/4"
PENDANT CONTROL ..................... YES
AUTOMATIC LUBRICATION ............... YES
MOTOR ............................... 50 HP
