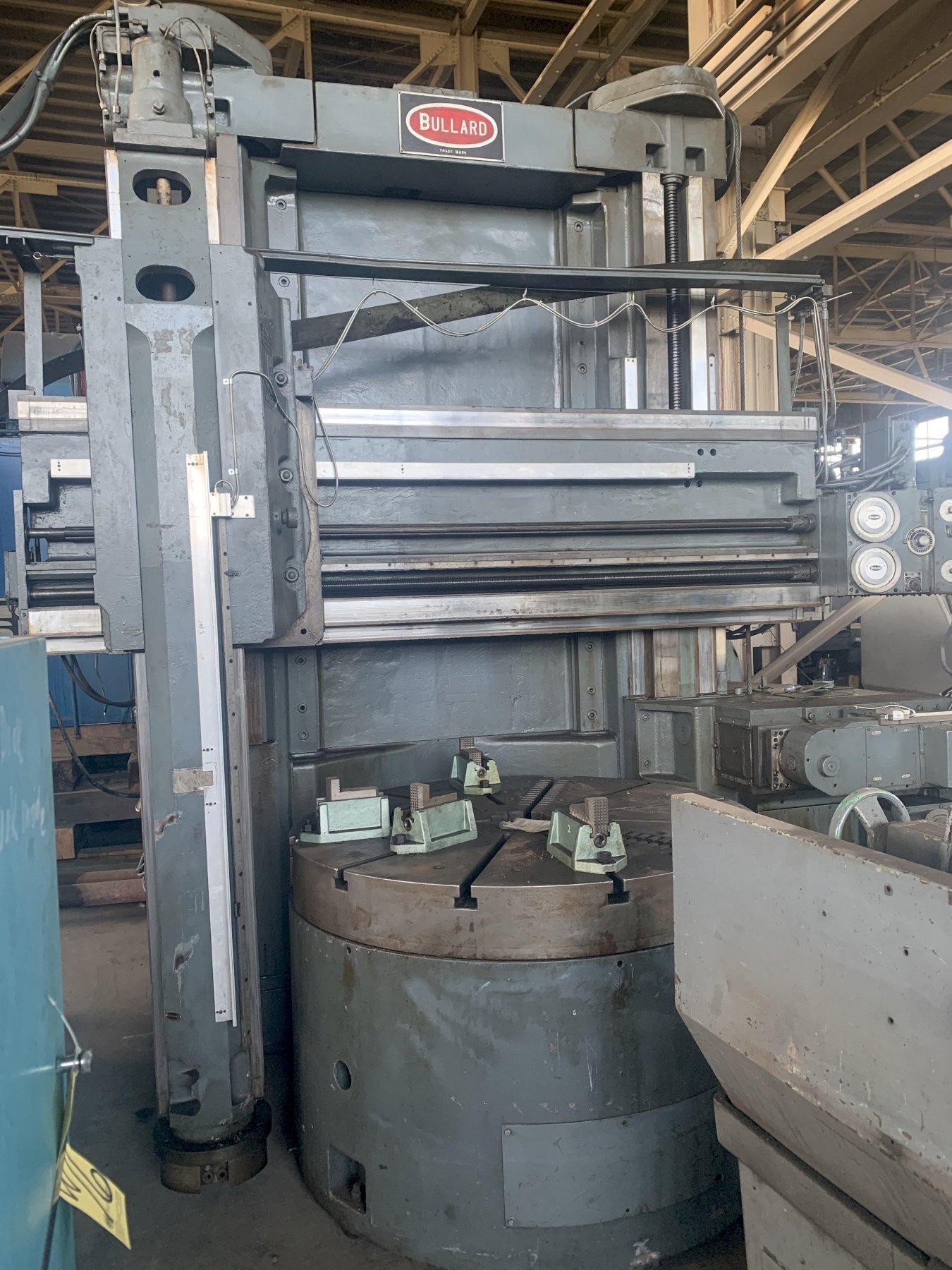

56" BULLARD DYNATROL HI COLUMN VERTICAL BORING MILLL: STOCK #11100

Stock #: 11100

Equipped With

56" BULLARD WITH 4 POSITION POWER INDEX SWIVELLING RAM HEAD & SIDE HEAD

DIAMETER OF CHUCK ......................... 56" 3 JAW, POWERED
SWING, SIDE HEAD BELOW TABLE .............. 68"
SWING, SIDE HEAD IN WORKING POSITION ...... 62"
WORK HEIGHT TO RAIL FROM CHUCK ............ 60"
TABLE SPEEDS .............................. (20) 7 TO 250 RPM
VARIABLE FEED RANGE ....................... .001" TO .250 IPR
POWER FEEDS AND RAPID TRAVERSE ............ RAM AND SIDE HEADS
RAM HEAD .................................. 4 POSITION POWER INDEXING
RAM HEAD SWIVELING ........................ 30 DEGREES IN EITHER DIRECTION
RAM HEAD TRAVEL ........................... 60"
CHROME WAYS ............................... YES
HARDENED & GROUND CROSS FEED SCREW ........ YES
PENDANT CONTROL ........................... YES
4 WAY TOOL POST ON SIDE HEAD .............. YES
MAIN DRIVE MOTOR .......................... 60 HP
