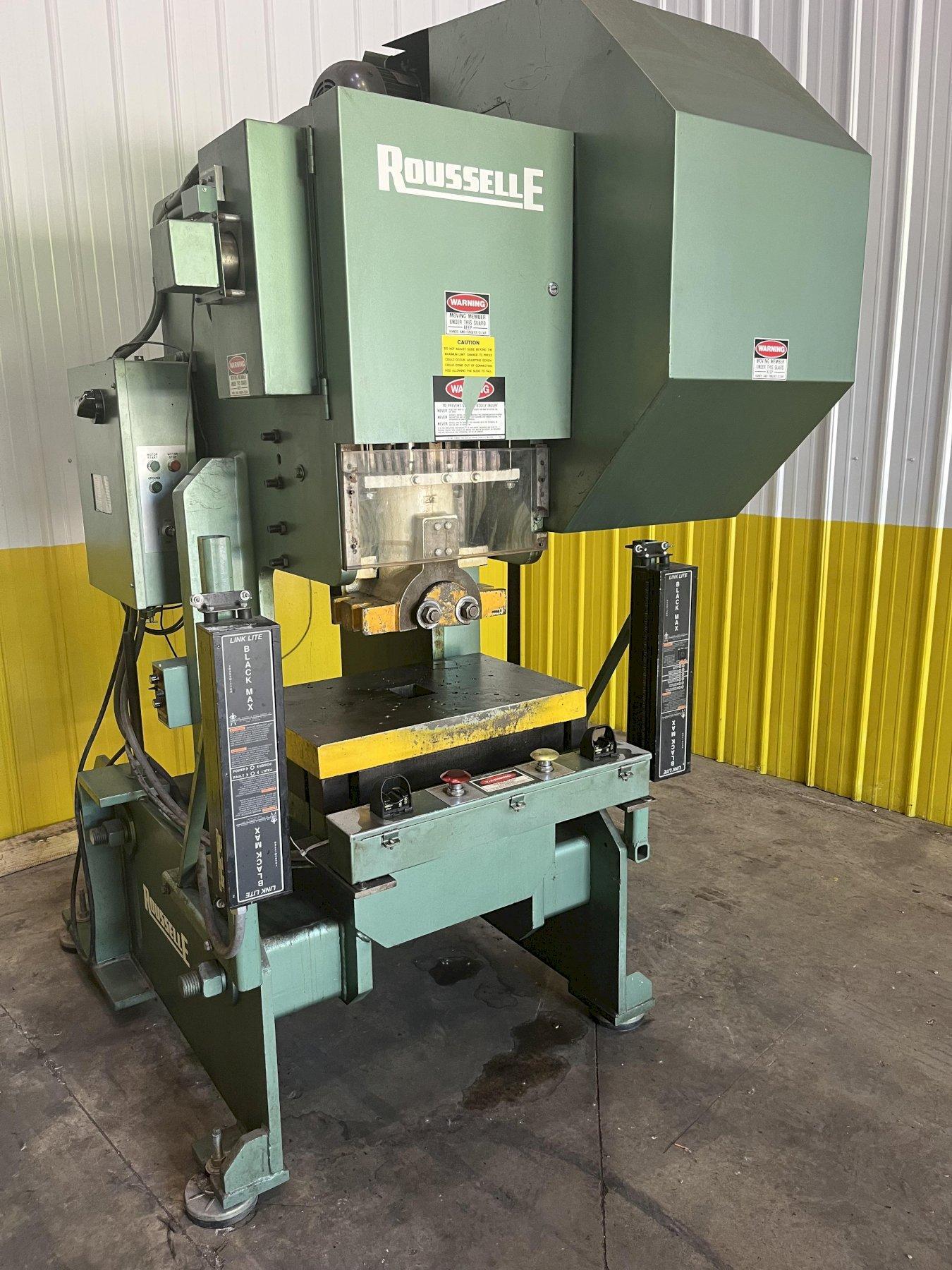

55 TON ROUSSELLE MODEL #B1-55 OBI PRESS, 3" STROKE: STOCK 16744

Stock #: 16744

Equipped With

SERIAL ............. P-32806
MODEL .............. B1-55
CAPACITY ........... 55 TON
STROKE ............. 3"
SHUT HEIGHT ........ 12"
ADJUSTMENT ......... 4"
SPEED .............. 120 SPM
BED ................ 18" X 28"
BOLSTER ............ 2 @ 18" X 28" X 3" (6" TOTAL)
RAM ................ 115.5" X 13"
BETWEEN HOUSINGS ... 18"
LUBE ............... ONE SHOT MANUAL
CLUTCH & BRAKE ..... AIR
COUNTER BALANCE .... AIR
CONTROLS ........... INCH/SINGLE/CONTINUOUS
DUAL PALM BUTTONS .. YES
MOTOR .............. 5 HP

Buy Machines

55 TON ROUSSELLE MODEL #B1-55 OBI PRESS, 3" STROKE: STOCK 16744

Stock # 16744

Share Machine
Print Details

Machine Specifications

SERIAL ............. P-32806
MODEL .............. B1-55
CAPACITY ........... 55 TON
STROKE ............. 3"
SHUT HEIGHT ........ 12"
ADJUSTMENT ......... 4"
SPEED .............. 120 SPM
BED ................ 18" X 28"
BOLSTER ............ 2 @ 18" X 28" X 3" (6" TOTAL)
RAM ................ 115.5" X 13"
BETWEEN HOUSINGS ... 18"
LUBE ............... ONE SHOT MANUAL
CLUTCH & BRAKE ..... AIR
COUNTER BALANCE .... AIR
CONTROLS ........... INCH/SINGLE/CONTINUOUS
DUAL PALM BUTTONS .. YES
MOTOR .............. 5 HP

Specifications
Tonnage 55 tons
Stroke 3 inches
Shut Height 12 inches
Bed W 28 inches
Bed L 18 inches
SPM 120
Air Clutch (Yes/No) yes
Type (BG, Double Action, FW) flywheel
Crank (Single/Double) single
Dimensions 104" HIGH
Weight 8800 pounds
