SERIAL ............... 251084
NEW .................. 1980

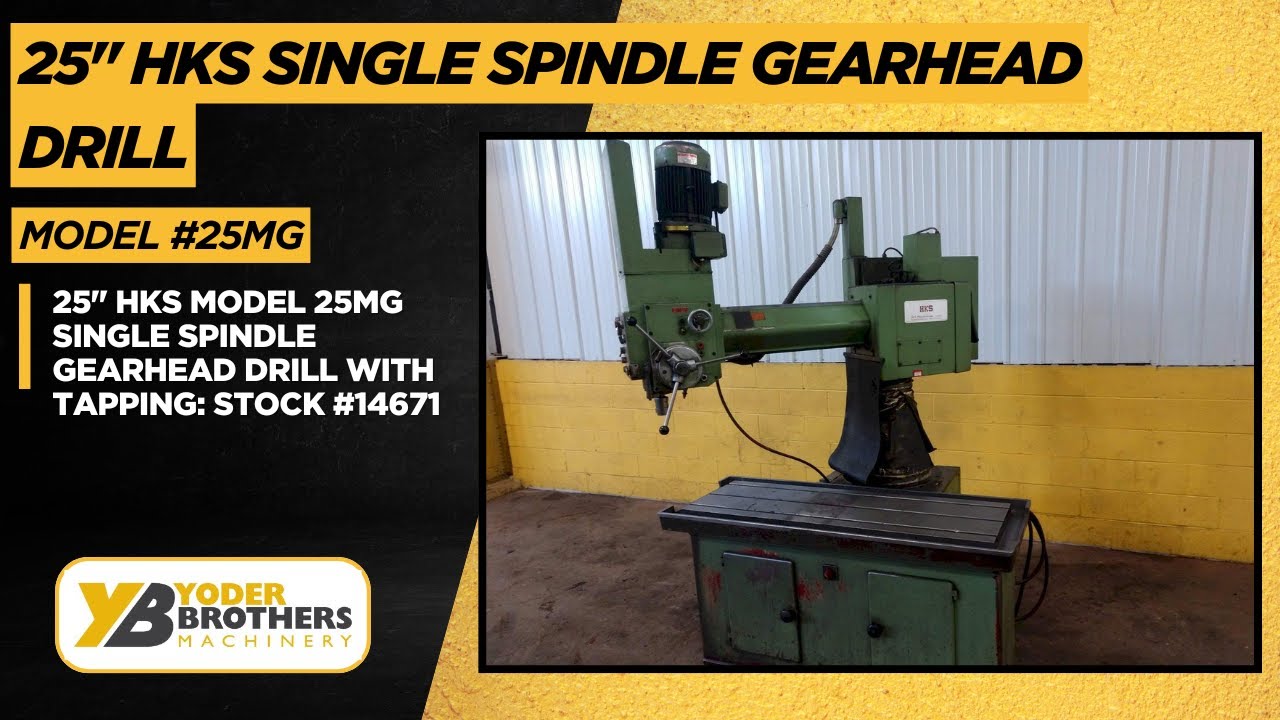

MODEL ................ 25MG
TAPER ................ #4 MT
TRAVEL OF HEAD ....... 25"
SPINDLE TO TABLE ..... 16"
SPINDLE TRAVEL ....... 6-1/2"
SPINDLE SPEEDS ....... 38 TO 2000 RPM
AUTO DOWN FEED ....... YES
TABLE DIMENSIONS ..... 60" X 22"
TABLE T-SLOTTED ...... YES
TABLE WORK HEIGHT .... 32"
COOLANT .............. YES
TABLE VISE ........... YES
SPINDLE MOTOR ........ 1.5/2.5 KW
| Specifications | ||
|---|---|---|
| Dimensions | 60" L-R X 72" F-B X 94" HIGH | |
| Weight | 4375 pounds | |
Brand
Not Specified
Type
Drills, Heavy Duty & Sensitive, Single Spindle
Stock No.
14671
 |
419-269-2000 |
Stock #: 14671
SERIAL ............... 251084
NEW .................. 1980
MODEL ................ 25MG
TAPER ................ #4 MT
TRAVEL OF HEAD ....... 25"
SPINDLE TO TABLE ..... 16"
SPINDLE TRAVEL ....... 6-1/2"
SPINDLE SPEEDS ....... 38 TO 2000 RPM
AUTO DOWN FEED ....... YES
TABLE DIMENSIONS ..... 60" X 22"
TABLE T-SLOTTED ...... YES
TABLE WORK HEIGHT .... 32"
COOLANT .............. YES
TABLE VISE ........... YES
SPINDLE MOTOR ........ 1.5/2.5 KW
