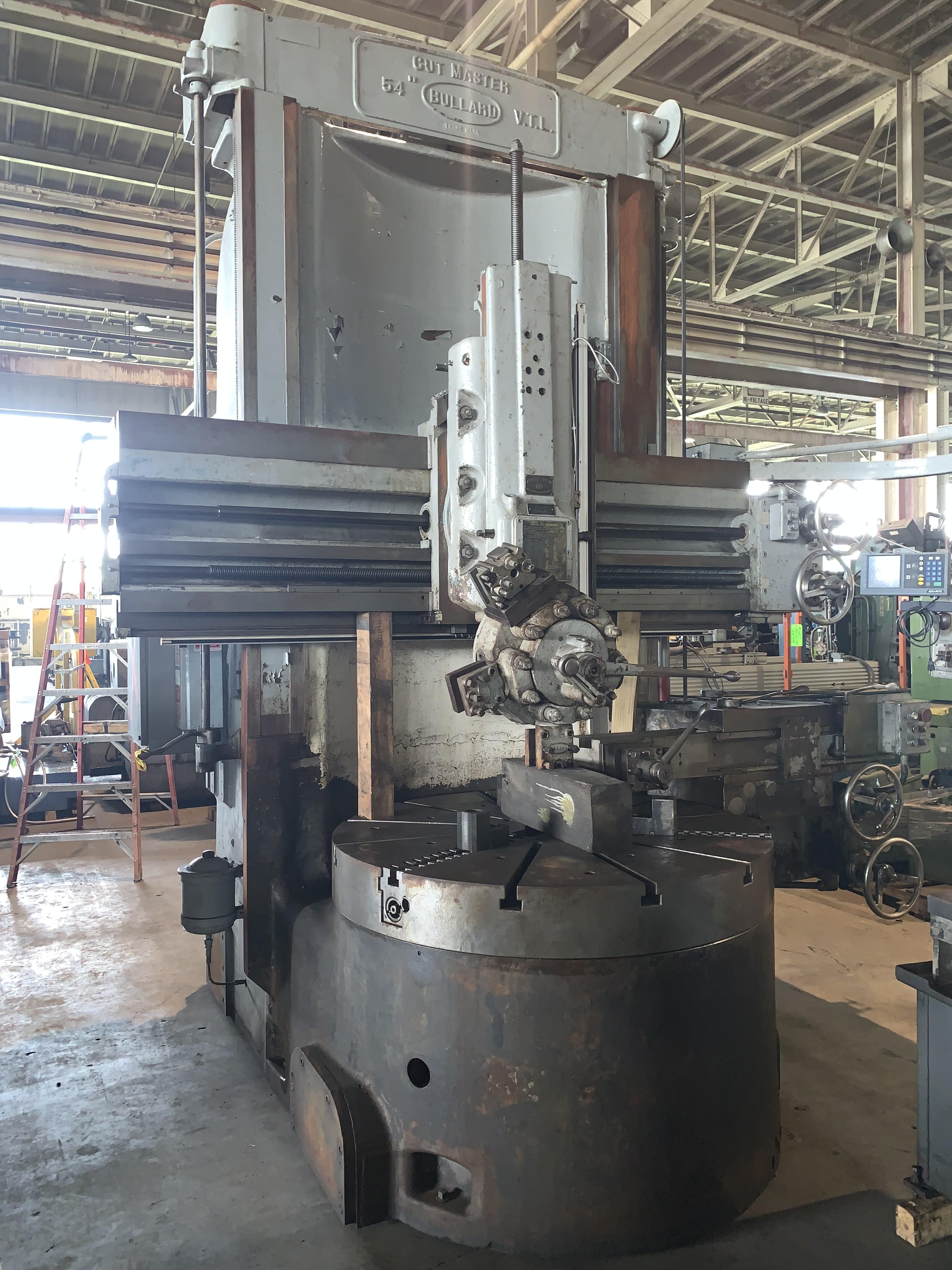

54" BULLARD CUTMASTER 3 JAW HIGH COLUMN VERTICAL TURRET LATHE VTL: STOCK 10395

Stock #: 10395

Equipped With

SERIAL ...................................... 28053
REBUILT ..................................... 2018
MODEL ....................................... CUTMASTER
DIAMETER OF TABLE ........................... 54"
MAXIMUM SWING WITH SIDE HEAD DOWN ........... 62"
TABLE SPEEDS ................................ 2 TO 160 RPM
FEEDS ....................................... .0026 TO .500 IPR
**EXTRA HIGH COLUMN**  ...................... 68" UNDER RAIL
VERTICAL TURRET HEAD ........................ YES
HORIZONTAL SIDE HEAD ........................ YES
MAIN MOTOR .................................. 30 HORSEPOWER

Buy Machines

54" BULLARD CUTMASTER 3 JAW HIGH COLUMN VERTICAL TURRET LATHE VTL: STOCK 10395

Stock # 10395

Share Machine
Print Details

Machine Specifications

SERIAL ...................................... 28053
REBUILT ..................................... 2018
MODEL ....................................... CUTMASTER
DIAMETER OF TABLE ........................... 54"
MAXIMUM SWING WITH SIDE HEAD DOWN ........... 62"
TABLE SPEEDS ................................ 2 TO 160 RPM
FEEDS ....................................... .0026 TO .500 IPR
**EXTRA HIGH COLUMN**  ...................... 68" UNDER RAIL
VERTICAL TURRET HEAD ........................ YES
HORIZONTAL SIDE HEAD ........................ YES
MAIN MOTOR .................................. 30 HORSEPOWER

Videos
Specifications
Table Dia 54 inches
Swing 62 inches
Work Ht-U/R 68 inches
Power 30 horsepower
RPM 160
Dimensions 120 X 96 X 146" HIGH
Chuck Size 54 inches
Spindle Motor 30
Chuck Speed 160
