Machine Information

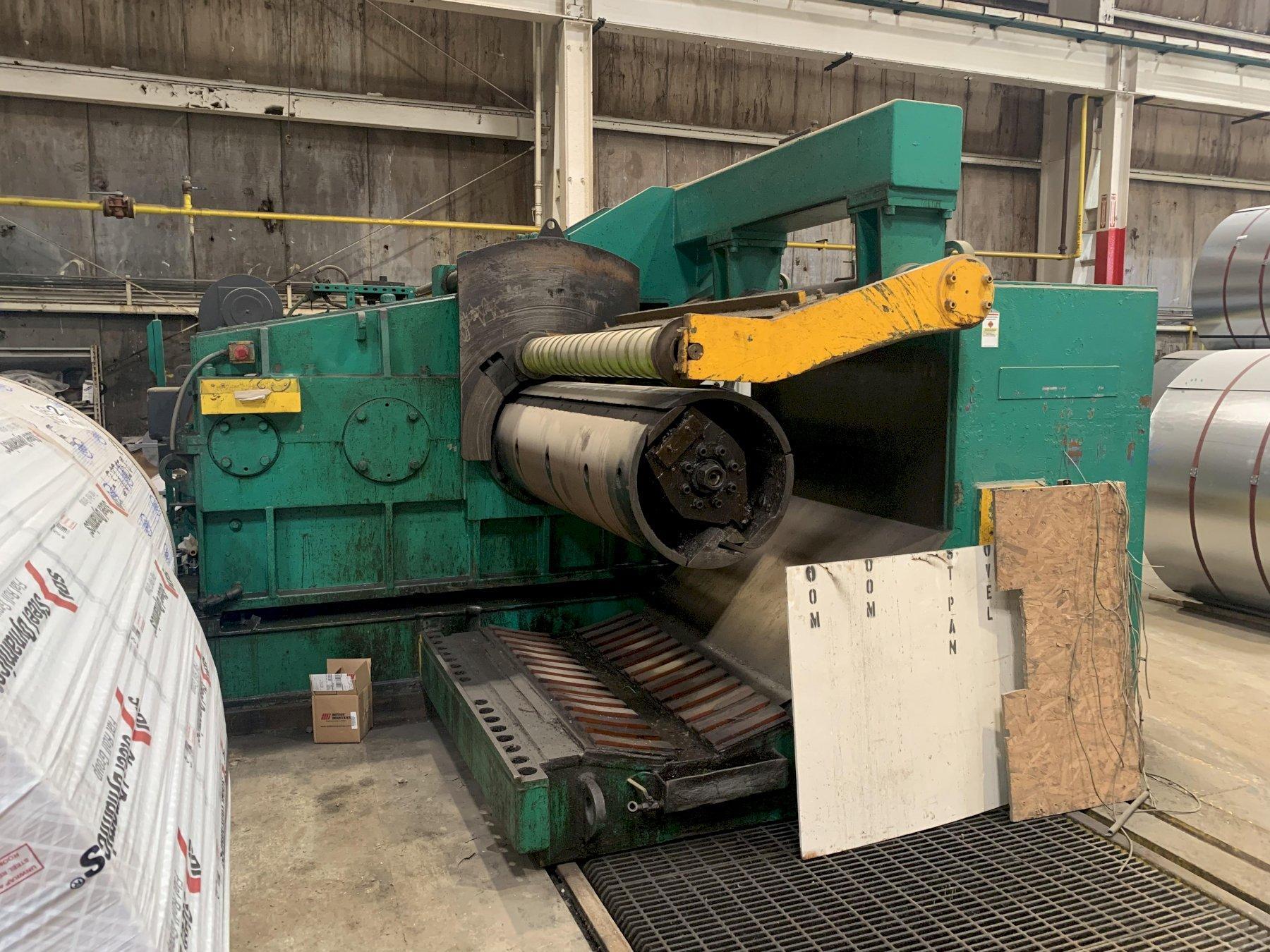

50,000 LB X 72" PRO ECO RECOILER WITH COIL CAR: STOCK #10355

Stock #: 10355

Equipped With

SERIAL ............. 3008-21-22-79
MODEL .............. 50-60
CAPACITY ........... 50,000 LBS
MOTOR HP ........... 250 DC
MANDREL LENGTH ..... 72"
MANDREL DIAMETER ... 24"

COIL CAR
SERIAL ............. 286-24-79
MODEL .............. CC50-60
CAPACITY ........... 50,000 LBS
WIDTH .............. 60"
COIL OD ............ 72"
PLATEN ............. 64" X 64"
VERTICAL STROKE .... 22"

MOTOR .............. 15 HP AC

4 ARM TURN STYLE
WIDTH OF COILS .. 60"
COIL OD ......... 72"
COIL ID ......... 18"
C HOOK SLOT ..... 6" WIDE
OVERALL LENGTH .. 192"
ROTATION ........ MOTORIZED


Buy Machines

50,000 LB X 72" PRO ECO RECOILER WITH COIL CAR: STOCK #10355

Stock # 10355

Share Machine
Print Details

Machine Specifications

SERIAL ............. 3008-21-22-79
MODEL .............. 50-60
CAPACITY ........... 50,000 LBS
MOTOR HP ........... 250 DC
MANDREL LENGTH ..... 72"
MANDREL DIAMETER ... 24"

COIL CAR
SERIAL ............. 286-24-79
MODEL .............. CC50-60
CAPACITY ........... 50,000 LBS
WIDTH .............. 60"
COIL OD ............ 72"
PLATEN ............. 64" X 64"
VERTICAL STROKE .... 22"

MOTOR .............. 15 HP AC

4 ARM TURN STYLE
WIDTH OF COILS .. 60"
COIL OD ......... 72"
COIL ID ......... 18"
C HOOK SLOT ..... 6" WIDE
OVERALL LENGTH .. 192"
ROTATION ........ MOTORIZED


Specifications
Max Weight of Coil 50000 pounds
CNC Control no
