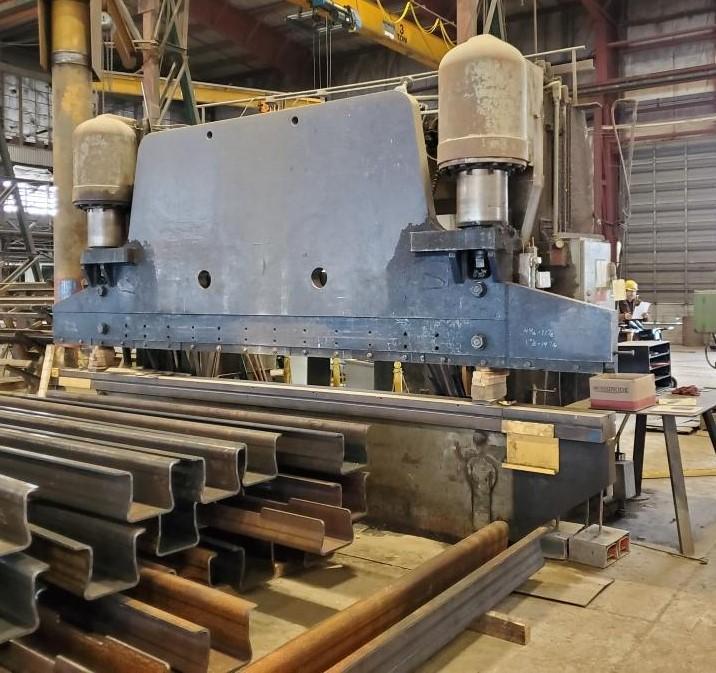

500 TON X 16' PACIFIC MODEL K500-16 HYDRAULIC PRESS BRAKE: STOCK #12741

Stock #: 12741

Equipped With

SERIAL ....................... 5941
MODEL ........................ K500-16
YEAR NEW ..................... 1973
CAPACITY ..................... 500 TON
BRAKING CAPACITY ............. 1/2" X 14'
OVERALL LENGTH OF BED ........ 16'
DISTANCE BETWEEN HOUSING ..... 12'6"
OPEN HEIGHT .................. 22"
CLOSED HEIGHT ................ 10"
STROKE OF RAM ................ 12"
DEPTH OF THROAT .............. 14"
ADVANCED SPEEDS .............. 123 IPM
PRESS SPEEDS ................. 17 IPM
RETURN SPEEDS ................ 134 IPM
MOTOR ........................ 40 HP

Buy Machines

500 TON X 16' PACIFIC MODEL K500-16 HYDRAULIC PRESS BRAKE: STOCK #12741

Stock # 12741

Share Machine
Print Details

Machine Specifications

SERIAL ....................... 5941
MODEL ........................ K500-16
YEAR NEW ..................... 1973
CAPACITY ..................... 500 TON
BRAKING CAPACITY ............. 1/2" X 14'
OVERALL LENGTH OF BED ........ 16'
DISTANCE BETWEEN HOUSING ..... 12'6"
OPEN HEIGHT .................. 22"
CLOSED HEIGHT ................ 10"
STROKE OF RAM ................ 12"
DEPTH OF THROAT .............. 14"
ADVANCED SPEEDS .............. 123 IPM
PRESS SPEEDS ................. 17 IPM
RETURN SPEEDS ................ 134 IPM
MOTOR ........................ 40 HP
