Overview

SERIAL ................ 48944

MODEL ................. BP2-500-60-42

CAPACITY............... 500 TONS

STROKE ................ 6"

SHUT HEIGHT(SDAU) ..... 38"

ADJUSTMENT (POWER) .... 15"

SPEED ................. 30 TO 60 SPM

AREA OF BED & RAM ..... 60" X 42"

RAM BOLSTER SIZE ...... 60" X 42"

BED BOLSTER SIZE ...... 60" X 42"
BOLSTER THICKNESS ..... 8" THICK

WINDOW AREA (W X H) ... 35" X 30"

FLOOR TO BED .......... 42"

RUN MODES ............. JOG, SINGLE, CONTINUOUS
AIR CLUTCH ............ YES

AIR COUNTERBALANCES ... YES

SINGLE BACK GEARED .... YES

PEDESTAL CONTROLS ..... YES

FLOOR STANDING ........ NO PIT REQUIRED
OVERALL HEIGHT ........ 232"

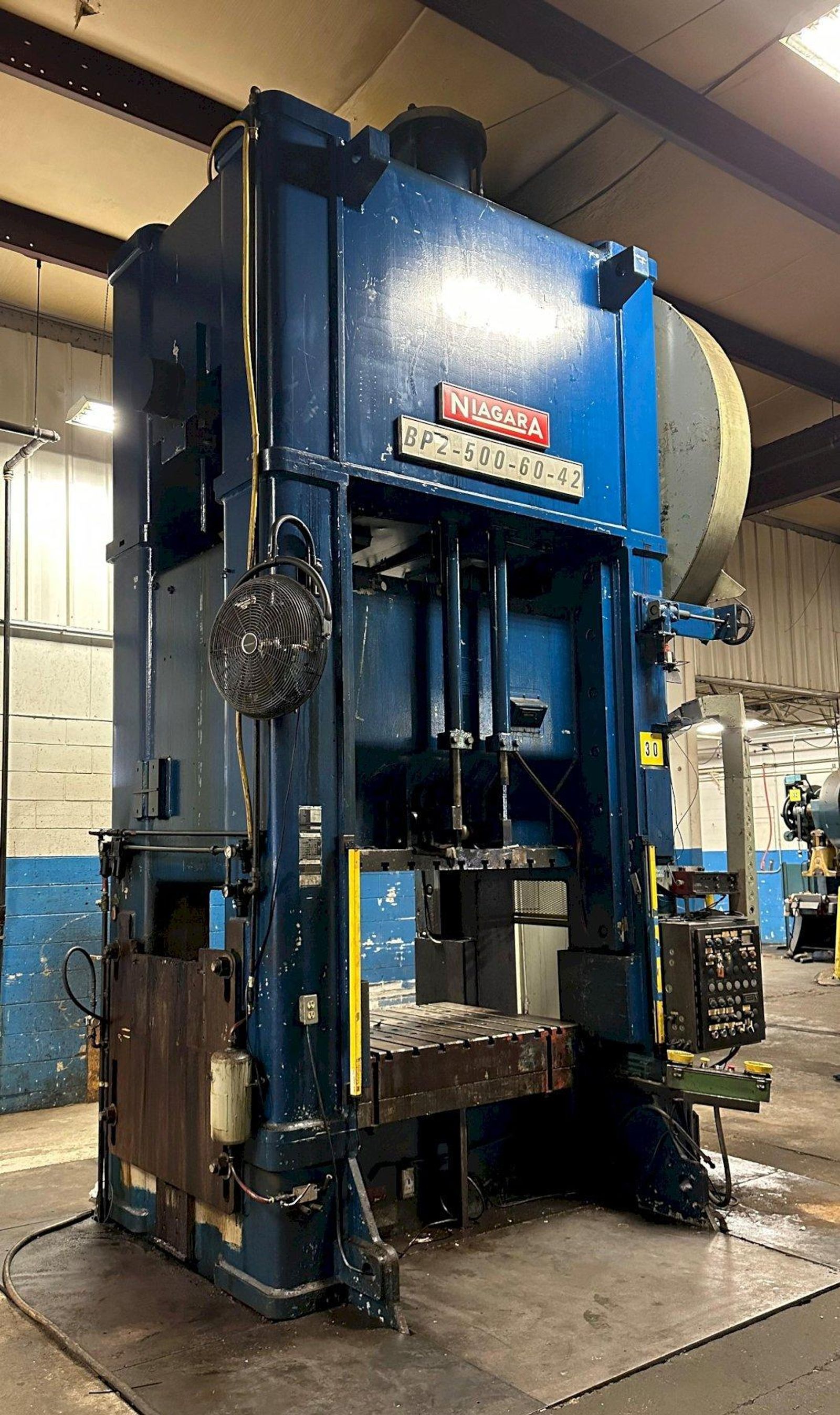

500 TON NIAGARA MODEL #BP2-500-60-42 STRAIGHT-SIDE PRESS, 6" STROKE: STOCK #18115

Brand
NIAGARA

Type
Presses, Straight Side

Stock No.
18115

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

500 TON NIAGARA MODEL #BP2-500-60-42 STRAIGHT-SIDE PRESS, 6" STROKE: STOCK #18115

Stock #: 18115

Equipped With

SERIAL ................ 48944
MODEL ................. BP2-500-60-42
CAPACITY............... 500 TONS
STROKE ................ 6"
SHUT HEIGHT(SDAU) ..... 38"
ADJUSTMENT (POWER) .... 15"
SPEED ................. 30 TO 60 SPM
AREA OF BED & RAM ..... 60" X 42"
RAM BOLSTER SIZE ...... 60" X 42"
BED BOLSTER SIZE ...... 60" X 42"
BOLSTER THICKNESS ..... 8" THICK
WINDOW AREA (W X H) ... 35" X 30"
FLOOR TO BED .......... 42"
RUN MODES ............. JOG, SINGLE, CONTINUOUS
AIR CLUTCH ............ YES
AIR COUNTERBALANCES ... YES
SINGLE BACK GEARED .... YES

PEDESTAL CONTROLS ..... YES

FLOOR STANDING ........ NO PIT REQUIRED
OVERALL HEIGHT ........ 232"
