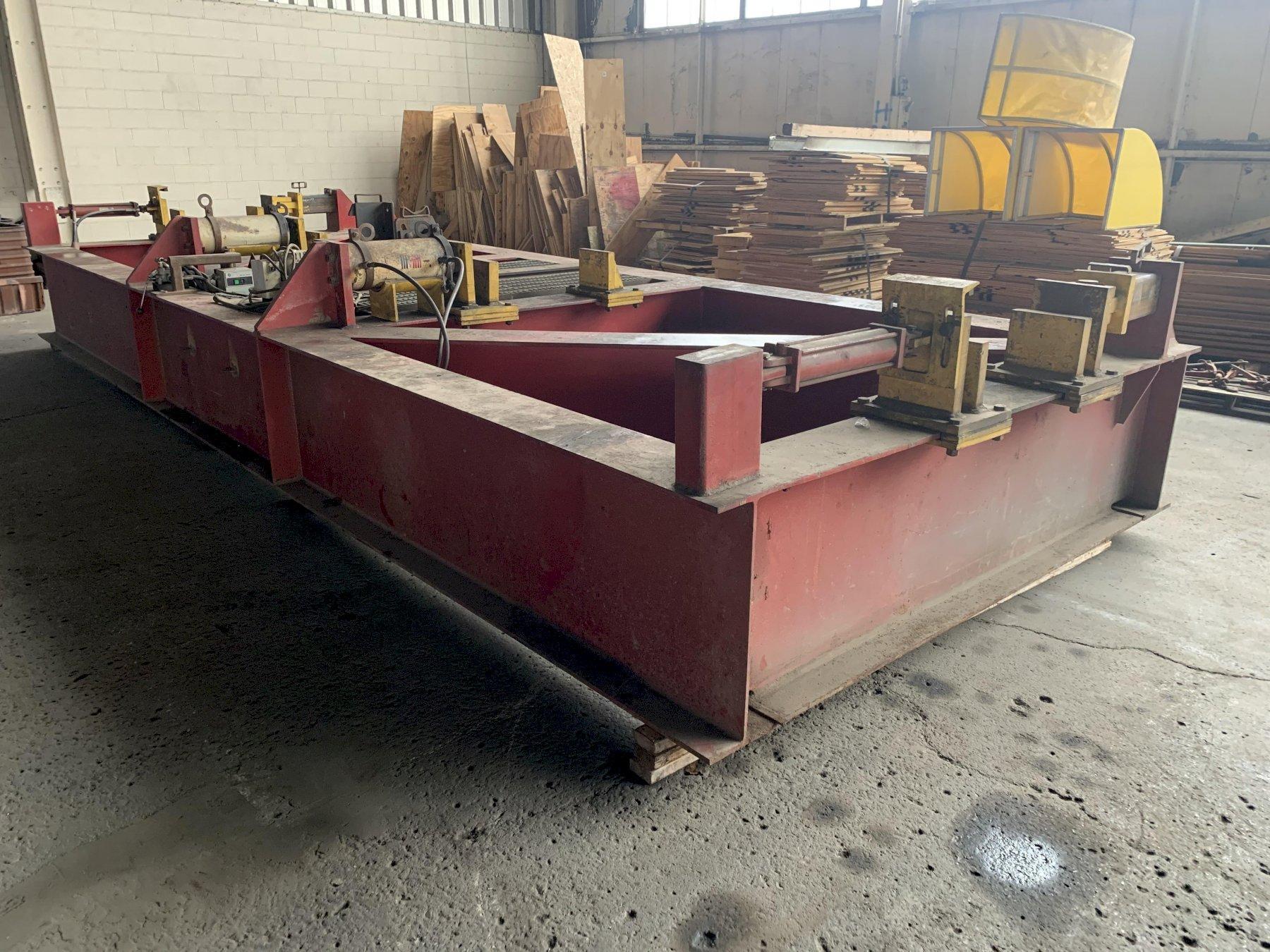

500 TON BEAM CAMBERING MACHINE: STOCK #10174

Stock #: 10174

Equipped With

CAPACITY:........................... 500 TONS
SIZE OF I-BEAMS:.................... 27" HIGH X 10" WIDE
DISTANCE BETWEEN STRAIGHTENERS:..... 22-1/2"

RAM-PAC PUSH CYLINDERS:
CYLINDER CAPACITY:.................. 250 TONS EACH
CYLINDER OUTSIDE DIAMETER:.......... 8"
CYLINDER ROD DIAMETER:.............. 4"
CYLINDER STROKE:.................... 13"
RAM-PAC HYDRAULIC UNIT:
SERIAL #:........................... 4-23-99
MODEL:.............................. HEP-560-4-5
SERIES:............................. 500
PSI MAX:............................ 10,000
PENDANT CONTROL
110V

LEROY SOMER CLAMPING CYLINDERS:
CYLINDER OUTSIDE DIAMETER:.......... 3.5"
CYLINDER ROD DIAMETER:.............. 1.5"
CYLINDER STROKE:.................... 14”

PRINCE HYDRAULIC UNIT:
2000 PSI
1.5 HP, 460V

Buy Machines

500 TON BEAM CAMBERING MACHINE: STOCK #10174

Stock # 10174

Share Machine
Print Details

Machine Specifications

CAPACITY:........................... 500 TONS
SIZE OF I-BEAMS:.................... 27" HIGH X 10" WIDE
DISTANCE BETWEEN STRAIGHTENERS:..... 22-1/2"

RAM-PAC PUSH CYLINDERS:
CYLINDER CAPACITY:.................. 250 TONS EACH
CYLINDER OUTSIDE DIAMETER:.......... 8"
CYLINDER ROD DIAMETER:.............. 4"
CYLINDER STROKE:.................... 13"
RAM-PAC HYDRAULIC UNIT:
SERIAL #:........................... 4-23-99
MODEL:.............................. HEP-560-4-5
SERIES:............................. 500
PSI MAX:............................ 10,000
PENDANT CONTROL
110V

LEROY SOMER CLAMPING CYLINDERS:
CYLINDER OUTSIDE DIAMETER:.......... 3.5"
CYLINDER ROD DIAMETER:.............. 1.5"
CYLINDER STROKE:.................... 14”

PRINCE HYDRAULIC UNIT:
2000 PSI
1.5 HP, 460V

Specifications
Tonnage 500 tons
Dimensions 23-1/2"L X 9'W X 4' H
