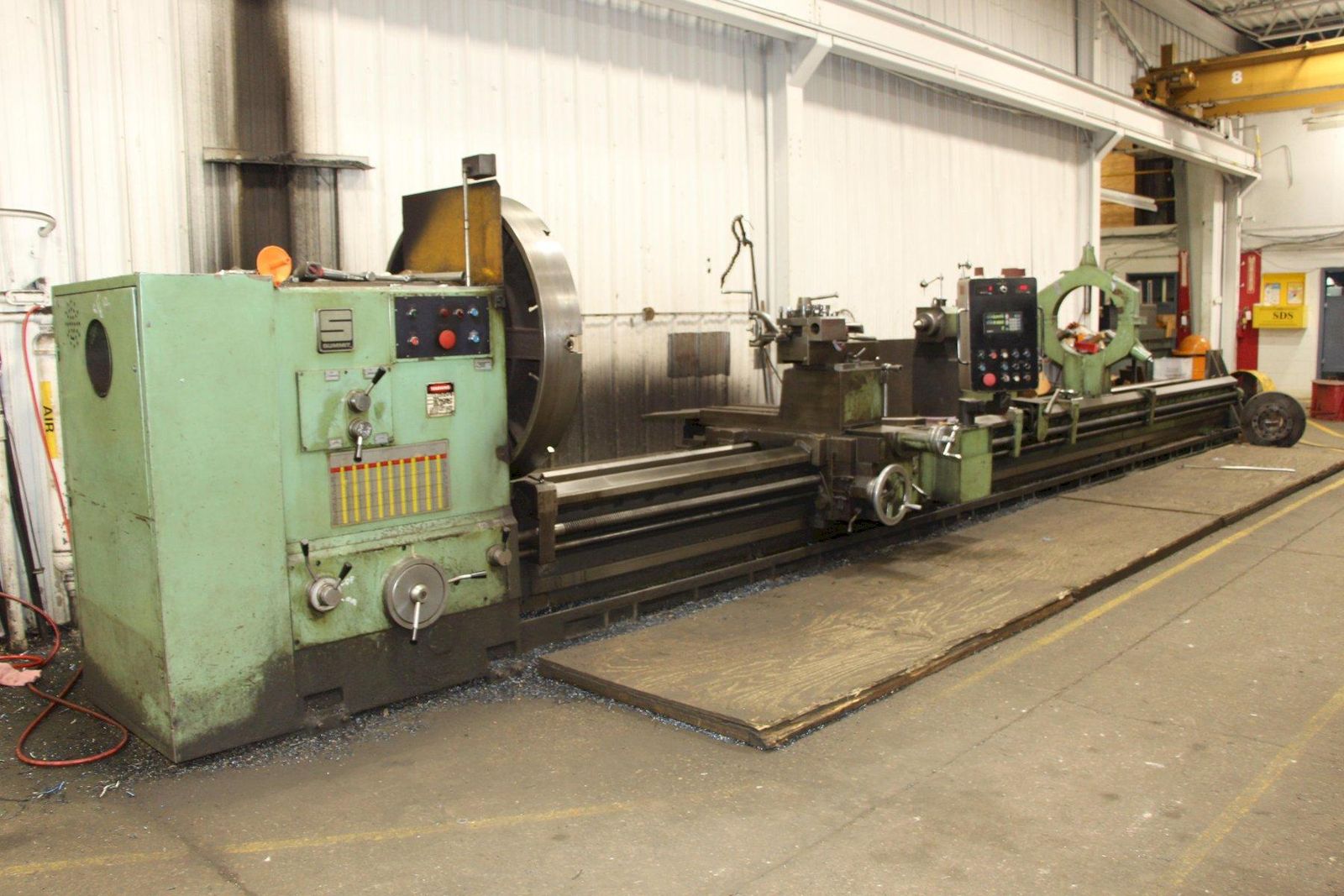

50” x 324” SUMMIT HEAVY DUTY ENGINE LATHE, 6.1" HOLE: STOCK #14509

Stock #: 14509

Equipped With

SERIAL ................. 592/2
MODEL .................. DC

NEW .................... 1995
SWING OVER WAYS ........ 51" (1300mm)
SWING OVER CROSSLIDE ... 37.4" (950mm)
CENTER DISTANCE ........ 324" (27ft)
CENTER LOAD CAPACITY ... 20,000 LBS

SPINDLE HOLE DIAMETER .. 6.1" (155mm)
SPINDLE SPEEDS ......... 1 TO 550 RPM (VARIABLE)
SPINDLE TAPER .......... A-15
SADDLE TRAVEL .......... 27.5" (700mm)
TOOL SLIDE TRAVEL ...... 13.7" (350mm)
4-JAW CHUCK ............ 49" (1250mm)
BED WIDTH .............. 25.9" (660mm)
TAILSTOCK TAPER ........ #6 MT
TAILSTOCK TRAVEL ....... 11.8" (300mm)
INCH THREADING ......... (72) 1/8 TO 28 TPI
METRIC THREADING ....... (72) 1 TO 224 MM
TRAVERSE FEEDS ......... .0009 TO .39 IPR (.023-10mm)
LONGIRTUDINAL FEEDS .... .002 TO .98 IPR (.06-25mm)
RAPID TRAVERSE ......... YES
4-WAY TOOL POST HOLDER . YES
STEADY RESTS ........... YES (2)
FOLLOW RESTS ........... YES
DIGITAL READOUTS ....... YES
COOLANT ................ YES
SPINDLE JOG ............ YES
TAPER ATTACHMENT ....... YES
E-STOP BUTTON .......... YES
MOTOR .................. 35 HP

Buy Machines

50” x 324” SUMMIT HEAVY DUTY ENGINE LATHE, 6.1" HOLE: STOCK #14509

Stock # 14509

Share Machine
Print Details

Machine Specifications

SERIAL ................. 592/2
MODEL .................. DC

NEW .................... 1995
SWING OVER WAYS ........ 51" (1300mm)
SWING OVER CROSSLIDE ... 37.4" (950mm)
CENTER DISTANCE ........ 324" (27ft)
CENTER LOAD CAPACITY ... 20,000 LBS

SPINDLE HOLE DIAMETER .. 6.1" (155mm)
SPINDLE SPEEDS ......... 1 TO 550 RPM (VARIABLE)
SPINDLE TAPER .......... A-15
SADDLE TRAVEL .......... 27.5" (700mm)
TOOL SLIDE TRAVEL ...... 13.7" (350mm)
4-JAW CHUCK ............ 49" (1250mm)
BED WIDTH .............. 25.9" (660mm)
TAILSTOCK TAPER ........ #6 MT
TAILSTOCK TRAVEL ....... 11.8" (300mm)
INCH THREADING ......... (72) 1/8 TO 28 TPI
METRIC THREADING ....... (72) 1 TO 224 MM
TRAVERSE FEEDS ......... .0009 TO .39 IPR (.023-10mm)
LONGIRTUDINAL FEEDS .... .002 TO .98 IPR (.06-25mm)
RAPID TRAVERSE ......... YES
4-WAY TOOL POST HOLDER . YES
STEADY RESTS ........... YES (2)
FOLLOW RESTS ........... YES
DIGITAL READOUTS ....... YES
COOLANT ................ YES
SPINDLE JOG ............ YES
TAPER ATTACHMENT ....... YES
E-STOP BUTTON .......... YES
MOTOR .................. 35 HP

Videos
Specifications
Dimensions 37' LONG
Weight 23000 pounds
