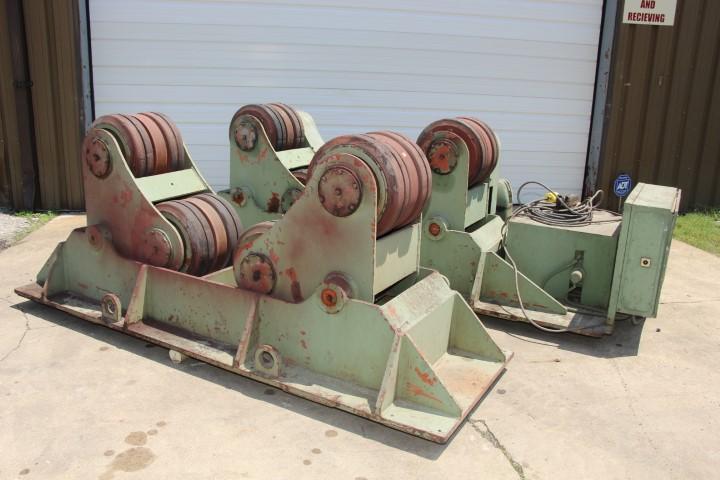

50 TON BODE MODEL #SAR-1000 SELF ALIGNING TANK TURNING DRIVE ROLL & IDLER ROLL: STOCK #10406

Stock #: 10406

Equipped With

SERIAL ............... M/24321
MODEL ................ SAR-1000
CAPACITY ............. 50 TON (100,000 LBS)
IDLER CAPACITY ....... 25 TON
DRIVE CAPACITY ....... 25 TON
OVERALL DIAMETER ..... 17-3/4" TO 204-3/4" (450 mm TO 5200 mm)
WHEEL DIAMETER ....... 18" (457 mm)
WHEEL MATERIAL ....... POLYURETHANE
DRIVE UNIT ...........
120" L X 39-1/4" W (3050 mm X 1000 mm)
IDLER UNIT ........... 8
6-3/4" X 26-3/4" (2205 mm X 680 mm)
HEIGHT ...............
40-3/4" (1035 mm)
DRIVE UNIT WEIGHT .... 12,000 LBS (
5,500 kg)
IDLER UNIT WEIGHT .... 7,000 LBS (
3,200 kg)

Buy Machines

50 TON BODE MODEL #SAR-1000 SELF ALIGNING TANK TURNING DRIVE ROLL & IDLER ROLL: STOCK #10406

Stock # 10406

Share Machine
Print Details
Download Images

Machine Specifications

SERIAL ............... M/24321
MODEL ................ SAR-1000
CAPACITY ............. 50 TON (100,000 LBS)

IDLER CAPACITY ....... 25 TON
DRIVE CAPACITY ....... 25 TON
OVERALL DIAMETER ..... 17-3/4" TO 204-3/4" (450 mm TO 5200 mm)
WHEEL DIAMETER ....... 18" (457 mm)
WHEEL MATERIAL ....... POLYURETHANE
DRIVE UNIT ...........
120" L X 39-1/4" W (3050 mm X 1000 mm)
IDLER UNIT ........... 8
6-3/4" X 26-3/4" (2205 mm X 680 mm)
HEIGHT ...............
40-3/4" (1035 mm)
DRIVE UNIT WEIGHT .... 12,000 LBS (
5,500 kg)
IDLER UNIT WEIGHT .... 7,000 LBS (
3,200 kg)
