Machine Information

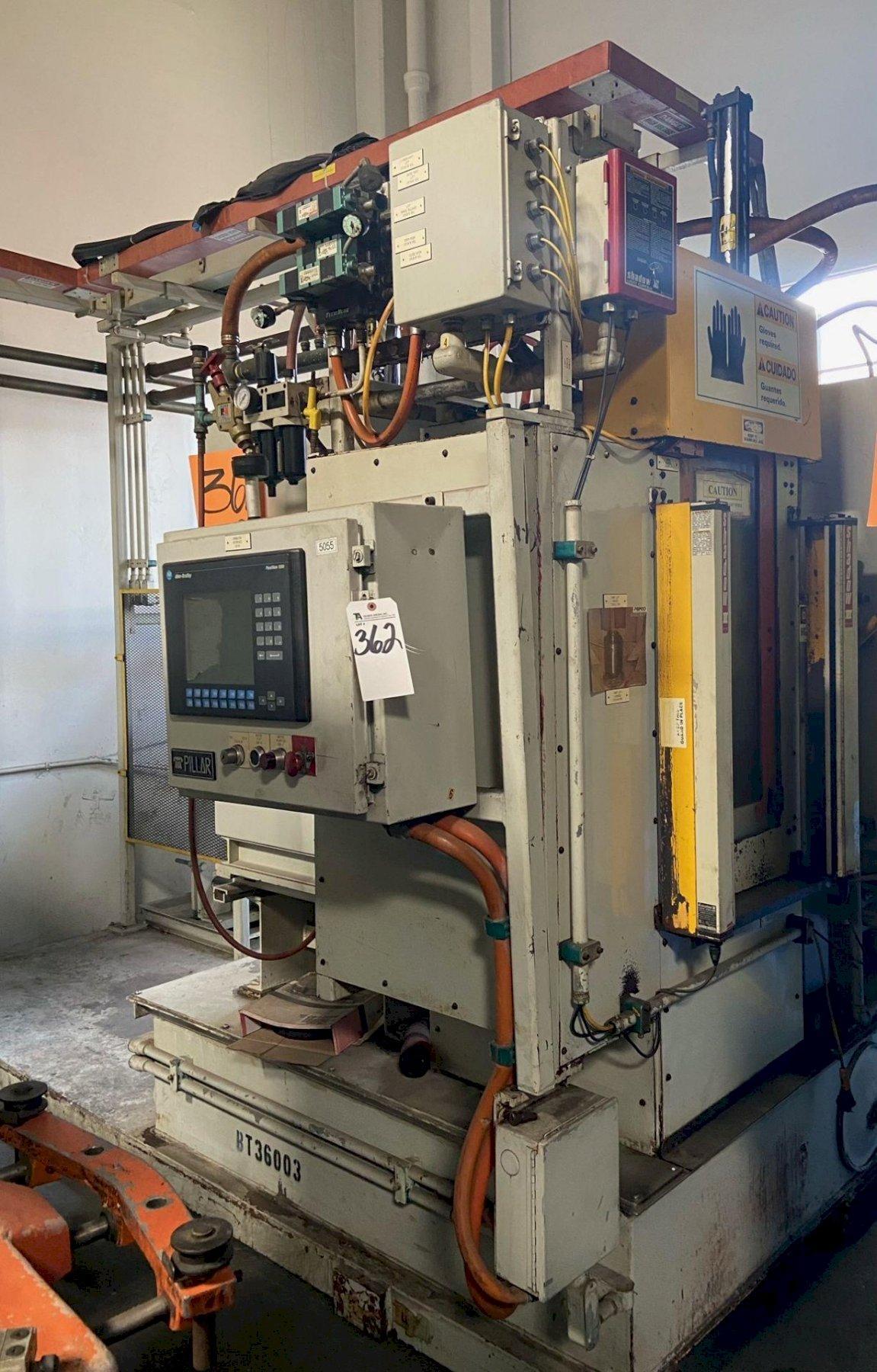

50 kw PILLAR MODEL #AB7109-503 INDUCTION HEAT TREAT SYSTEM: STOCK #15102

Stock #: 15102

Equipped With


Manufacturer: Pillar
Serial #: S-0- 2920
Model: AB7109-503
Year Built: 2000

Specifications

KW Rating: 50
KHZ Rating: 50
Hardening Temperature: 1,650 Degree F
Tempering Temperature: 900 Degree F
Max. Water Outlet Temperature: 135 Degree F
Internal Diameter Part Dimensions: 1" x 0.314"
Outside Diameter Part Dimensions: 3" x 0.580"
Rotational Drive Speed (Variable): 0- 200 RPM
Integral Quench Reservoir: 100 Gallon


Equipped with

Buy Machines

50 kw PILLAR MODEL #AB7109-503 INDUCTION HEAT TREAT SYSTEM: STOCK #15102

Stock # 15102

Share Machine
Print Details

Machine Specifications


Manufacturer: Pillar
Serial #: S-0- 2920
Model: AB7109-503
Year Built: 2000


Specifications

KW Rating: 50
KHZ Rating: 50
Hardening Temperature: 1,650 Degree F
Tempering Temperature: 900 Degree F
Max. Water Outlet Temperature: 135 Degree F
Internal Diameter Part Dimensions: 1" x 0.314"
Outside Diameter Part Dimensions: 3" x 0.580"
Rotational Drive Speed (Variable): 0- 200 RPM
Integral Quench Reservoir: 100 Gallon


Equipped with

  • Allen Bradley Panelview 1000 Control
  • Mark 11 RF Generator Control
  • Kerr Model M6M- FM- 8 Water Pump
  • Stainless Steel Storage Tank
  • Lift & Rotate Fixture
  • Wintriss Shadow VI Safety Light Curtains
  • Simpson AC Elapsed Time Meter

Specifications
Dimensions 168" x 102" x 120" HIGH
Weight 20000 ounces
