Machine Information

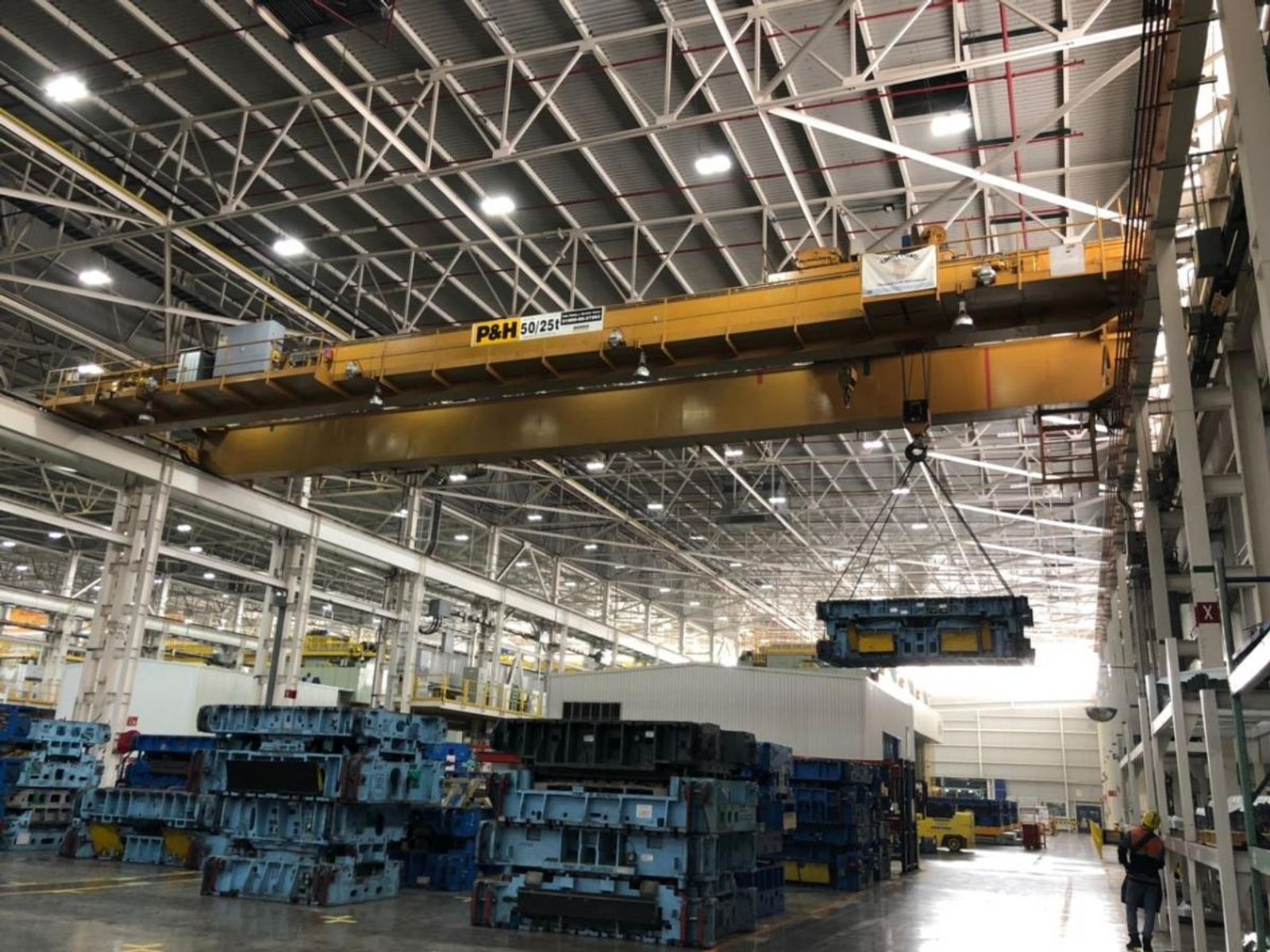

50/25 TON X 94' P&H DUAL GIRDER CLASS D OVERHEAD BRIDGE CRANE: STOCK #10030

Stock #: 10030

Equipped With

SERIAL ...................... CJX-36366-HH
YEAR ........................ 2008
CLASS ....................... D
CAPACITY MAIN HOIST ......... 50 TON
CAPACITY AUX HOIST .......... 25 TON
SPAN ....................... 94'
AVAILABLE LIFT .............. 56'
8 WHEEL BRIDGE DESIGN ....... YES
MAX WHEEL LOAD .............. 43,431 LBS
TROLLEY WEIGHT .............. 23,148 LBS
CRANE WEIGHT ................ 94,798 LBS
CONTROL ..................... HBC-RADIOMATIC

SPEEDS:
MAIN HOIST .................. 23 FPM
AUX HOIST ................... 23 FPM
TROLLEY ..................... 128 FPM
CRANE ....................... 200 FPM

MOTORS:
MAIN HOIST MOTOR ............ 100 HP
AUX HOIST MOTOR ............. 40 HP
TROLLEY ..................... 128 HP
(2) CRANE MOTORS ............ 15 HP

ELECTRICAL CLASSIFICATION ... NEMA-12
VOLTAGE ..................... 440/3/60
