Machine Information

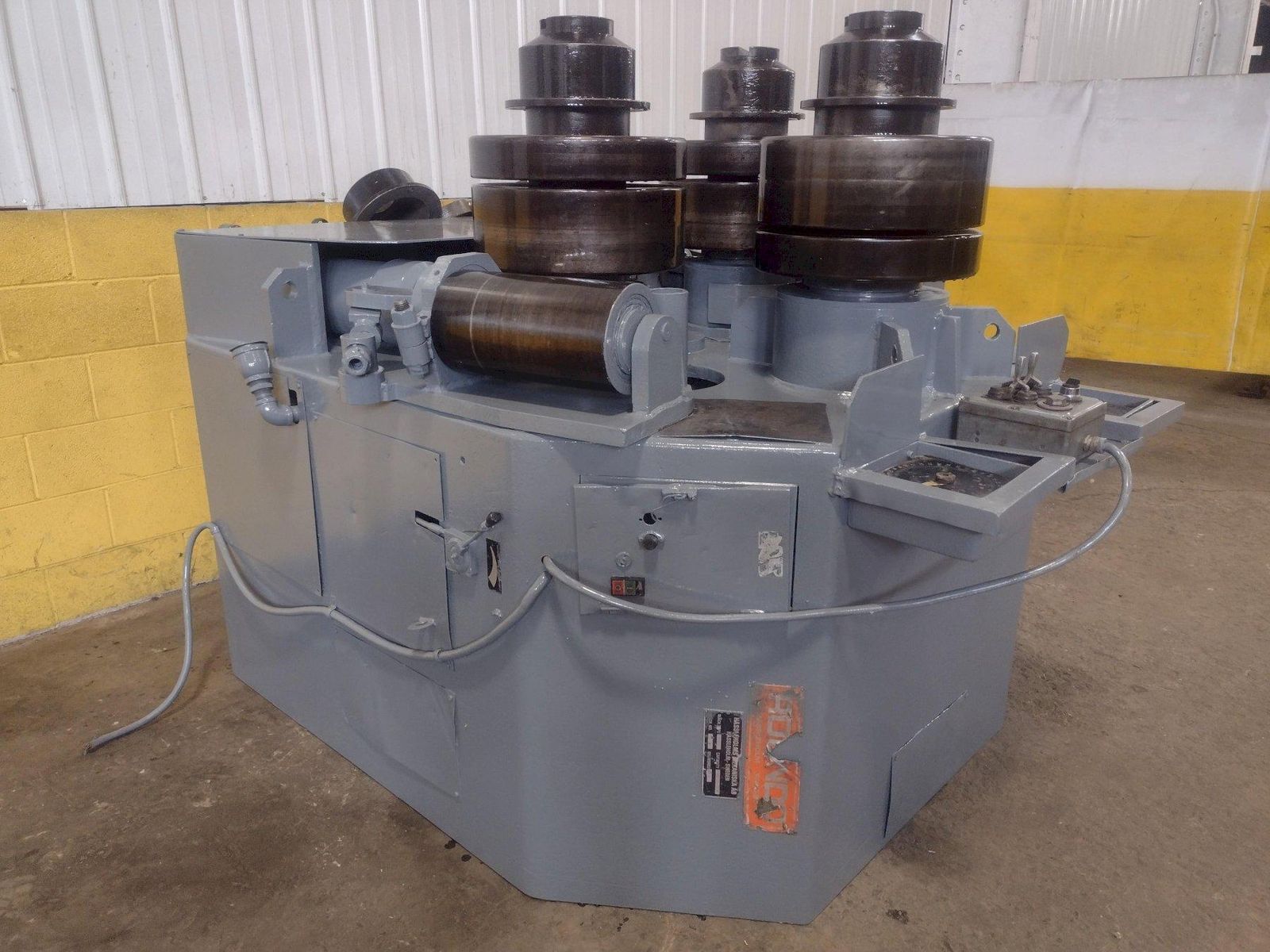

5" x 5" x 5/8" ROUNDO MODEL R-6 HYDRAULIC ANGLE BENDING ROLL: STOCK #17985

Stock #: 17985

Equipped With

SERIAL ......................... 002656
MODEL .......................... R-6
YEAR ........................... 1982


CAPACITY:
ANGLE LEG OUT .................. 5" X 5" X 5/8"
ANGLE LEG IN ................... 6" X 6" X 1/2"
FLAT BAR, HARD WAY ............. 5" X 1-1/4"
FLAT BAR,EASY WAY .............. 10" X 1-1/2"
SQUARE SOLID ................... 2-3/4"

DIAMETER OF ROLLS .............. 17-3/8"
ROLLING SPEED .................. 0 TO 23 FPM
MOTOR .......................... 17.5 HP

Buy Machines

5" x 5" x 5/8" ROUNDO MODEL R-6 HYDRAULIC ANGLE BENDING ROLL: STOCK #17985

Stock # 17985

Share Machine
Print Details

Machine Specifications

SERIAL ......................... 002656
MODEL .......................... R-6
YEAR ........................... 1982


CAPACITY:
ANGLE LEG OUT .................. 5" X 5" X 5/8"
ANGLE LEG IN ................... 6" X 6" X 1/2"
FLAT BAR, HARD WAY ............. 5" X 1-1/4"
FLAT BAR,EASY WAY .............. 10" X 1-1/2"
SQUARE SOLID ................... 2-3/4"

DIAMETER OF ROLLS .............. 17-3/8"
ROLLING SPEED .................. 0 TO 23 FPM
MOTOR .......................... 17.5 HP

Specifications
(Init/Dbl Pinch or Pyramid) single
Hyd/Mech hydraulic
Operation (Horz, Vert, Horz/Vert) both
Weight 12000 pounds
