Machine Information

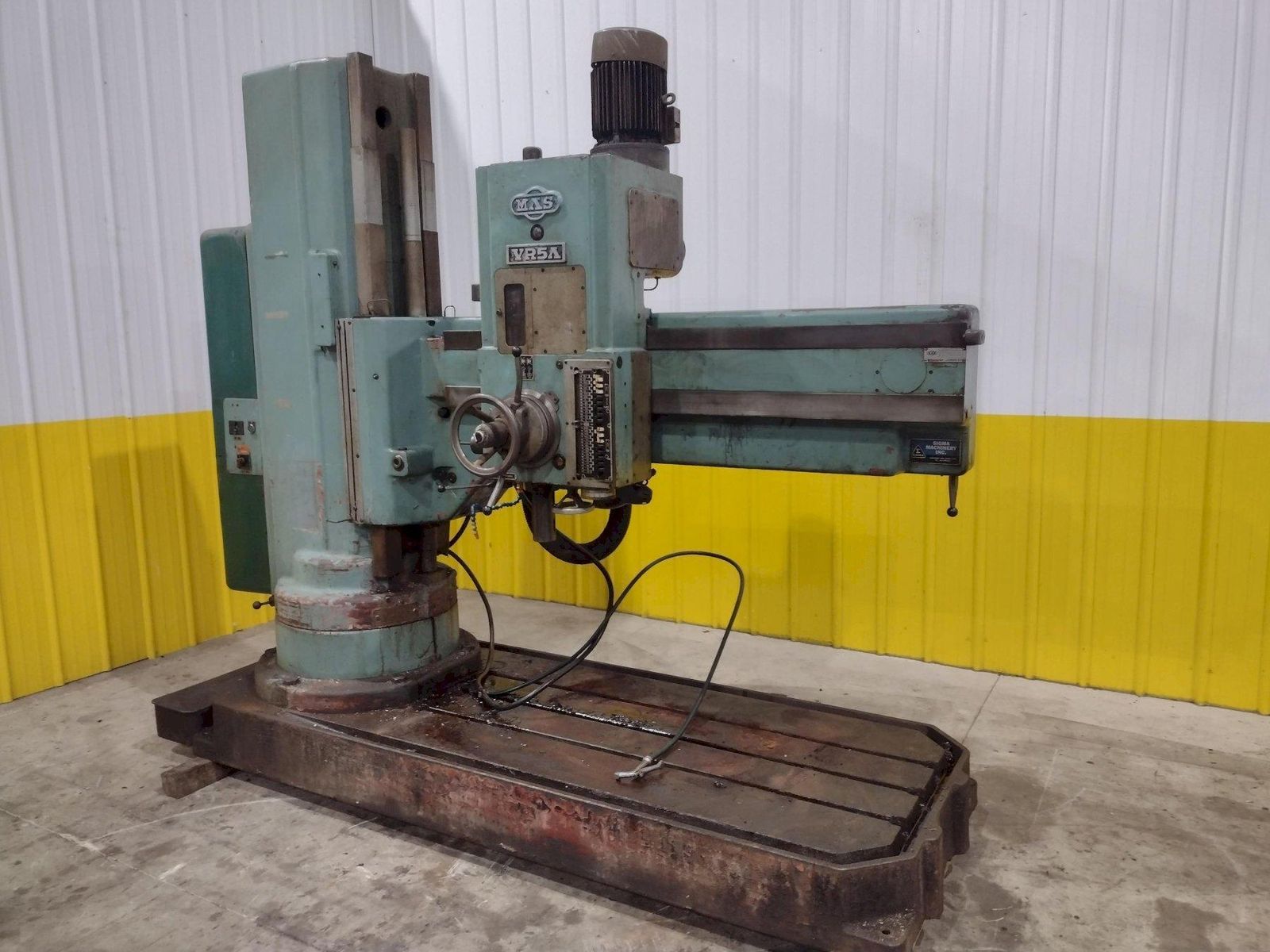

5' X 18" MAS MODEL #VR5A POWERED RADIAL ARM DRILL: STOCK #22315

Stock #: 22315

Equipped With

Model ............................................. VR5A
Spindle Diameter .................................. 2-3/4"
Spindle Taper ..................................... #5 Morse
Spindle Diameter .................................. 1.57"
Spindle Travel .................................... 12-1/4"
Spindle Speeds .................................... 28 to 2500 Rpm
Spindle Feeds ..................................... 16
Base Dimension .................................... 71-5/8" x 8-5/8" x 8-5/8" High
Drilling .......................................... 2" Solid Steel; 2-3/8" Cast Iron
Boring ............................................ 8" Guided Spindle in Steel
Tapping ........................................... 1-1/4" Steel; 1-5/8" Cast Iron
Vertical Travel of Arm ............................ 34-1/4"
Spindle to Base ................................... 12-13/32"
Horizintal Travel ................................. 50-3/8"
Motor for Drilling ................................ 4kw/1430 Rpm
Motor for Lifting ................................. 2.2 Kw/1400 Rpm
Distance Spindle Centerline to Sleeve Guideways ... 12-5/8" to 63"
T-Slotted Box Table ............................... Yes
Coolant pump & Tank ............................... Yes
Power Elevation ................................... Yes
Clamping .......................................... Yes
