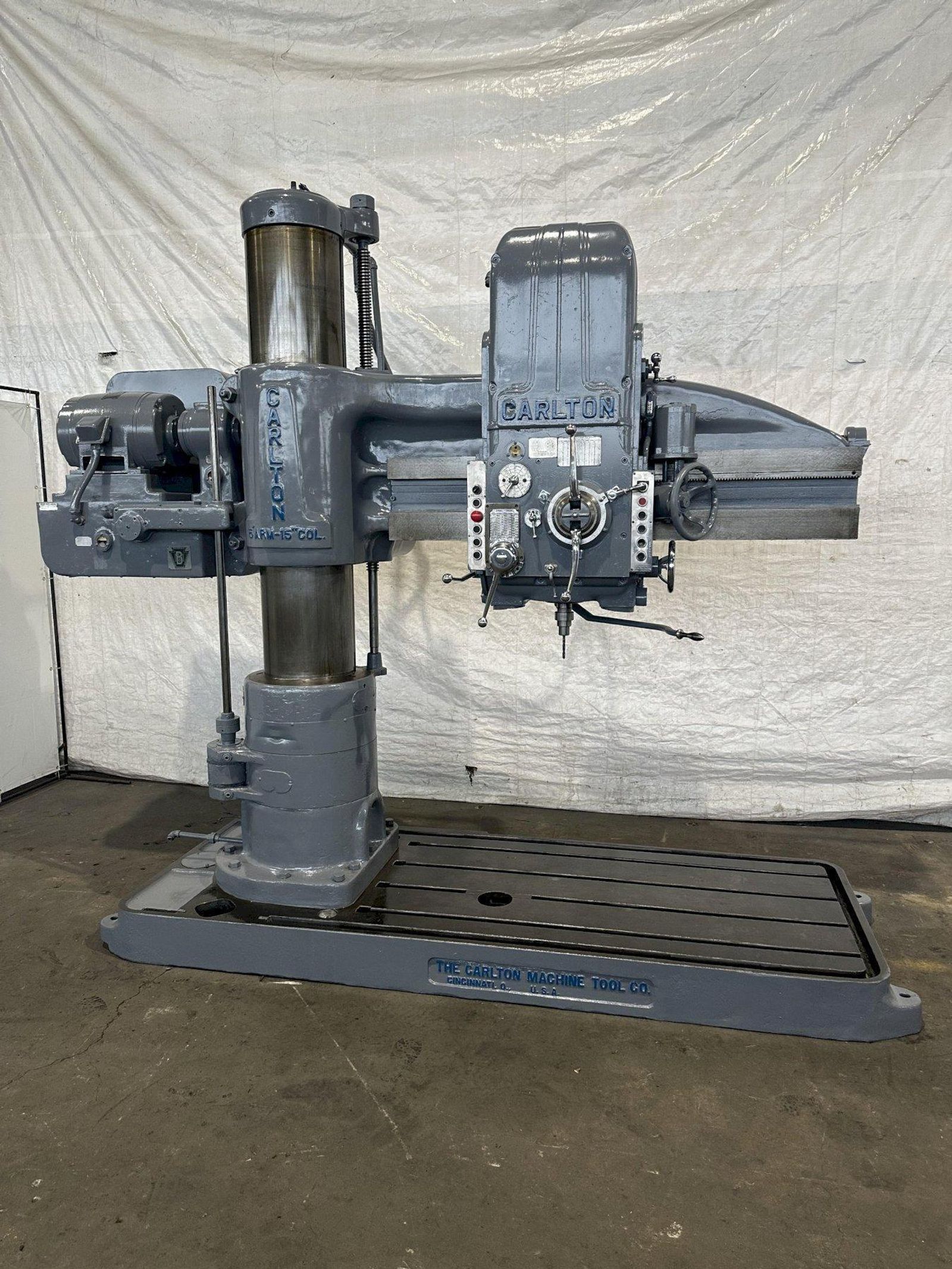

Stock #: 17340
SERIAL ....................... 3A-4722MODEL ........................ 3AAREA OF BASE ................. 65" X 42"SPINDLE SPEEDS ............... (36) 12 TO 1200 RPMSPINDLE FEEDS ................ (18) .004 TO .125 IPRTAP LEADS .................... 8, 11-1/2, 14, 18 TPISPINDLE TRAVEL ............... 18"DIAMETER OF SPINDLE .......... 3-3/16"TAPER IN SPINDLE ............. #5MTDISTANCE SPINDLE TO BASE ..... 10-1/2" MIN, 66" MAXDISTANCE SPINDLE TO COLUMN ... 15" MIN, 60" MAXPOWER ARM ELEVATION .......... YESPOWER HEAD TRAVERSE .......... YESPOWER COLUMN CLAMPING ........ YESPOWER HEAD CLAMPING .......... YESCOOLANT ...................... YESSPINDLE MOTOR, HORSEPOWER .... 20
Stock # 17340
SERIAL ....................... 3A-4722
MODEL ........................ 3A
AREA OF BASE ................. 65" X 42"
SPINDLE SPEEDS ............... (36) 12 TO 1200 RPM
SPINDLE FEEDS ................ (18) .004 TO .125 IPR
TAP LEADS .................... 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ............... 18"
DIAMETER OF SPINDLE .......... 3-3/16"
TAPER IN SPINDLE ............. #5MT
DISTANCE SPINDLE TO BASE ..... 10-1/2" MIN, 66" MAX
DISTANCE SPINDLE TO COLUMN ... 15" MIN, 60" MAX
POWER ARM ELEVATION .......... YES
POWER HEAD TRAVERSE .......... YES
POWER COLUMN CLAMPING ........ YES
POWER HEAD CLAMPING .......... YES
COOLANT ...................... YES
SPINDLE MOTOR, HORSEPOWER .... 20
