Machine Information

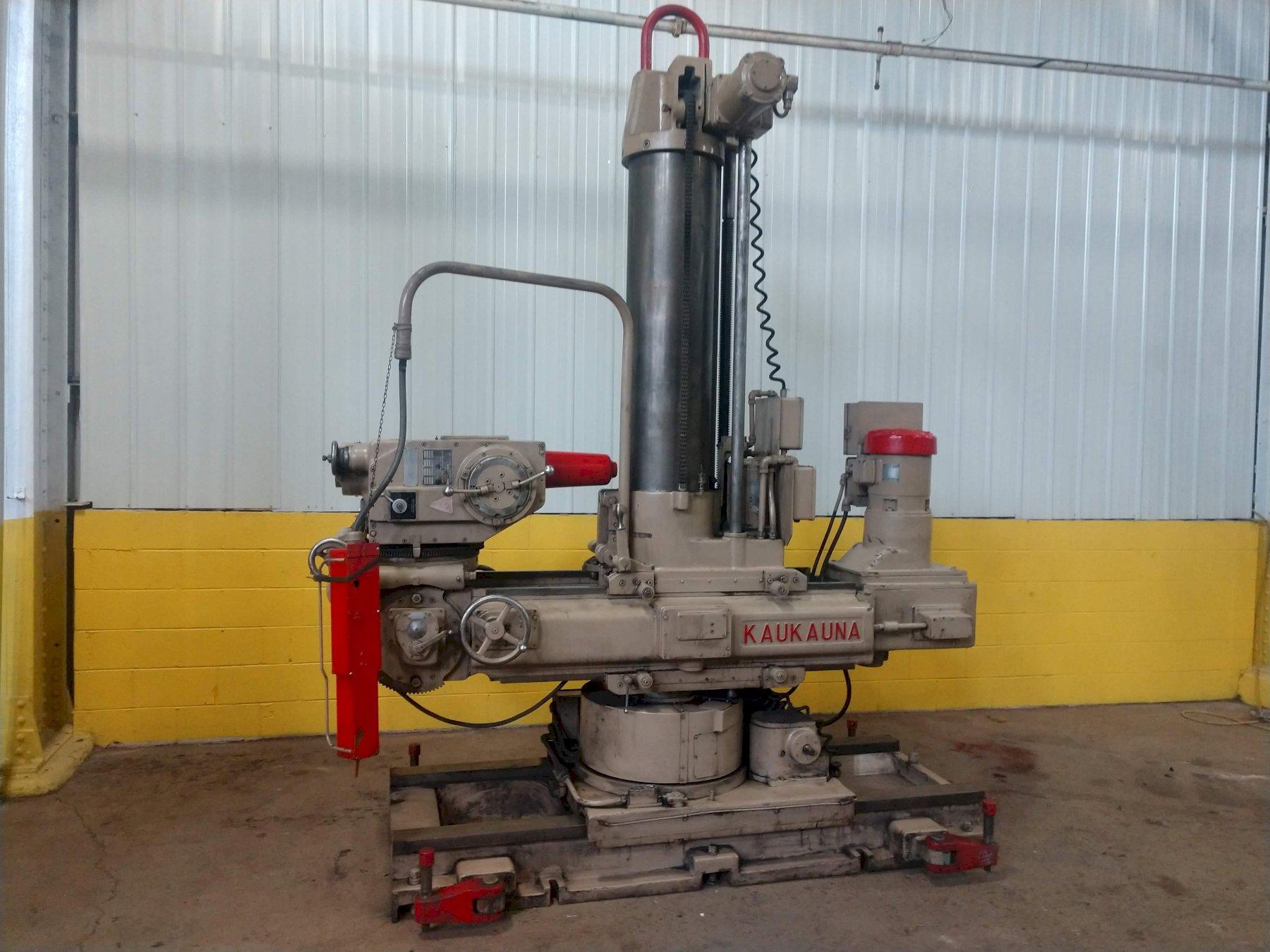

5' X 14" KAUKAUNA MODEL #A125U PORTABLE DRILLING & TAPPING MACHINE: STOCK #14666

Stock #: 14666

Equipped With

MODEL .............................. A125U
MAX DISTANCE COLUMN TO SPINDLE ..... 60"
MAX HEIGHT UNDER SPINDLE ........... 64"
COLUMN DIAMETER .................... 14"
SPINDLE DIAMETER ................... 12"
9 SPINDLE SPEEDS ................... 45 TO 800
SPINDLE FEEDS ...................... (3) - .003; .007; .012
MAIN MOTOR DRIVE ................... 7.5 HP

POWER ELEVATION
POWER CLAMP ON COLUMN
POWER RAPID TRAVERSE ON HEAD

UNIVERSAL HEAD (ANY ANGLE/ANY PLATE)
SWIVELS ............................ 360 DEGREES
TILTS .............................. 90 DEGREES

PENDANT CONTROL
LIFTING HOOK FOR PORTABILITY
TRAVEL COLUMNS RUNWAYS

Buy Machines

5' X 14" KAUKAUNA MODEL #A125U PORTABLE DRILLING & TAPPING MACHINE: STOCK #14666

Stock # 14666

Share Machine
Print Details

Machine Specifications

MODEL .............................. A125U
MAX DISTANCE COLUMN TO SPINDLE ..... 60"
MAX HEIGHT UNDER SPINDLE ........... 64"
COLUMN DIAMETER .................... 14"
SPINDLE DIAMETER ................... 12"
9 SPINDLE SPEEDS ................... 45 TO 800
SPINDLE FEEDS ...................... (3) - .003; .007; .012
MAIN MOTOR DRIVE ................... 7.5 HP

POWER ELEVATION
POWER CLAMP ON COLUMN
POWER RAPID TRAVERSE ON HEAD

UNIVERSAL HEAD (ANY ANGLE/ANY PLATE)
SWIVELS ............................ 360 DEGREES
TILTS .............................. 90 DEGREES

PENDANT CONTROL
LIFTING HOOK FOR PORTABILITY
TRAVEL COLUMNS RUNWAYS

Specifications
Dimensions 135"H X 130"L X 60"W
Weight 13000 pounds
