Overview

SERIAL ....................... 3A3859

MODEL ........................ 3A

AREA OF BASE ................. 65" X 42"

SPINDLE SPEEDS ............... (36) 12 TO 1200 RPM

FEEDS ........................ (18) .004 TO .125 IPR

TAP LEADS .................... 8 - 11-1/2 - 14 - 18 TPI

SPINDLE STROKE ............... 18"

SPINDLE DIAMETER ............. 3-3/16"

SPINDLE TAPER ................ #5 MT

MIN SPINDLE CENTER TO COLUMN . 15"
MAX SPINDLE CENTER TO COLUMN . 60"

MIN SPINDLE NOSE TO BASE ..... 10-1/2"
MAX SPINDLE NOSE TO BASE ..... 60"

POWER ELEVATION .............. YES

POWER HEAD TRAVERSE .......... YES

POWER COLUMN CLAMP ........... YES

HEAD CLAMP ................... MANUAL

COOLANT ...................... YES

SPINDLE MOTOR ................ 15 HORSEPOWER

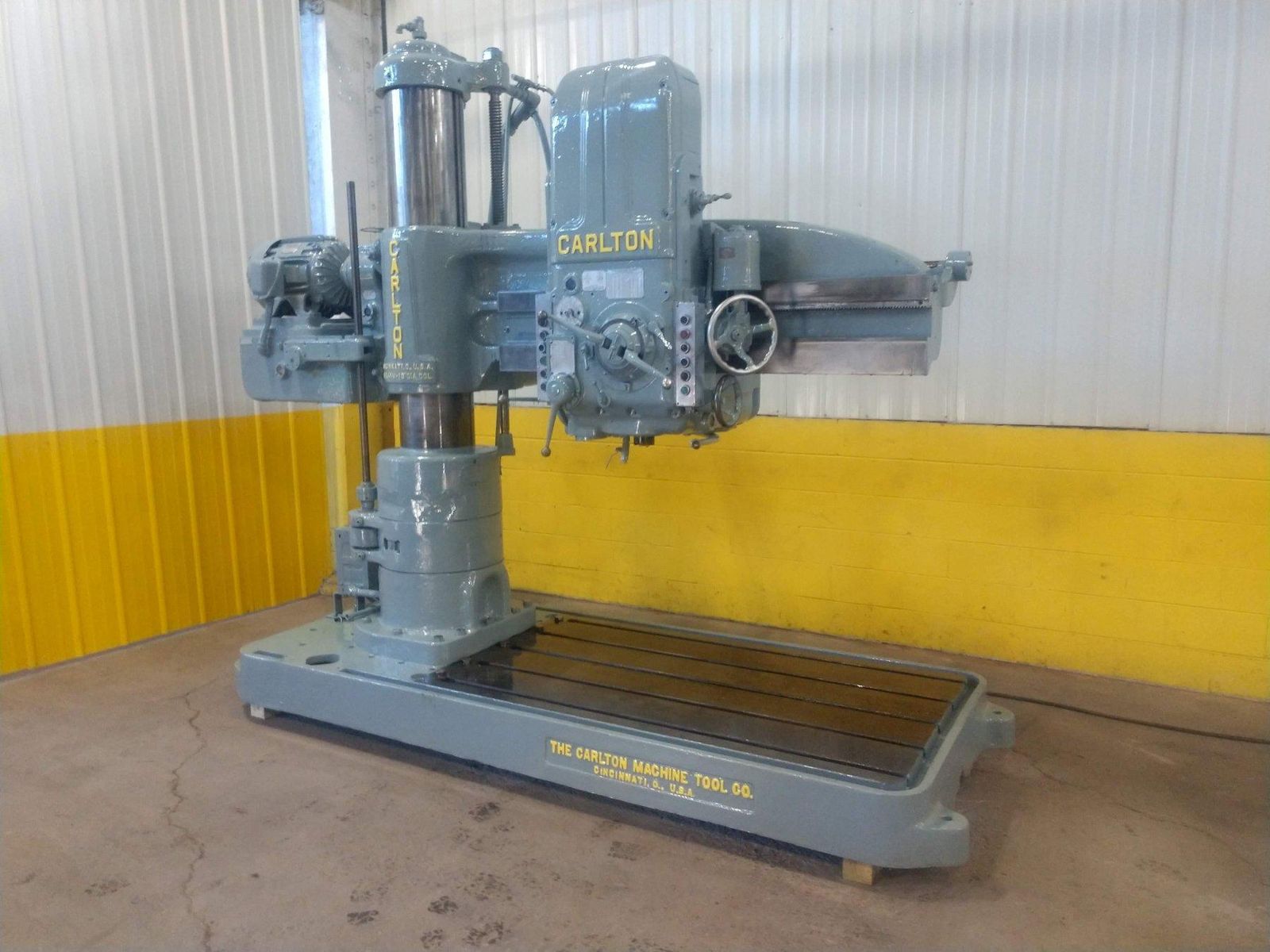

5' X 13" CARLTON MODEL #3A RADIAL DRILL: STOCK #20373

Brand
CARLTON

Type
Drills, Radial

Stock No.
20373

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

5' X 13" CARLTON MODEL #3A RADIAL DRILL: STOCK #20373

Stock #: 20373

Equipped With

SERIAL ....................... 3A3859

MODEL ........................ 3A
AREA OF BASE ................. 65" X 42"
SPINDLE SPEEDS ............... (36) 12 TO 1200 RPM
FEEDS ........................ (18) .004 TO .125 IPR
TAP LEADS .................... 8 - 11-1/2 - 14 - 18 TPI
SPINDLE STROKE ............... 18"
SPINDLE DIAMETER ............. 3-3/16"
SPINDLE TAPER ................ #5 MT
MIN SPINDLE CENTER TO COLUMN . 15"
MAX SPINDLE CENTER TO COLUMN . 60"
MIN SPINDLE NOSE TO BASE ..... 10-1/2"
MAX SPINDLE NOSE TO BASE ..... 60"
POWER ELEVATION .............. YES
POWER HEAD TRAVERSE .......... YES
POWER COLUMN CLAMP ........... YES
HEAD CLAMP ................... MANUAL
COOLANT ...................... YES
SPINDLE MOTOR ................ 15 HORSEPOWER
