Machine Information

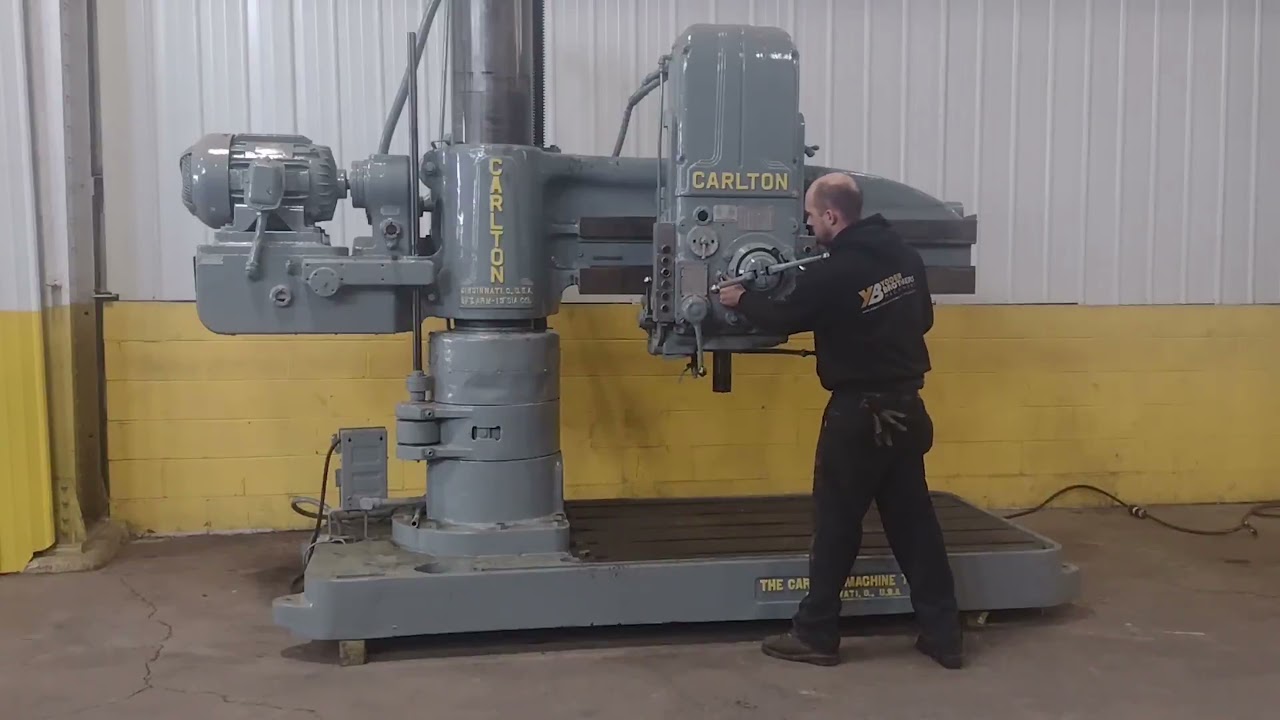

5' X 13" CARLTON MODEL #3A RADIAL DRILL: STOCK 13413

Stock #: 13413

Equipped With

SERIAL ....................... 3A3859
MODEL ........................ 3A
AREA OF BASE ................. 65" X 42"
SPINDLE SPEEDS ............... (36) 12 TO 1200 RPM
FEEDS ........................ (18) .004 TO .125 IPR
TAP LEADS .................... 8 - 11-1/2 - 14 - 18 TPI
SPINDLE STROKE ............... 18"
SPINDLE DIAMETER ............. 3-3/16"
SPINDLE TAPER ................ #5 MT
MIN SPINDLE CENTER TO COLUMN . 15"
MAX SPINDLE CENTER TO COLUMN . 60"
MIN SPINDLE NOSE TO BASE ..... 10-1/2"
MAX SPINDLE NOSE TO BASE ..... 60"
POWER ELEVATION .............. YES
POWER HEAD TRAVERSE .......... YES
POWER COLUMN CLAMP ........... YES
HEAD CLAMP ................... MANUAL
COOLANT ...................... YES
SPINDLE MOTOR ................ 15 HORSEPOWER

Buy Machines

5' X 13" CARLTON MODEL #3A RADIAL DRILL: STOCK 13413

Stock # 13413

Share Machine
Print Details

Machine Specifications

SERIAL ....................... 3A3859

MODEL ........................ 3A
AREA OF BASE ................. 65" X 42"
SPINDLE SPEEDS ............... (36) 12 TO 1200 RPM
FEEDS ........................ (18) .004 TO .125 IPR
TAP LEADS .................... 8 - 11-1/2 - 14 - 18 TPI
SPINDLE STROKE ............... 18"
SPINDLE DIAMETER ............. 3-3/16"
SPINDLE TAPER ................ #5 MT
MIN SPINDLE CENTER TO COLUMN . 15"
MAX SPINDLE CENTER TO COLUMN . 60"
MIN SPINDLE NOSE TO BASE ..... 10-1/2"
MAX SPINDLE NOSE TO BASE ..... 60"
POWER ELEVATION .............. YES
POWER HEAD TRAVERSE .......... YES
POWER COLUMN CLAMP ........... YES
HEAD CLAMP ................... MANUAL
COOLANT ...................... YES
SPINDLE MOTOR ................ 15 HORSEPOWER
