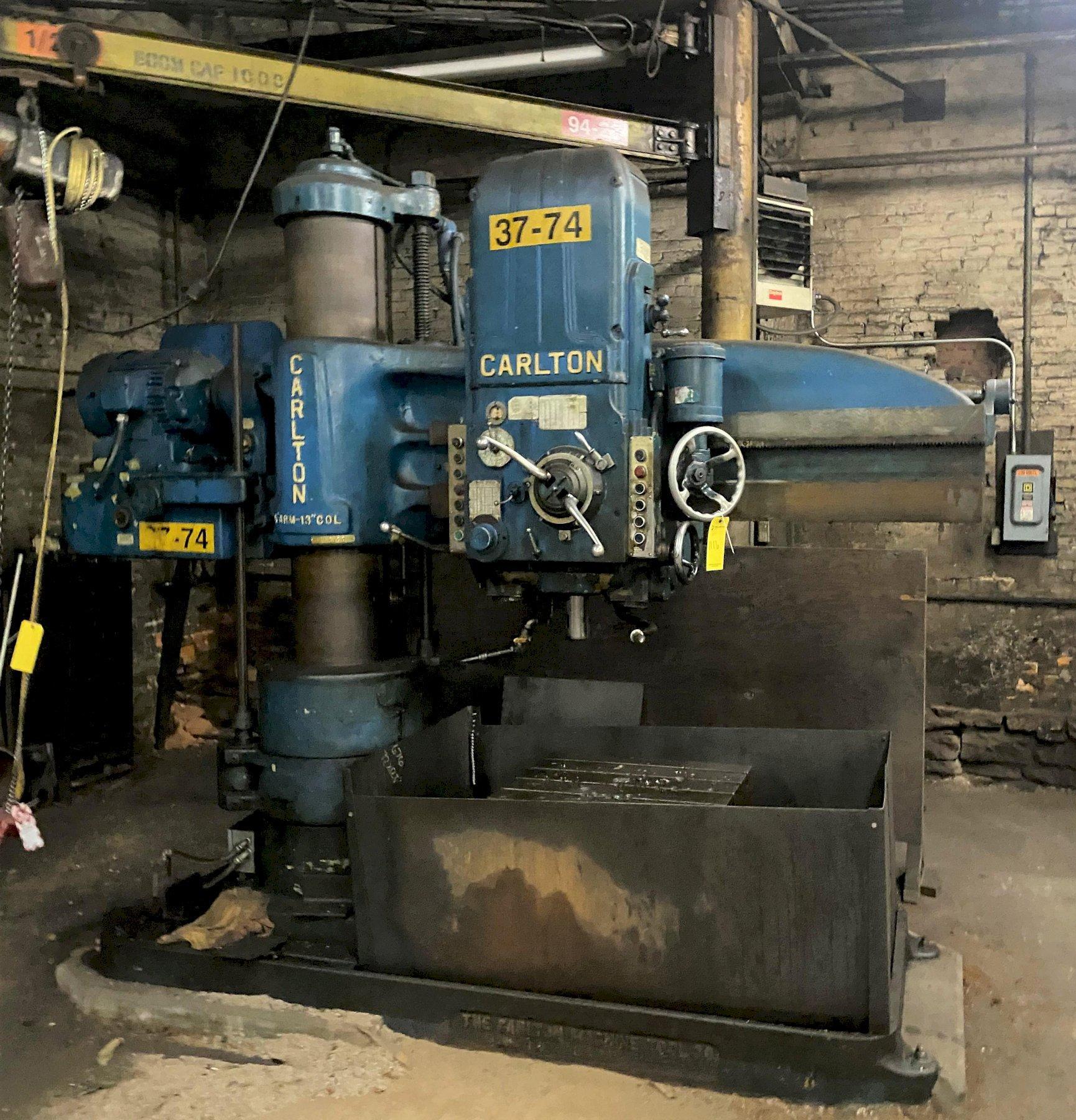

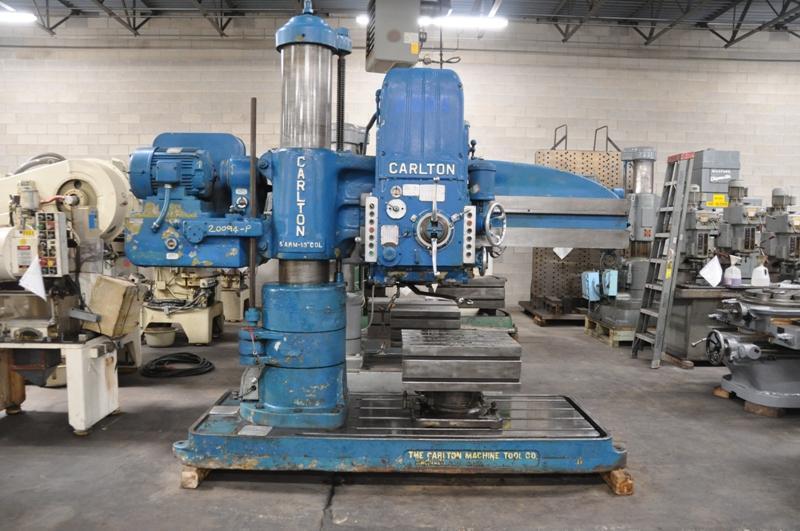

5' X 13" CARLTON MODEL #3A RADIAL ARM DRILL: STOCK 13408

Stock #: 13408

Equipped With

SERIAL ..................................... 3A-4767
MODEL ...................................... 3A
YEAR ....................................... 1964
FACE OF COLUMN TO CENTER OF SPINDLE ........ 5" MIN/60" MAX
SPINDLE RADIUS ............................. 26" MIN/71" MAX
SPINDLE TO BASE ............................ 10-1/2" MIN/60" MAX
WORKING SURFACE OF BASE..................... 65" LR x 42" FB
HEIGHT OF BASE ............................. 8"
VERTICAL SPINDLE TRAVEL .................... 18"
SPINDLE DIAMETER ........................... 3-3/16"
SPINDLE TAPER .............................. #5 MORSE
TRAVERSE OF ARM ON COLUMN .................. 31-1/2"
TRAVERSE OF HEAD ON ARM .................... 45"

SPEEDS:
(36) Speeds ................................ 12 to 1200 RPM

(18) Feeds ................................. .004" to .125"
(4) Thread Leads ........................... 8, 11-1/2, 14, 18 TPI

MAIN MOTOR ................................. 15 HP/3PH/60CY/220/440V

EQUIPPED WITH:
POWER CLAMPING OF COLUMN, ARM & HEAD
QUILL DEPTH ADJUSTABLE FEED KICK-OUT STOP
BUILT IN MACHINE WORK LIGHT
RAPID TRAVERSE TO HEAD ON ARM
COOLANT PUMP & PIPING
BOX TABLE
15 HP MAIN MOTOR
WIRED FOR 3PH/60CY/220/440Vhase
CURRENTLY WIRED @ 220V
