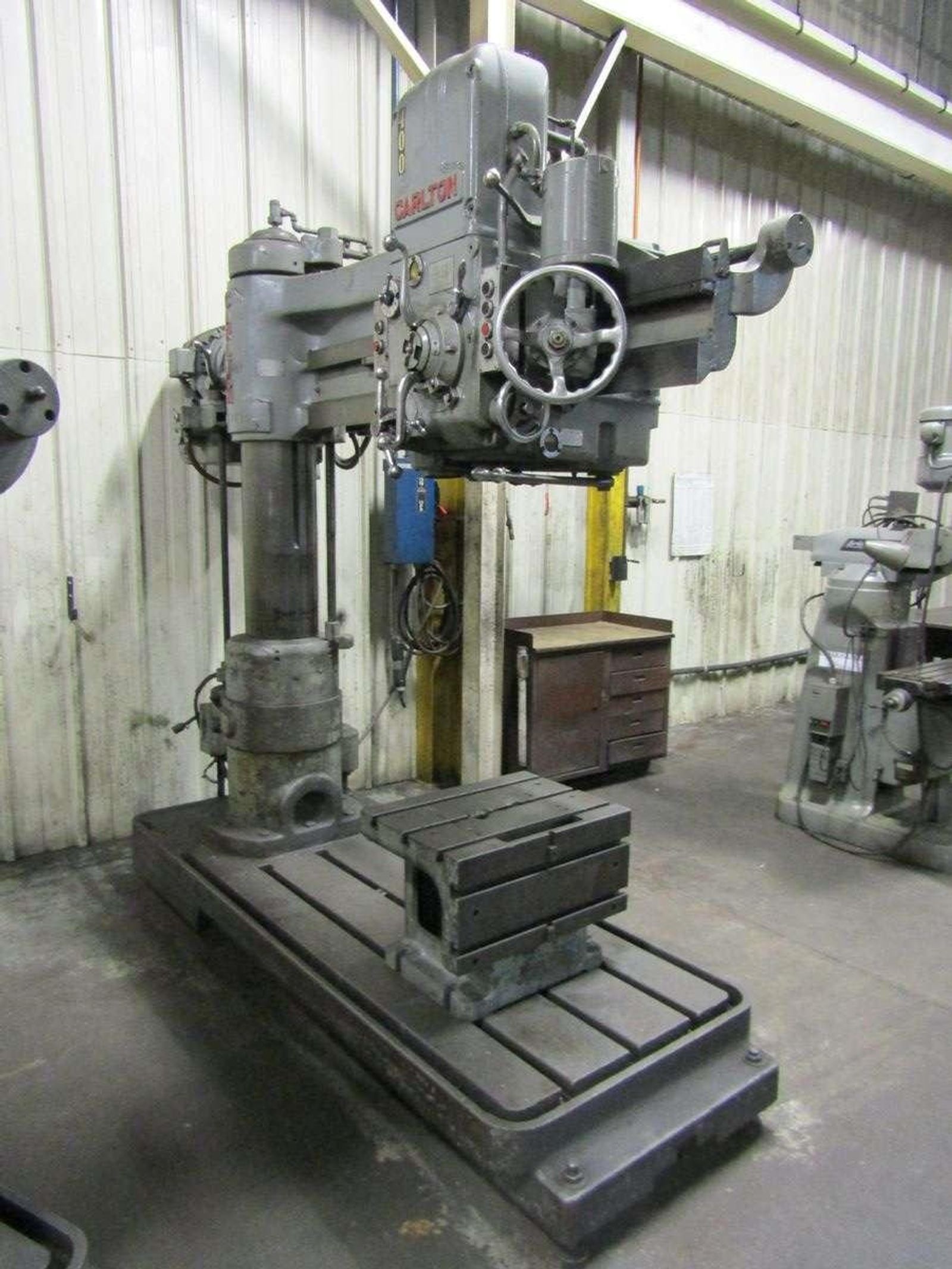

SERIAL .................... 1A-3429
Model ..................... 1A
ARM LENGTH ................ 5'
COLUMN DIAMETER ........... 11"
HEAD TRAVEL ............... 60"
VERTICAL COLUMN TRAVEL .... 29"
SPINDLE STROKE ............ 12"
SPEEDS .................... 60 TO 1500 RPM
SPINDLE TAPER ............. #4 MT
POWER ELEVATION ........... YES
CLAMPING .................. POWER
HEAD TRAVERSE ............. POWER
HEAD CLAMPING ............. MANUAL
COOLANT ................... YES
MOTOR ..................... 7.5 HP
| Specifications | ||
|---|---|---|
| Arm Length | 60 inches | |
| Column Dia. | 11 inches | |
| Power | 7.5 horsepower | |
| RPM | 1500 | |
Brand
CARLTON
Type
Drills, Radial
Stock No.
10216
 |
419-269-2000 |
Stock #: 10216
SERIAL .................... 1A-3429
Model ..................... 1A
ARM LENGTH ................ 5'
COLUMN DIAMETER ........... 11"
HEAD TRAVEL ............... 60"
VERTICAL COLUMN TRAVEL .... 29"
SPINDLE STROKE ............ 12"
SPEEDS .................... 60 TO 1500 RPM
SPINDLE TAPER ............. #4 MT
POWER ELEVATION ........... YES
CLAMPING .................. POWER
HEAD TRAVERSE ............. POWER
HEAD CLAMPING ............. MANUAL
COOLANT ................... YES
MOTOR ..................... 7.5 HP
